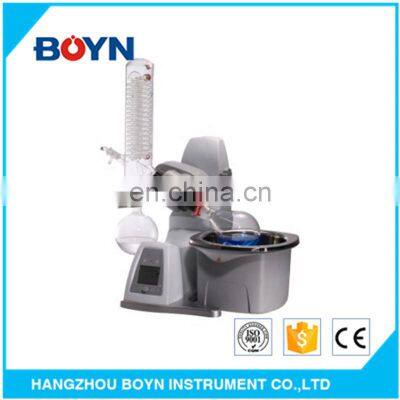

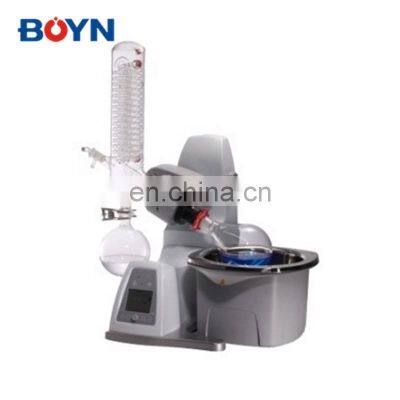

RE100-Pro Laboratory 1L Automatic LCD digital Rotary Evaporator

Features
- Easy to read large digital LCD screen displays heating temperature, rotation speed and timing
- Speed range from 20 to 280 rpm
- Large 5L water-oil heating bath with heating temperature range of RT to 180°C
- Heating bath with precise temperature control and adjustable safety circuit
- Designed a detachable operating panel allows remote control
- Patented condenser(cooling surface 1,500 cm²) with excellent cooling effect
- Motorized lift with quick-action, automatic release evaporating flask to top position in case of power failure
- Adjustable final position recognition to protect operator and sample against breakage
- Evaporating flask with an ejector, convenient to remove
- Available with timer function to precise control processing
- Chemical-resistant double PTFE system and patented pressure spring provide excellent sealing
- PC can control and document all parameters via USB
Specification
|
Rotary Bottle |
1L |
|
Collecting Bottle |
1L |
|
Display |
LCD |
|
Rotating Speed |
20-280 rpm |
|
Temperature Range |
RT-180℃ |
|
Temperature Control Accuracy |
±1℃ |
|
Lift |
Motor |
|
Stroke Height |
150mm |
|
Timing Range |
1-999 min |
|
Power |
1400 W |
|
Motor |
DC brushless motor |
|
Rotation |
Reversible Direction |
|
External Size (D*W*H) |
457*465*583 mm |
|
Net Weight |
15 kg |
|
Interface |
|
|
Power Supply |
110/220V,50/60Hz |
|
Gross weight |
40Kg |
|
Packing size |
110*60*65mm |
|
Standard Accessory |
1L Rotary bottle*1, 1L Collecting bottle*1 |
|
Optional Accessory |
Vacuum pump, Recirculating chiller |
