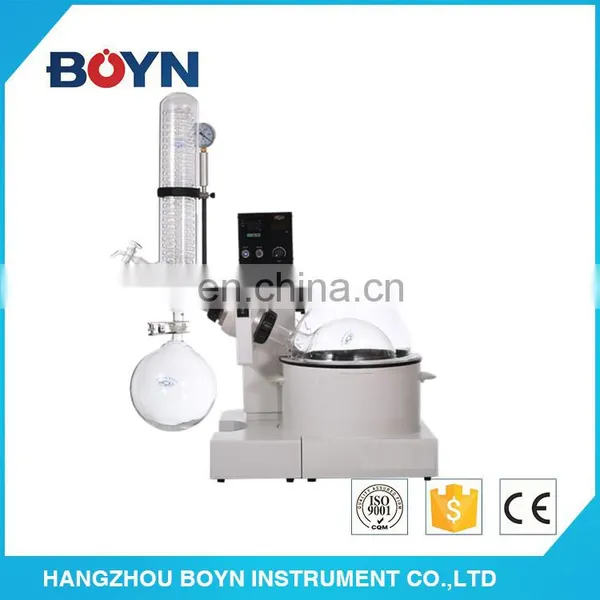

SY-5000A, 5L Muitl-function Vacuum Rotary Evaporato
1.Function
1) Rotary evaporator use rotary evaporation bottle (flask) enlarge evaporating area, under reduced pressure condition, set evaporation flask in water bath to heating and at the same time flask keep rotating, so as to make solution in flask diffusion and evaporating.
2) Rotary evaporator is an idea laboratory instrument for concentration, drying and recycle, widely used in chemical industry, pharmaceutical industry, university and scientific research laboratory, etc.
2) Beautiful design, structure is reasonable and compact, simple and easy operation, precise temperature control and eliable performance. Besides, strong and durable are also its important advantages.
3) SY-5000 rotary evaporator water bath is also could be used as oil bath, temperature range is RT-180℃, if temperature is higher than you set temperature, heating tube stop heating automatic. This type water bath’s volume is small, so temperature rising is rapid.
4) Heating bath is equiped with air duct type cooling device and use tef/lon composite bath, easy and convenient cleaning.
|
Technical parameters |
|
|
Model |
SY-5000A |
|
Host |
Rocker plate type buttons , automatic lifting 0-150mm |
|
Vacuum degree |
< 399.9Pa(3mmHg) |
|

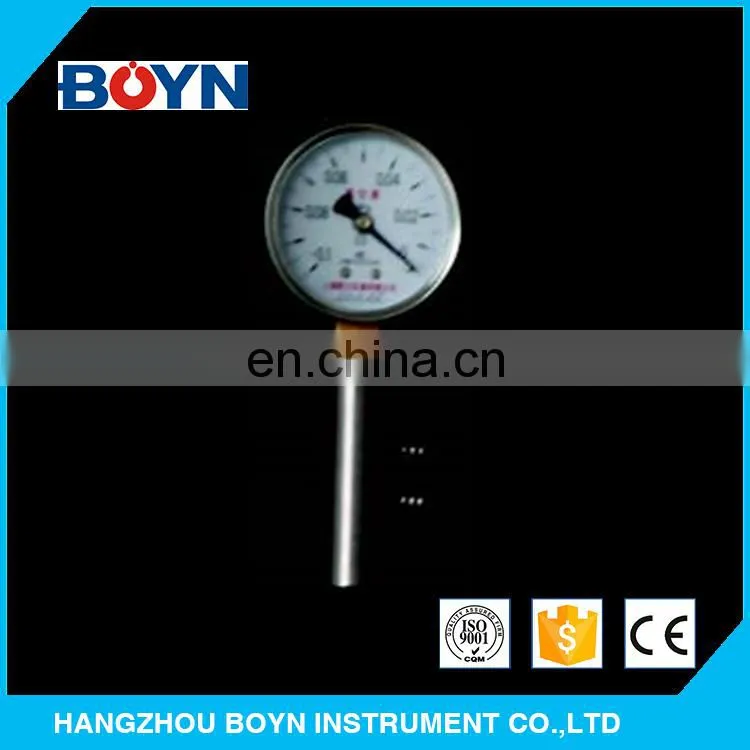

Vacuum degree display meter |
When vacuum degree reach lowest, close valve and keep display rotary evaporator vacuum degree, reduce laboratory noise, prolong vacuum pump service life. |
|
Evaporation capacity |
Max.43ml/min |
|
Rotation speed |
Rotating speed digital display, rotary knob type step-less speed adjustable: 0-200 rpm/min;Power 40W |
|
Heating bath |
Equiped with air duct type cooling device,tef/lon composite bath φ290×170mm , whole closed heating device, power 1.8KW |
|
Temperature |
Automatic control temperature, digital display, water bath, RT-90℃±1℃;oil bath: RT-180℃±3℃. |
|
Condenser |
Vertical type, high temperature resistance, excellent quality glass double reflux integration, ball milling mouth, condenser cooling area 0.41m2. |
|
Material charging |
Valve type material charging tube, connect with PTFE tube and retaining water circle. |
|
Sealing ring |
Fluororubber + PTEF vacuum seal washer. |
|
Capacity range |
0.25--5L |
|
Power |
2kw Input voltage~220v/50Hz |
|
Volume / Weight |
78×69×85CM 42kg |
|
Standard configuration |
S35 ball milling mouth, 3L collection flask 1pcs, 29# standard mouth evaporation flask 1L,(flask mouth F50)5L each 1pcs |
