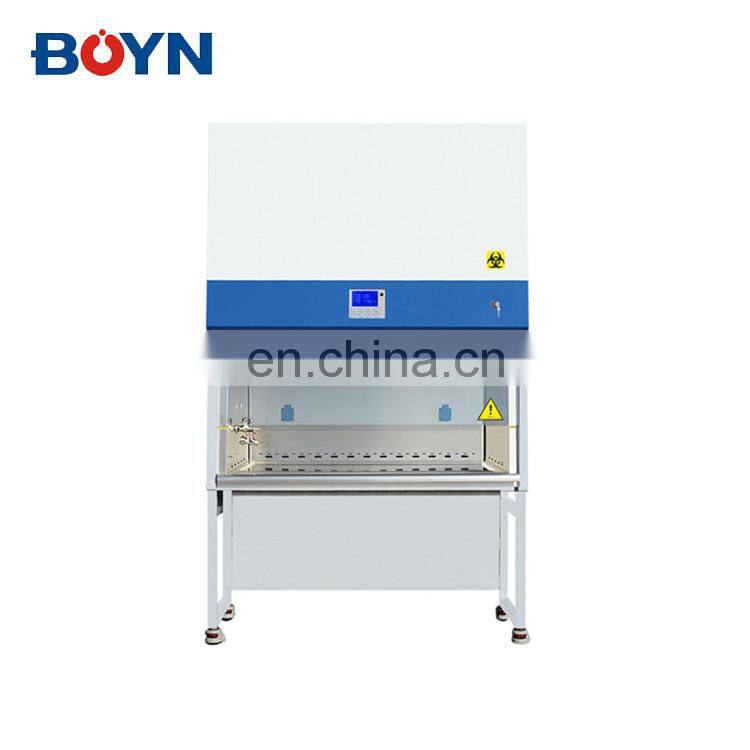

Class II A2 Biological Safety Cabinet BSC SERIES

Model

BSC-1100IIA2-X

BSC-1300IIA2-X

BSC-1500IIA2-X

BSC-1800IIA2-X

BSC-2000IIA2-X

Internal Size

(W*D*H)

940* 600*660 mm

1150*600*660 mm

1350*600*660mm

1710*600*660 mm

1800*600*660mm

External Size

(W*D*H)

1100*750*2250mm

1300*750*2250mm

1500*750*2250mm

1870*750*2290mm

1950*800*2305mm

Tested Opening

Safety Height = 200 mm

Max Opening

420mm(17’’)

420mm(17’’)

500mm(20’’)

550mm(22’’)

400mm(16’’)

Inflow Velocity

0.53±0.025 m/s

Downflow Velocity

0.33±0.025 m/s

HEPA Filter

Two, 99.999% efficient at 0.3 um. Filter life indicator.

Front Window

Motorized. Two-layer laminated toughened glass ≥ 5mm. Anti UV.

Noise

EN12469 ≤ 58 dB / NSF49 ≤ 61 dB

UV Lamp

30W*1

30W* 1

40W* 1

40W*1

40W* 1

UV timer, UV life indicator, emission of 253.7 nanometers

for most efficient decontamination.

Illuminating Lamp

LED Lamp

12W*2

12W*2

16W*2

16W*2

16W*2

Illumination

≥1000Lux

Consumption

760W

800W

900W

900W

1500W

Waterproof Sockets

Two, total load of two sockets: 500W

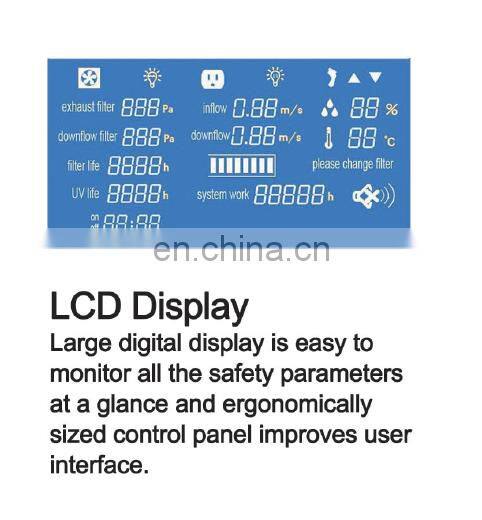

Display

LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc.

Control System

Microprocessor

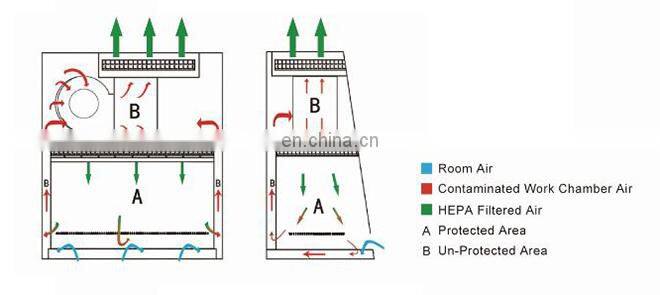

Airflow System

70% air recirculation, 30% air exhaust

Visual and audio alarm

Filter replacement, window over height, abnormal air flow velocity.

Material

Work Zone: 304 stainless steel

Main Body: Cold-rolled steel with anti-bacteria powder coating.

Work Surface Height

750mm

Caster

Footmaster caster

Power Supply

AC220V±10%, 50/60Hz; 110V±10%, 60Hz

Standard Accessory

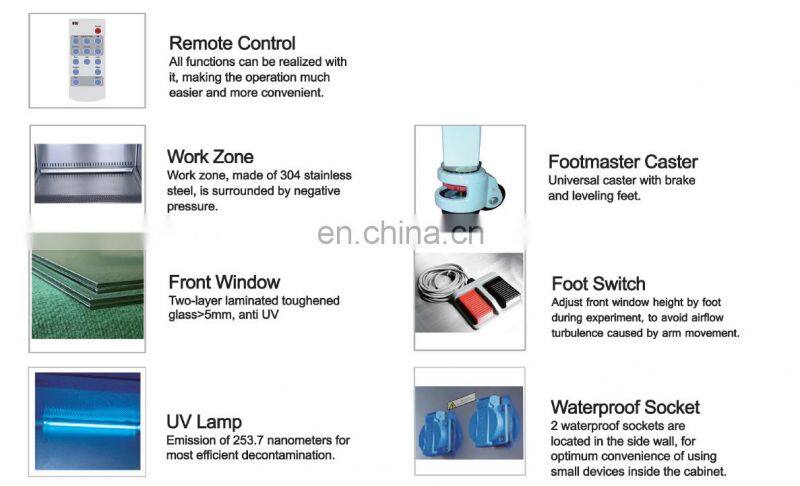

LED lamp*2, UV lamp*2, Base stand, Remote control, Foot switch, Drain valve, Waterproof sockets*2

Optional Accessory

Water and gas tap, Electric height adjustable base stand.

Gross Weight

243kg

280kg

316kg

395kg

420kg

Package Size

(W*D*H)

1220× 1000× 1840 mm

1460*1050*1800 mm

1630*1000*1820 mm

2000*950*1820 mm

2090*1050*1860 mm
