ASSEMBLY
The MD3080N requires very little assembly. Unpack it carefully and save the carton as it may come in handy for future storage or shipment.
1. Remove the headphone, handle and search coil from the shipping carton. Be careful not to damage the foam rubber inserts or put any strain on the cable connections.

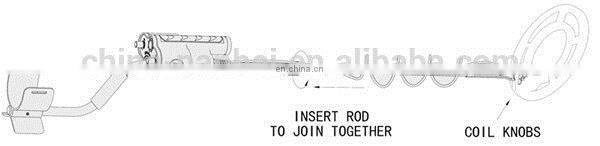

2. Adjust the stem to the approximate length.For stand-up use, extend the stem leaving at least 1 inch ground clearance.For diving,the stem’s length should be as short as possible.Pls follow the diagram belowed to connect the two parts of the stem and screw to locking sleeve firmly.
3. If you will be using the MD3080N with the handle and not body mounted, wind the search coil cable around the handle as shown in the diagram above. Secure the cable, making sure there is enough slack at both the control housing end and the other end to attach to the search coil.
4. Remove the Delrin bolt and nylon wing nut from the search coil. Line up the hole in the stem between the two holes in the search coil "ears". Attach the coil to the stem with the bolt and wing.

SETTING UP
FOR LAND OR SHALLOW WATER
Put the headset around your neck to keep it out of the way while making the following adjustments.
1. Adjust the length and coil angle so that the search coil rests flat on the ground about 6-inches in front of, and slightly to the right of your right foot (to the left of your left foot for left handed). Your arm should be straight and relaxed with the handle grip held firmly yet comfortably. Remember, as you increase the shaft length, you also increase the strain on your wrist and arm. The MD3080N is balanced for comfortable searching in a tight semicircle around the front of the operator.
2. Leave enough slack in the coil cable to allow the coil to swivel as far as it can in either direction. The coil wing nut should be tight enough to prevent the coil from moving.
3. You should now be able to move into your “search” position by leaning slightly forward and raising the search coil approximately 1 inch above the ground. Your arm should still be straight and the coil should be parallel to the ground, about 12 inches in front of your foot. The coil angle may have to be slightly readjusted at this point.

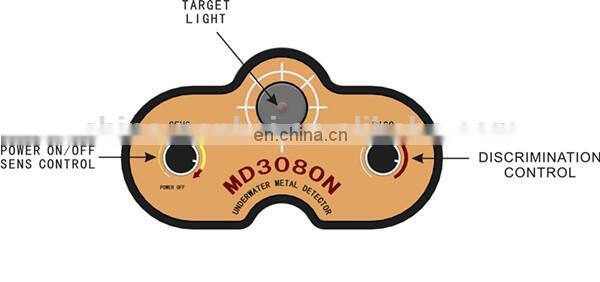

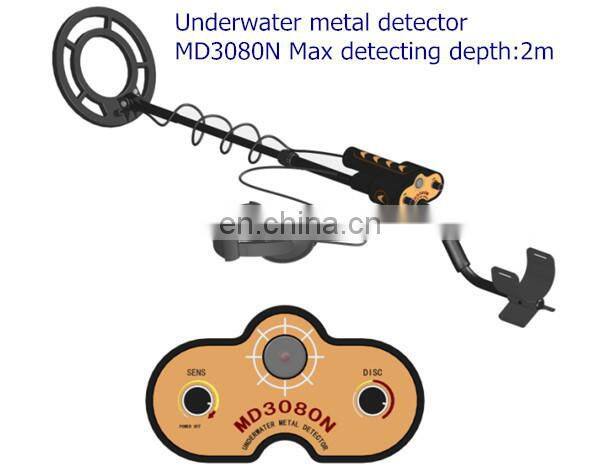

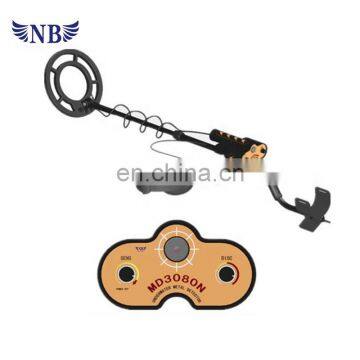

MD3080N
