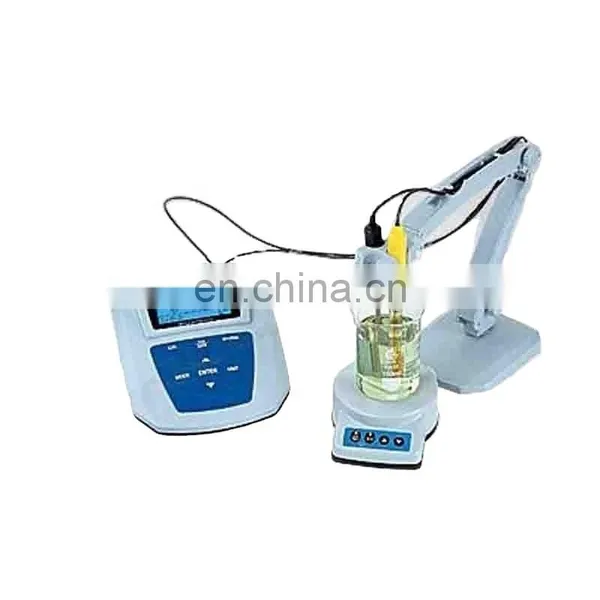

Hot Sale MP523 pH/ISE Meter
Introduction
|
Meter meets with the requirement of international GLP standards. Its features up to automatic calibration, automatic temperature compensation, data storage, timing measurement, clock display, RS-232 output, function setting and self-diagnose etc. |
| There are three different measurement modes: stable display mode; time measurement mode; continuous measurement mode. |
| Automatically recognize 13 kinds of pH buffer solution. User can choose anyone from four series of standard buffer solutions: Europe & USA series, NIST series, CHINA series and Self-defined series |
| High purified water and ammonia added purified water pH measuring mode can be set up, especially suitable for electric power and petrochemical industry |
| With EH redox potential measuring mode can directly display ORP value which against standard potential of hydrogen electrode. |
| There are 10 kinds of common ions can be selected in the ion concentration measuring mode, user also can self-define other ions. |
| Can switch 4 kinds of concentration unit : pX, mol/L, mg/L and ppm. |
| Meter has the only product serial number. |
| Dustproof and waterproof meter meets IP54 standards. All sockets are seal protected by the silica gel caps. |
Specifications
|
pH |
Measuring range Resolution Accuracy Input current Input impendance Stability Temp. compensation range |
(-1.999 ~ 19.999)pH 0.1/0.01/0.001 pH Meter:±0.002 pH, connect meter with electrode:±0.01pH ≤1×10-12 A ≥3×1012 Ω ±0.002 pH/3h (0 to 100) °C(automatic or manual) |
|
mV |
Measuring range(mV/ORP/EH) Resolution Accuracy |
-1999.9mV ~ 0 ~ 1999.9mV 0.1mV ±0.03% FS |
|
Ion Concentration |
Measuring range Display unit Accuracy Temp. compensation range |
0.00 ~ 14.00 pX pX,mol/L,mg/L,ppm Meter:±0.5 % reading(monovalent), ±1.0 % reading (bivalent) 0 to 60 °C(automatic or manual) |
|
Temperature |
Measuring range Resolution Accuracy |
-10°C~ 110°C 0.1°C 5~ 60°Crange:±0.4°C other range:±0.8°C |
|
Other Technical Parameters: |
Data storage Storage content Power Communication connector Size and weight Quality and safety certification |
300 groups Measuring value series number, measuring value, temperature, ATC or MTC state, measuring date and time DC9V/300mA RS232 160 × 190 × 70mm/880g ISO9001:2008, CE and CMC |
|
Working Condition |
Environment temperature Environmental humidity IP rating |
5 ~ 35 °C(0.01grade) 15 ~ 30 °C(0.001grade) ≤75% IP54 Dustproof and waterproof |
Standard Kit Includes
|
1. Model MP523 pH/ISE meter |
1set |
|
2. Model 602 flexible electrode holder |
1pc |
|
3. Model 901 intelligent stirrer |
1set |
|
4. 201T-M plastic pH/ATC three-in-one combination electrode |
1pc |
|
5. 2503-C glass pH combination electrode |
1pc |
|
6. MP500 temperature electrode |
1pc |
|
7. Model 6213 double salt bridge reference electrode |
1pc |
|
8. pH standard buffer solution(pH4.00, pH7.00 and pH10.01/50mL) |
1btl/each |
|
9. 9V power adapter(meter use) |
1pc |
|
10. 6V power adapter(stirrer use) |
1pc |
|
11. B628 stirring bead |
3pc |
|
12. AA battery |
4 units |
|
13. RS-232 communication cable |
1pc |
|
14. MP523 communication software disk |
1pc |
|
15. Operation manual |
1unit |
|
16. Brief operation instruction |
1unit |
|
17. Packing List |
1pc |
Certificate
After-Sale Service
Please feel free to contact us for more details! Thanks
