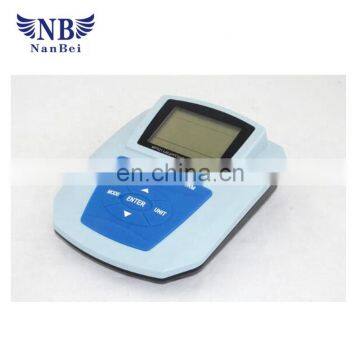

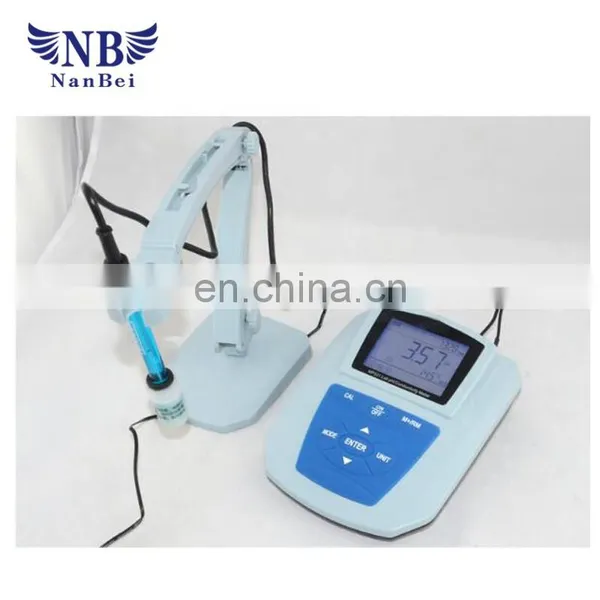

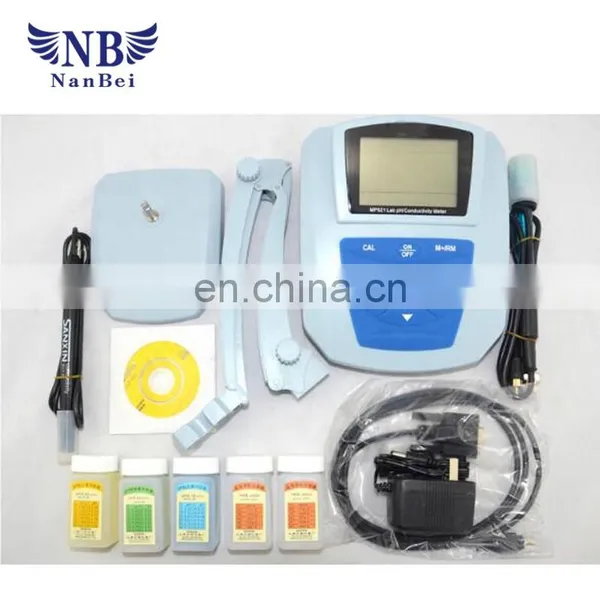

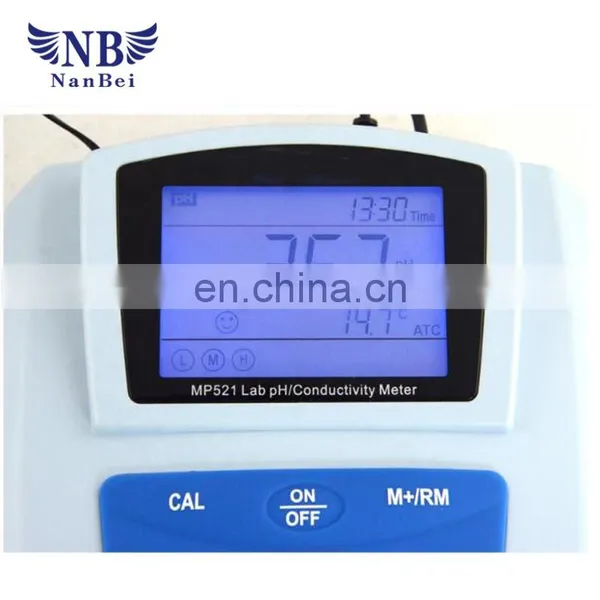

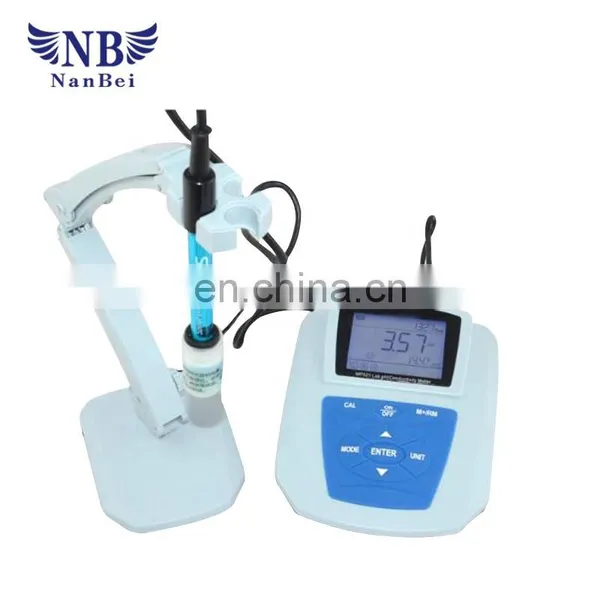

The most widely used pH + Conductivity Double-Parameter measurement meter.

pH

Measuring range

Resolution

Accuracy

Input current

Input impendance

Stability

Temp. compensation range

(-1.99 ~ 19.99)pH

0.1/0.01/0.001 pH

Meter:±0.01pH, connect meter with electrode:±0.01pH

≤1×10-12 A

≥3×1012 Ω

±0.01 pH/3h

(0 to 100) °C(automatic or manual)

mV

Measuring range(mV/ORP/EH)

Resolution

Accuracy

-1999.9mV ~ 0 ~ 1999.9mV

0.1mV

±0.03% FS

Conductivity

Measuring range

Resolution

Accuracy

Temp. compensation range

Electrode constant

Reference temperature

Conductivity:(0.00~20.00)μS/cm (20.0~200.0)μS/cm

(200~2000)μS/cm  (2.00~20.00)mS/cm

(20.0~200.0)mS/cm

Resistivity:(0 ~ 100)MΩ·cm

TDS:  (0 ~ 100)g/L

Salinity: (0 ~ 100)ppt

0.01/0.1/1μS/cm  0.01/0.1/1 mS/cm

Meter:±1.0% FS,connect meter with electrode:±1.5% FS

(0 ~ 50)°C(automatic )

0.1 / 0.5 / 1 / 5 / 10 / 50 / 100  cm-1

25°C,20°C and 18°C

Temperature

Measuring range

Resolution

Accuracy

-10°C~ 110°C

0.1°C

5~ 60°Crange:±0.4°C  other range:±0.8°C

Other Technical Parameters:

Data storage

Storage content

Power

Communication connector

Size and weight

Quality and safety certification

300 groups

Measuring value series number, measuring value, temperature, ATC or MTC state, measuring date and time

DC9V/300mA

RS232

160 × 190 × 70mm/880g

ISO9001:2008, CE and CMC

Working Condition

Environment temperature

Environmental humidity

IP rating

5 ~ 35 °C(0.01grade) 15 ~ 30 °C(0.001grade)

≤75%

IP54 Dustproof and waterproof
