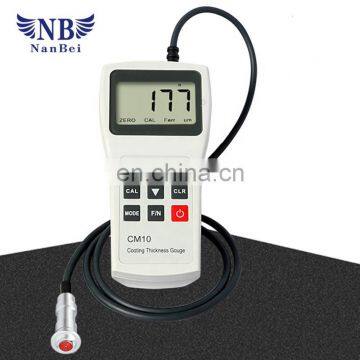

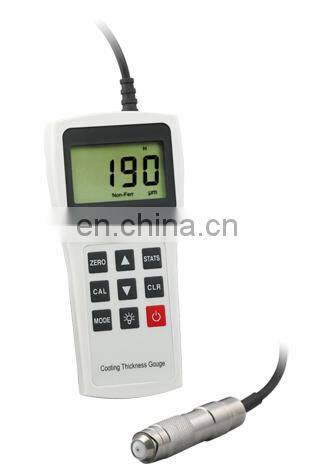

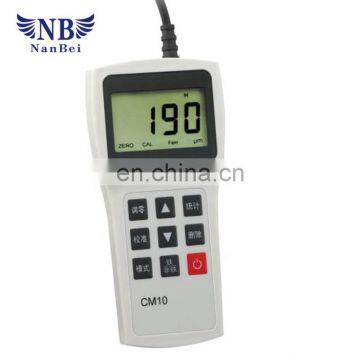

Galvanic Coating Thickness Gauge with Eddy Current and Magnetic Method
CM10 Series-Specification
Measuring principle: Magnetic Method (Fe)& Eddy Current Method (NFe):
Magnetic Method (Fe): Measuring the thickness of non- magnetic coatings on steel, iron and other ferromagnetic metal substrates, e.g. painting, varieties of anti-corrosion coating, powder spraying, plastic,rubber, synthetic material, phosphate coating, chromium, zinc, Aluminum, tin and cadmium, etc.
Eddy Current Method (NFe): measuring the thickness of non-conductive coatings on copper, aluminum, stainless steel and other non-ferromagnetic substrates, e.g. painting, varieties of anti-corrosion coating, powder spraying, plastic, rubber, synthetic material, oxide film and phosphate film, etc.
Specification:
Model | CM10F | CM10N | CM10FH | |
Measuring Principle | Magnetic Method | Eddy Current | Magnetic Method | |
Measuring Range(μm) | 3000-0 | 2000-0 | 10000-0 | |
Low Range Sensitivity(μm) | 0.1 | 0.1 | 1 | |
Tolerance(μm) | ±(2%H+2) | ±(2%H+2) | ±(2%H+10) | |
Testing | Min. Curvature | 1.5 | 3 | 10 |
Radius | ||||
Condition | Min.Measuring | 7 | 5 | 40 |
Surface | ||||
(mm) | Min. Substrate | 0.5 | 0.3 | 2 |
Thickness | ||||
Display | High Contrast Segment Liquid Crystal Display (LED Backlight) | |||
Statistics | N, MAX, MIN, MEAN and STD.DEV | |||
Calibration | One-Point Calibration and Two-Point Calibration | |||
Working Temperature | -10℃~+50℃, -20℃ in special requirement | |||
Auto Power-off | Auto off after 3 minutes of inactivity | |||
Power | 2AA size batteries, low-voltage indication function | |||
Weight | 200g including batteries | |||
Size | 149mm×73mm×32mm (H×W×D) | |||

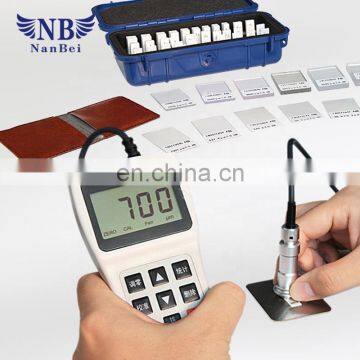

Configuration:
Standard Configurations | Optional Configurations |
CM10 Series Coating Thickness Gauge | Calibration foils |
Calibration foils | Fe Zero plate |
Zero Plate(Fe/Al) | Al Zero plate |
Communication Software & Cable |
|
Sealed Carrying Case |
|
Operating Manual, Packaging List. etc |
Certificate
After-Sale Service
