Popular Automatic Calibration SYD-261A Pensky-Martens Closed Cup Flash Point Tester

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

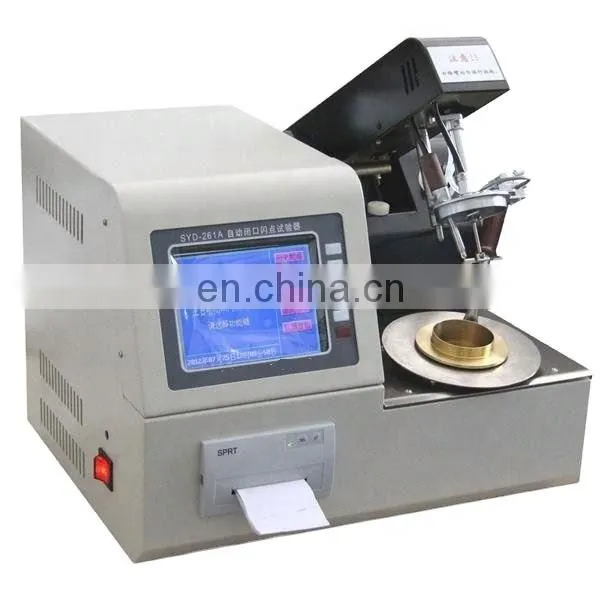

SYD-261A Automatic Pensky-Martens Closed Cup Flash Point Tester

Our Product

Summary

This instrument is designed and manufactured as per standards GB/T 261-2008 Determination of Flash Point - Pensky-Martens closed cup method and ASTM D93 Standard Test Methods for Flash Point by Pensky-Martens Closed Cup Tester. It is used to make determination of the closed cup flash point of the petroleum products.

Main technical features

1. Simulation tracking displays function curves of heating up and test time.

2. Equipped with the English prompt function of mis-operation.

3. Equipped with prompt function of test date,test time and other parameters.

4. Automatically calibrate the effect of atmospheric pressure to test and calculate the corrected value.

5. Differential coefficient detection.Automatically correct the system deviation.

6. Automatically open the lid,detect the flash point and print test data.

7. The test arm rises up and lowers down automatically.

8. Igniting with electric igniting gun,forced air cooling.

Main technical specifications

Power supply	AC(220±10%)V, 50Hz.
Temperature measurement	Range: Room temperature~300°C
	Repeatability: ≤ 2°C
	Reproducibility: ≤ 4°C
	Accuracy: 0.1°C
Heating rate	Procedure A: (5~6)°C/min
	Procedure B: (1~1.6)°C/min
	Automatic control and manually adjustable
Stirring rate	(1) Procedure A: (90~120)RPM
	(2) Procedure B: (250±10)RPM
	Automatic control and manually adjustable.
Igniting mode	(1) Igniting source: gas(or other civilian fuels,the same below)
Igniting mode	(2) Electric ignition. Gas flame diameter: 3.2mm~4.8mm
Ambient temperature	≤ 40°C
Relative humidity	≤ 80%
Maximum power consumption	350W
