Product Description

full-Automatic Microplate Washer

Product introduction：

fully automatic microplate washer is controlled by microcomputer to wash 48 well and 96 well microplate in experiments of Enzyme Linked Immunosorbent Assay (ELISA), Time-Resolved Immunofluorometric Assay (TRFIA) and Chemiluminescence, which are widely used in clinical diagnostic laboratories, centers for disease control and prevention, animal and plant quarantine, animal husbandry and veterinary epidemic prevention stations, biotechnological industries, food industries, environmental science, agricultural scientific research and other academic organizations.

Features

Efficiency ----2 Microplates alternative, washing 2 microplates within 1 minute. Reliability ---- Special Washer manifolds design and anti-clogging technology can avoid cross-contamination and blocking. Regulatory compliance ---- Meet the IVD-directive 98/79/EC for Europe, CE certified. Convenience ---- Easy to maintain and operate. Detailed features ---- Our profession makes it easy to use. Uniform dispensing, low residual volume Professional design of washer manifold’s interior double tanks can keep water pressure uniform. Dispense precision CV<1.5%. Aspirating in multi-positions can guarantee low residual volume<0.7ul.

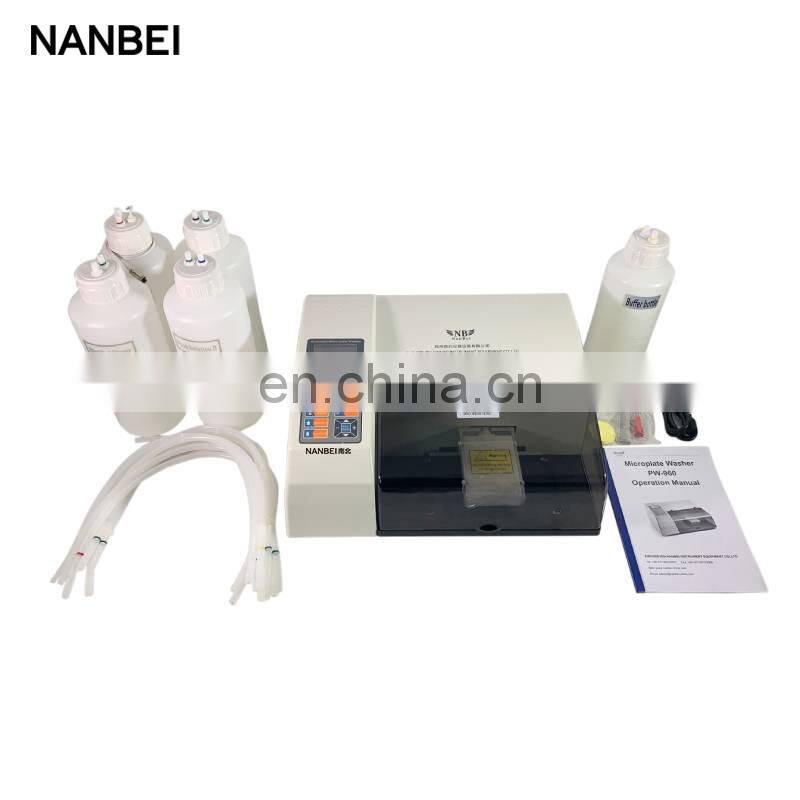

More Details Photos

Specification

Model	PW-960
Wash head types	microplate 12 line×8 well and 8 line×12 well are available
Dispense uniformity	CV < 1.5%
Wash times	1 to 99 times adjustable
Wash lines	whole plate or 1-12 lines random combination
Wash mode	Single plate, double plates or multi-plates
Dispensing volume	50-950 μl, interval 50 μl adjustable (May extend to 0-6000 μl interval 25 μl adjustable)
Wash speed	5 seconds/plate, 140 plates /hour
Soaking time	0 to 999 seconds adjustable
Shaking time	0 to 999 seconds adjustable
Aspirating time	0.1-99.9 seconds adjustable, interval 0.1second
Microplate positions	plate A and plate B
Residual volume	<0.7μl /well
Wash head positions adjustable	horizontal, left, right, middle, bottom, interval of plates
Bottle volume	300ml and 4000 ml for solution bottle, 4000 ml for waste water bottle
Power Supply	220V AC ± 30％，50Hz±3 Hz
External Dimensions	53.8cm (21.2 in) × 42.6cm (16.8 in) × 23.0cm (9.1 in) (Height/width/depth)
Net Weight	21kg
Note: 1. There are 3 kinds of devices: PW-960N, PW-960 and PW-960plus. 2. There is only one solution bottle for PW-960N. 3. PW-960 plus with added features: a) Auto discharge function for waste water. b) Water mist catching device keeps vacuum pump dry. 4. Solution bottle/waste water bottle: 300ml, 2000ml, 5000ml, 10L/ 20L

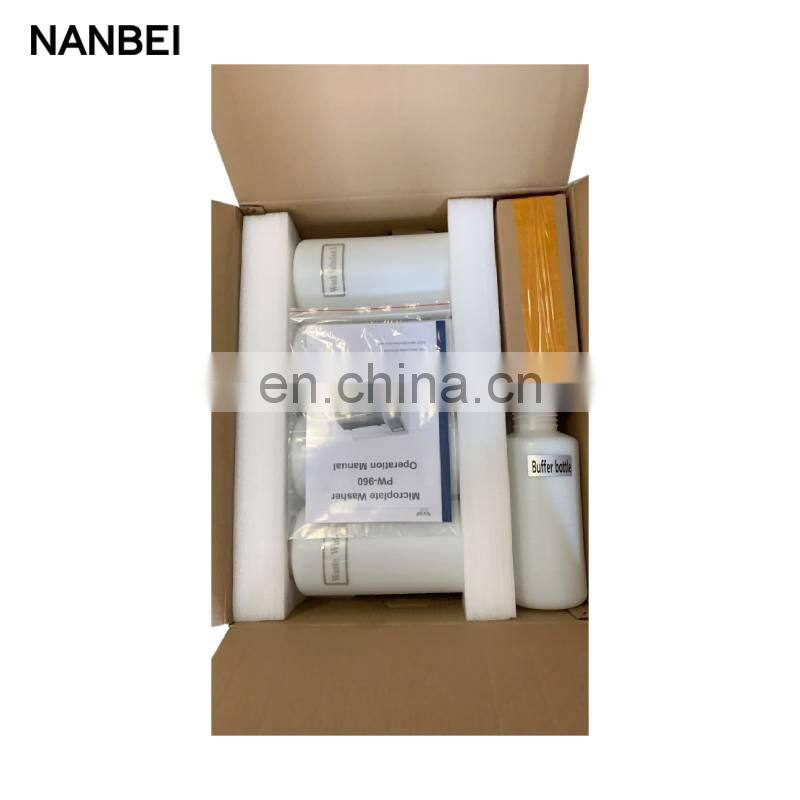

Packing & Delivery

Company Profile

Customer Concerns

FAQ

Q1: Why Choose NANBEI ? (1).Professional manufacturer with more than 13 years experience (2).Exported to more than 97% Countries (3).Turnkey Solution is no problem Q2:OEM,ODM acceptable or not? Absolutely Yes Q3:What's kind of Payment terms for customer choosing? T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ... Q4:Can you visit your factory online? Absolutely no problem Q5:Can online video inspection before shipment? Absolutely no problem Q6: what's the MOQ ? Sample order is OK? MOQ:1 set, sample order is no problem Q7:What's kind of shipment for customer choosing? Usually ship by sea, by air, by international express . We can also provide reasonable solutions according to your transportation requirements Q8:How to ensure product quality and after-sales service? We have CE, ISO quality certificate, and SGS authentication. After-sale service: 1.Warranty : 1 year 2.We supply free part for quality problem in warranty 3.Long life technical support and service
