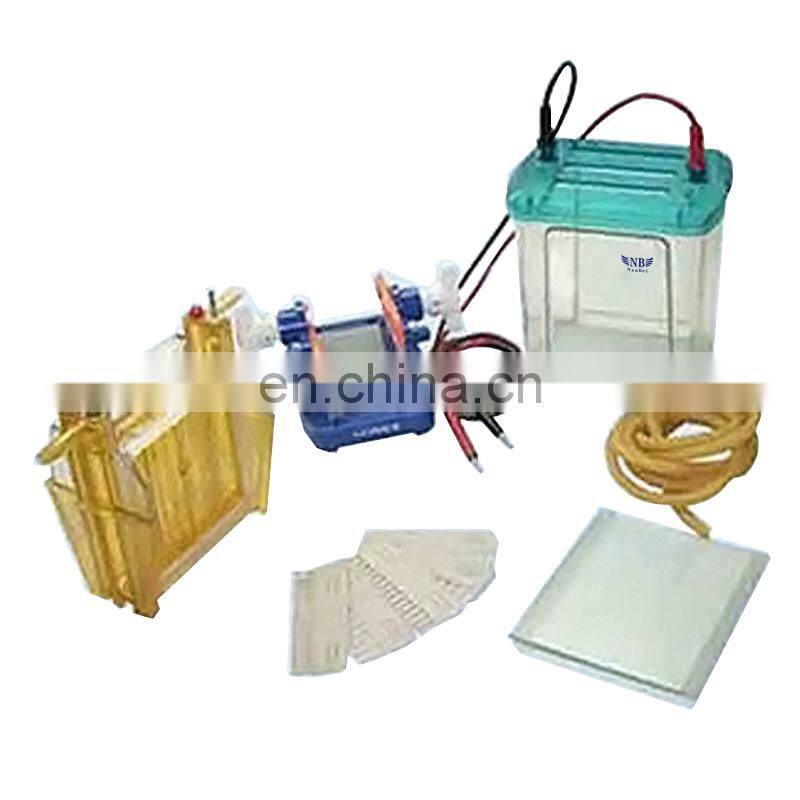

Modular Double-Vertical SDS Page Protein Gel Electrophoresis Apparatus

Modular Double-Vertical SDS Page Protein Gel Electrophoresis Apparatus

Model: DYCZ – 24EN

Description:

DYCZ – 24EN is a delicate, simple and easy to use system. It is manufactured from high acrylic with platinum electrodes. Its seamless, injection-molded transparent base prevents leakage and breakage. This system is

very safe for the users. Its power source will be turned off when user opens the lid. The special lid design avoids making mistakes.

Features:

* Different combs and spacers are available;

* Transparent tank for visibility without obstructions;

* Casting and running the gel at the same place (in the casting stand);

* Gel casting device makes gel casting simply and save your precious time;

* Special wedge frame design can fix gel room firmly;

* Molded buffer tank equipted the electrodes with pure platinum ;

* Run one gel or run two gels at the same time;

* Save buffer solution;

* Special design of the lid avoids mistakes during the operation;

* The base of the gel casting device can store one piece of rubber cushion.

* Built-in heat exchanger can eliminate the heat produced during the running.

* Power fails when you open the lid for users’ safe;

* High resolution separation with simple operation.

Specifications:

*  Gel dimension ( L X W): 130 × 100 (mm);

*    Runs up to 12 or 16 samples;

*    Comb thickness: 1.0 and 1.5 (mm);

*    Buffer volume: about 1,200ml;

*    Size (L X W X H):190×120×170(mm);

*    Weight: about 2.0 kg.

Applications:

For SDS-PAGE, Native PAGE electrophoresis and two-dimensional gel electrophoresis.

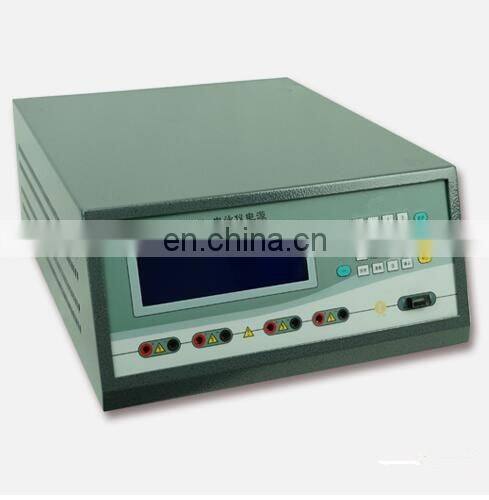

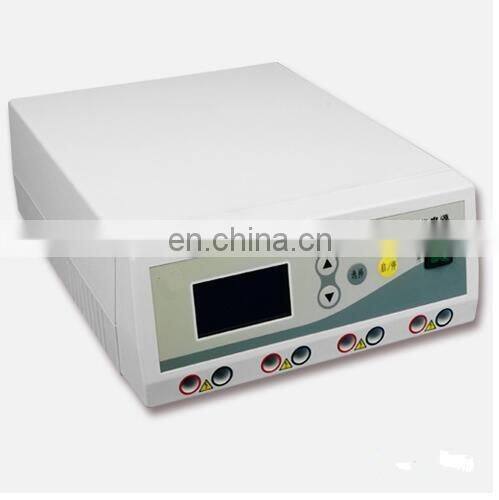

Suitable Electrophoresis Power Supply:

 DYY – 6C , DYY – 12
