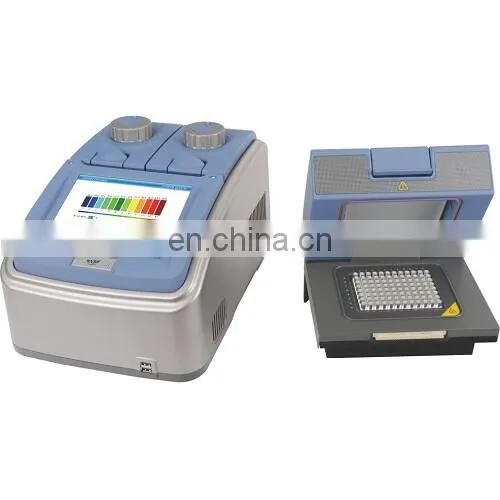

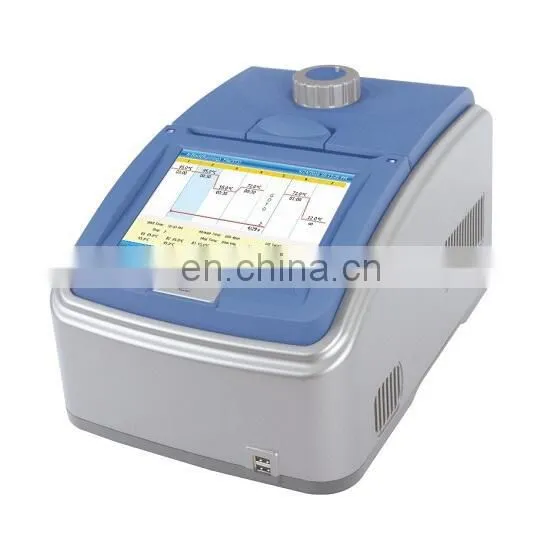

mini dna sequencer laboratory gradient thermal pcr instrument

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

GE-Touch series Thermal Cycler

Product introduction：

GE- Touch uses customized Marlow(US) peltier. Its max. ramping rate is 5 ℃/s and cycle times is more than 1000,000. The product combines a variety of advanced technologies: Windows system; color touch screen; independently controlled 4 temperature zones.PC on-line function; printing function; big storage capacity and support USB device. All above functions allow PCR’s excellent performance and meet higher experiment’s need.

Features

1. 8 pcs long service life Peltier heating units and form 4 circuits to control 4 temperature zones and allow double block gradient function; 2. Reinforced aluminum module with anodizing technology can keep rapid heating-conducting property and have enough corrosion resistance; 3. High heating and cooling rate, max. Ramping rate 5 ℃/s, can save your precious time; 4. Two blocks independently controlled and can run 2 different PCR programs simultaneously; 5. Stepless adjustable hot lid with pressure-protection, fit tubes of different heights to avoid tube melt and evaporation; 6. Windows interface, 8” ( 800×600, 16 colors) TFT color touch-screen with graphical display provides easy use for setting up and monitoring; 7. Built-in 11 standard program file template, can quickly edit the required files; 8. Folder management, user can build directory; 9. The running program and left time can be displayed in real time , allow to edit file when program is running; 10. Oneclick quick incubation function can meet experiment’s needs such as denaturation, enzyme cutting/enzyme-link and ELISA; 11. Internal flash memory for 10000 typical PCR files in free configurable folders; 12. Hot lid temperature and hot lid work mode can be set to meet different experiment’s need; 13. Automatic restart after power failure. When power is restored it can continue to run unfinished program 14. GLP report records every step to provide accurate data support for experiment result analysis; 15. User Login Management, three-tier permission, password protection function to ensure data security; 16. Compatible with devices such as Mouse and Keyboard and capable to transfer data and perform software updates via USB Drive; 17. Support USB and LAN to update software; 18. One computer can control many sets of PCR via network connection; 19. Support email-alert function when experiment is over.

More Details Photos

Specification

Model No.	GE9612T Gradient
Capacity	96×0.2ml
Temperature Range	0～100℃
Heating Rate	5℃/s
Cooling Rate	4℃/s
Uniformity	≤±0.2℃
Accuracy	≤±0.1℃
Display Resolution	0.1℃
Temperature Control	BlockTube
Ramping Rate Adjustable	0.1～5℃
Gradient Uniformity	≤±0.2℃
Gradient Accuracy	≤±0.2℃
Gradient Temp. Range	30～100℃
Gradient Spread	1～30℃
Hot Lid Temperature	30～110℃
Hot Lid Height Adjustable	Stepless Adjustable
Number of Programs	10000 +(USB FLASH)
Max. No. of Step	30
Max. No. of Cycle	100
Time Increment/Decrement	1 Sec ～ 600 Sec
Temp. Increment/Decrement	0.1～10.0℃
Pause Function	Yes
Auto Data Protection	Yes
Hold at 4℃	Forever
Language	English
Print	Yes
LAN to computer	Yes
LCD	8 inch，800×600 pels,
Communication	USB2.0 , LAN
Dimensions	390mm×270mm×255mm (L×W×H)
Weight	9kg
Power Supply	85～264VAC , 47～63Hz , 600 W

Recommendations

Packing & Delivery

Company Profile

Customer Concerns

FAQ

Q1: Why Choose NANBEI ? (1).Professional manufacturer with more than 13 years experience (2).Exported to more than 97% Countries (3).Turnkey Solution is no problem Q2:OEM,ODM acceptable or not? Absolutely Yes Q3:What's kind of Payment terms for customer choosing? T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ... Q4:Can we visit your factory online? Absolutely no problem Q5:Can online video inspection before shipment? Absolutely no problem Q6: what's the MOQ ? Sample order is OK? MOQ:1 set, sample order is no problem Q7:What's kind of shipment for customer choosing? Usually ship by sea, by air, by international express . We can also provide reasonable solutions according to your transportation requirements Q8:How to ensure product quality and after-sales service? We have CE, ISO quality certificate, and SGS authentication. After-sale service: 1.Warranty : 1 year 2.We supply free part for quality problem in warranty 3.Long life technical support and service
