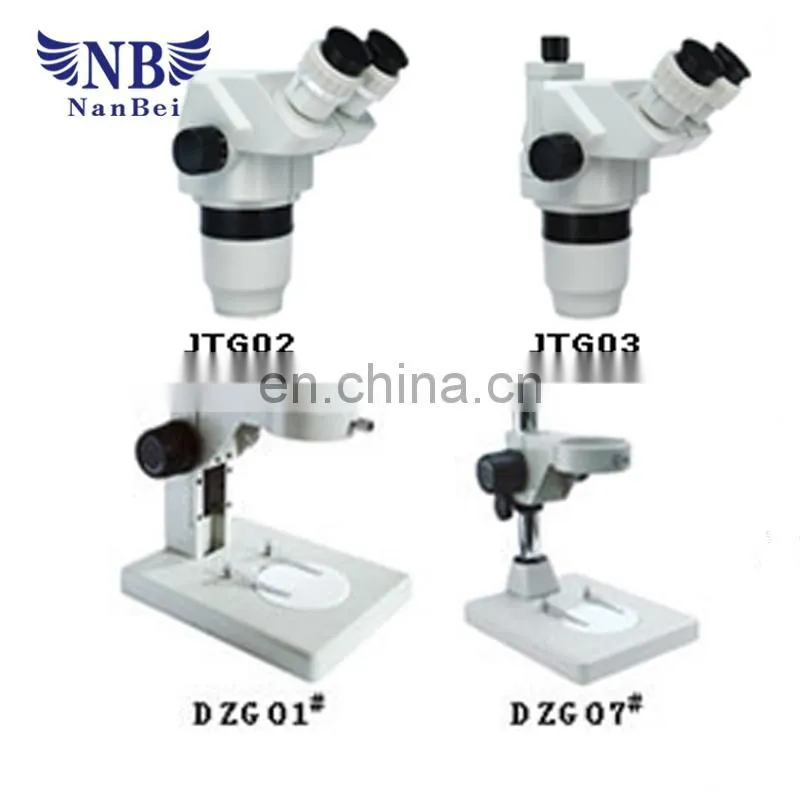

Digital zoom stereo microscope & microscope accessories
1.Feature and Description
The high performance GL Series stereo microscopes utilize a Greenough design and feature a 1:7 zoom ratio with a 103mm working distance and a large visual field. Their parfocality allows an erect image of the observed specimens to stay in focus through repeated changes in the magnification. They feature a guidepost structure, making them lightweight, and a pair of horizontal magnification changing knobs to maximize comfort.

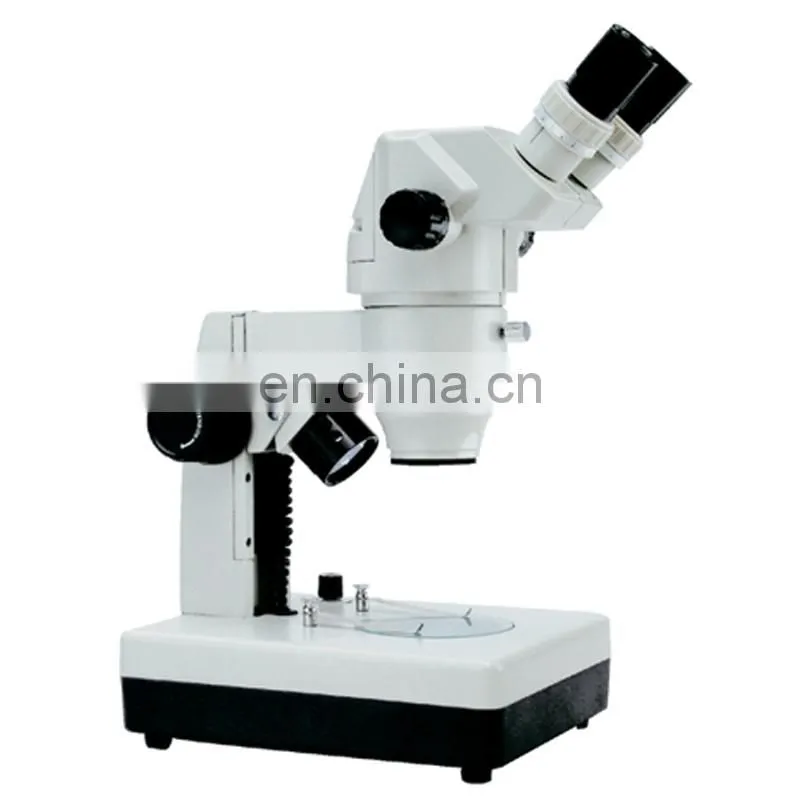

2.Picture for Our product
3.Usage and Application
Adding to the ergonomics is a choice of observation angle, either 45 or 60 degrees. In addition to performance and comfort, a highlight of the GL is their durability. Promoting one of the finest ball bearing guideways in the world, the focusing mechanism is extremely robust.
4.Technical data
Standard configurations
|
Zoom ratio |
1:7 |
|
Objective zoom range |
0.65X-4.5X |
|
Eyepiece |
SWF10X/22mm |
|
Working distance |
103mm |
|
Interpupillary distance adjustment |
55mm-75mm |
|
Binocular head |
inclination of 45°or 60° |
|
Diopter adjustment |
±5 diopter |
|
Optical Body Rotation |
360° |
|
Voltage input |
110V/60HZ or 220V/50HZ |
|
Top halogen lamp |
6V15W adjustable brightness |
|
Bottom fluorescent lamp |
5W |
Technical data
|
Project |
Auxiliary Objective |
Eyepiece |
Working distance(mm) |
|||||||
|
SWF10X |
WFl5X |
WF20X |
WF25X |
|||||||
|
Magnifi-cation |
Visual field |
Magnifi-cation |
Visual field |
Magnifi-cation |
Visual field |
Magnifi-cationn |
Visual field |
|||
|
Data |
0.5X |
3.3X-22.5X |
67.7-9.8 |
4.9X-33.8X |
49.2-7 |
6.5X-45X |
40-5.8 |
8.1X-56.3X |
37-5.2 |
163 |
|
0.75X |
4.9X-33.8X |
45.1-6.5 |
7.3X-50.6X |
32.8-4.7 |
9.75X-67.5 |
26.6-3.8 |
12.2X-84.4X |
24.6-3.5 |
117 |
|
|
1X |
6.5X-45X |
33.8-4.9 |
9.8X-67.5X |
24.6-3.5 |
13X-90X |
20-2.9 |
16.3X-112.5X |
18.5-2.6 |
103 |
|
|
1.5X |
9.8X-67.5X |
22.5-3.3 |
14.6X-101.3 |
16.4-2.3 |
19.5X-135X |
13.3-1.9 |
24.4X-168.8X |
12.3-1.7 |
45 |
|
|
2X |
13X-99X |
16.9-2.5 |
19.5X-135X |
12.3-1.8 |
266X-180X |
10-1.4 |
32.5X-225X |
9.2-1.3 |
40 |
|
5.Packing and Shipping
Carton Case
1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.
1.Company Show
2.Factory Show
1.Certification
2.Warranty And After-sale Service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training♥♥
