Viscosity Measuring Instruments Rotary Digital Viscometer

Viscosity Measuring Instruments Rotary Digital Viscometer thumbnail-1
Viscosity Measuring Instruments Rotary Digital Viscometer thumbnail-2
Viscosity Measuring Instruments Rotary Digital Viscometer thumbnail-3
Viscosity Measuring Instruments Rotary Digital Viscometer thumbnail-4
Viscosity Measuring Instruments Rotary Digital Viscometer thumbnail-5
Viscosity Measuring Instruments Rotary Digital Viscometer photo-1
Viscosity Measuring Instruments Rotary Digital Viscometer photo-2
Viscosity Measuring Instruments Rotary Digital Viscometer photo-3
Viscosity Measuring Instruments Rotary Digital Viscometer photo-4
Viscosity Measuring Instruments Rotary Digital Viscometer photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2015
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Nanbei Instrument Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

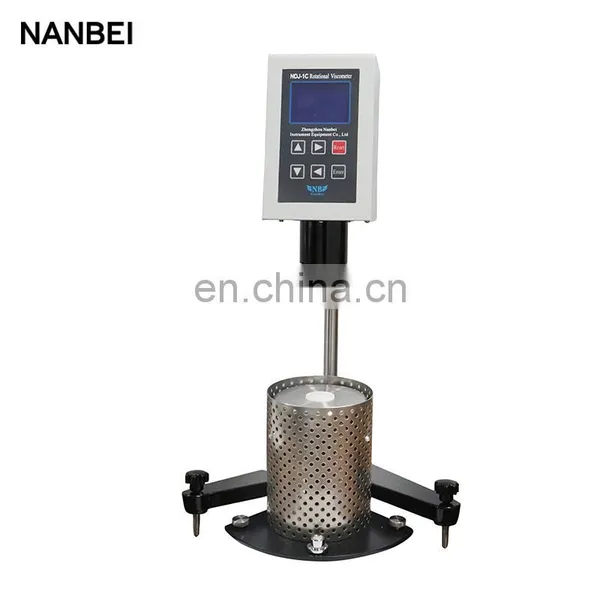

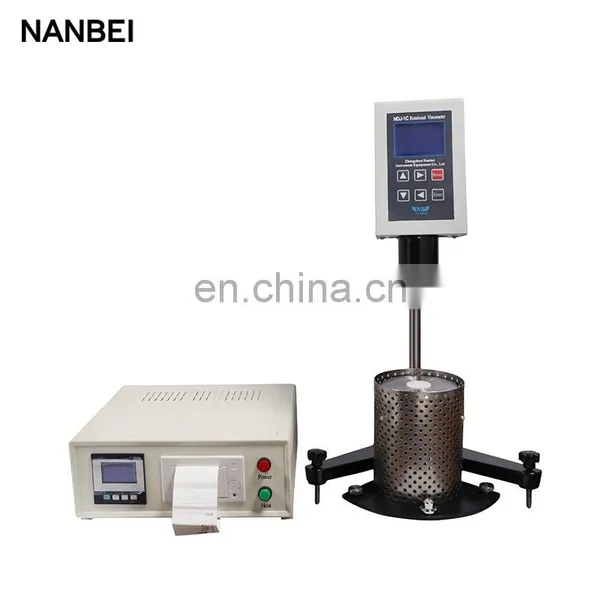

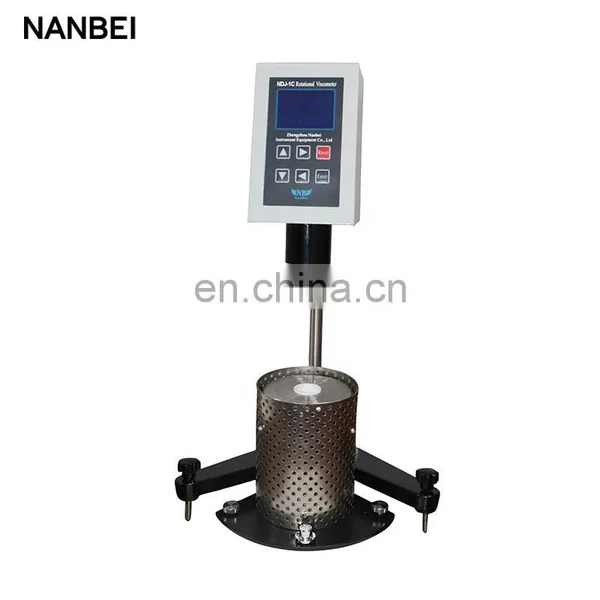

NDJ-1C Rotating Viscometer

Product introduction：

NDJ-1C brookfield rotating viscometer is designed and made as per T0625 “Asphalt Brookfield Rotational Viscosity Test (Brookfield Viscometer Method)” in the Industry Standard of People’s Republic of China JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering. It is suitable to determine absolute viscosity of Newtonian liquids and apparent viscosity of Non-Newtonian liquids.   The instrument adopts the advanced mechanical design technologies and manufacturing techniques, and uses microcomputer technologies for temperature control, data collection and data process. The display is a background light, ultra-brighten LCD. It is also equipped with a micro-printer for printing. The test data can be shown on the LCD in real time or printed out through the printer. It can also connect to a computer through the RS232 communication port.   The instrument has characteristics of high measurement sensitivity, reliable measurement data, convenience, and good looking. It can be widely used to determine viscosity of asphalt, hot melt adhesive, paraffin, high polymer, and various fluids.
More Details Photos

Digital display screen

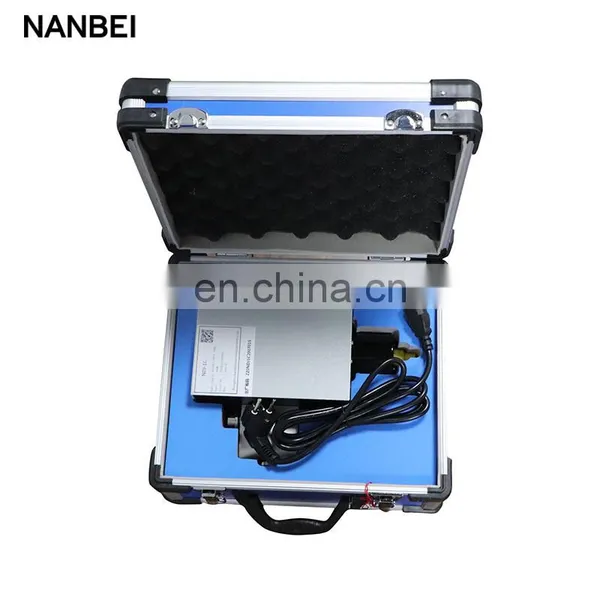

Accessories

Spindles

Specification
Measurement range
100 mPa•s～2×105 mPa•s (If you select the No.30 spindle, the measurement range can be extended to 4×105 mPa•s)
Spindle:
No.21, 27, 28 and 29 total 4 pieces of spindles (the No.30 spindle is optional)
Spindle speed:
5RPM, 10 RPM, 20 RPM, and 50 RPM
Measurement error
±2% (F•S); (If you select the No.30 spindle, it will be ±3% (F•S)
Temperature control range:
 45 ℃～200 ℃
Temperature control accuracy:
 ±0.1 ℃
Sample cylinder cubage:
20 ml
Power supply:
AC 220 V±10%, 50 Hz
 Ambient temperature
5 ℃～35 ℃ (when the control temperature of the heater is close to the ambient temperature, turn on the air conditioner to allow the
ambient temperature is approximately 5 ℃ lower than the control temperature of the heater);
Relative humidity:
≤80%
Printing output:
needle printer
Comunication port
RS232 port
Optional accessories 1.NDJ-1C Brookfield Viscometer and Computer communication software(CD)
2. 300℃ high temperature heating furnace
3. 30# rotator
NDJ-1C Brookfield Rotating Viscometer Accessories and Documents List
No.
Name
Unit
Quantity
1
Head of viscometer
Set
1
2
Pedestal of instrument (having three level adjustment bolts)
Set
1
3
Toothed rod
Piece
1
4
Auxiliary controlling case (containing a temperature controller and a micro-printer)
Set
1
5
Heater
Piece
1
6
Spindle (No.21, 27, 28 and 29)
Piece
1 for each
7
Connection hook and transition bolt
Piece
1 for each
8
Power supply wire (250 V 6 A)
Piece
1
9
Serial port wire
Piece
1
10
Heater connection wire
Piece
1
11
Sensor wire
Piece
1
12
Sample cylinder, sample cylinder holder, sample cylinder cover, special forceps
Piece
1 for each
13
Fuse (Φ5×20) 5 A
Piece
3
14
CD for communication with a PC
Piece
1
