Product Description
NDJ-1 Rotational Viscometer
Product introduction：
The instrument is mechanical rotational viscometer, applicable to measure the viscosity of liquid viscous resistance and the liquid in the specified measuring range; it can be widely used in the measurement of grease, paint, plastics, food, pharmaceutical, adhesives and other fluid viscosity.
Main technical features
1. Using synchronous motor with stable rotational speed, connecting scale disc and then through the gossamer and shaft drives the rotor to rotate.
2. Using gear and clutch system to variable speed, operated by a dedicated rotary knob, divided into four stalls speed, can be selected based on the measurement.
3. With 1 to 4 four kinds of rotors, can be preset 4 stall speed, according to the measurement of the viscosity of the liquid to choose the speed with the use of speed, meet the requirements of different range of measurement.
4. Equipped with a fixed control device (pointer control lever), easy to read accurate readings when speed faster.

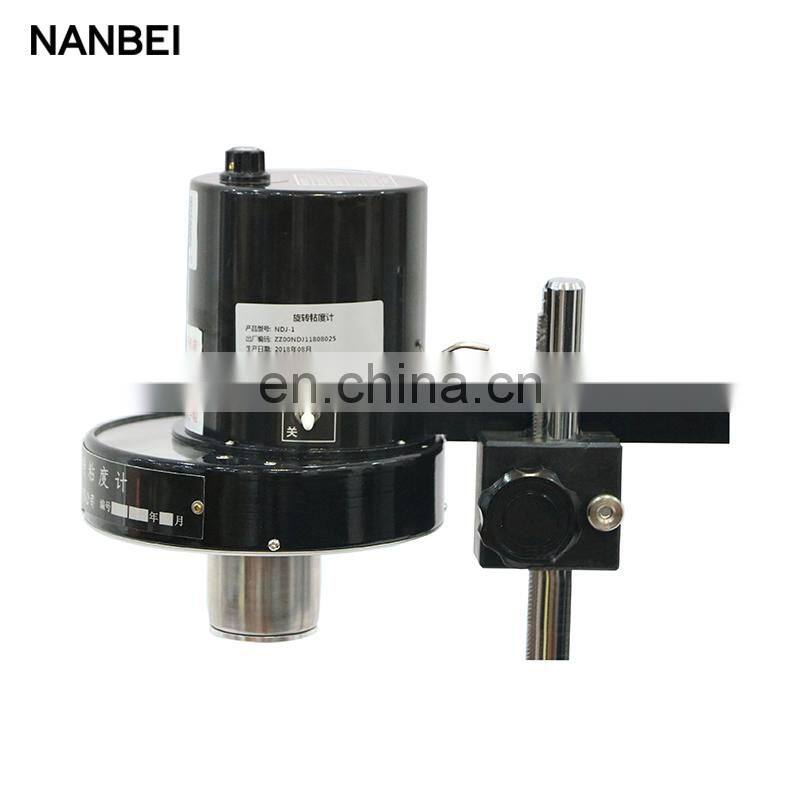

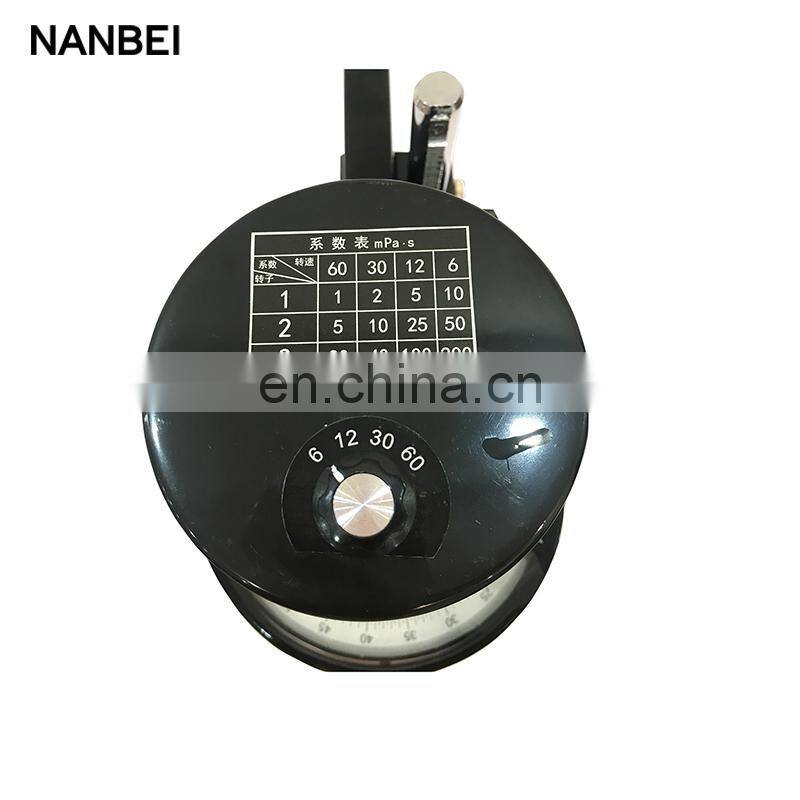

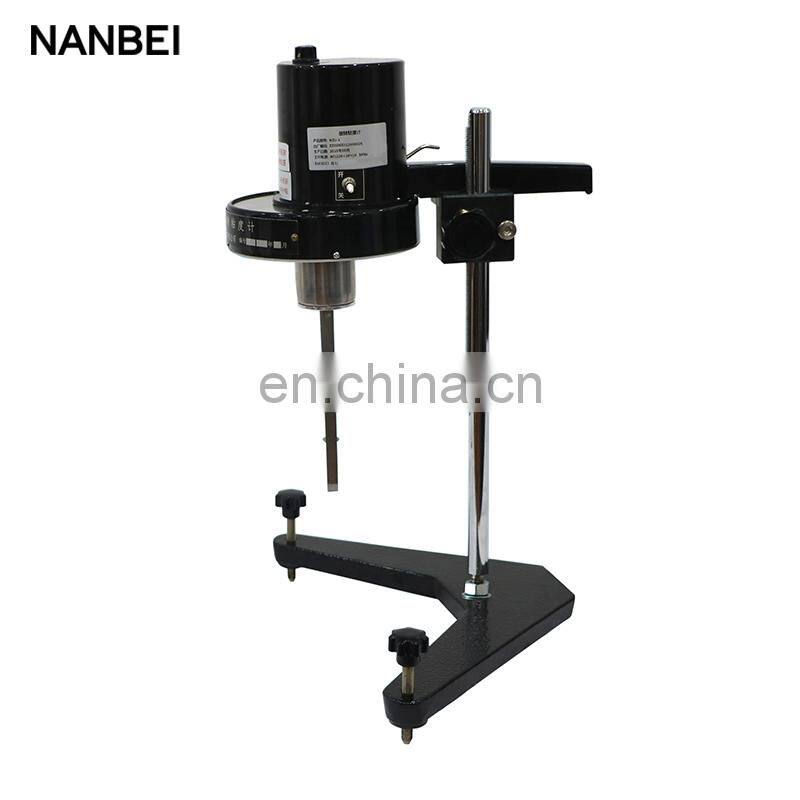

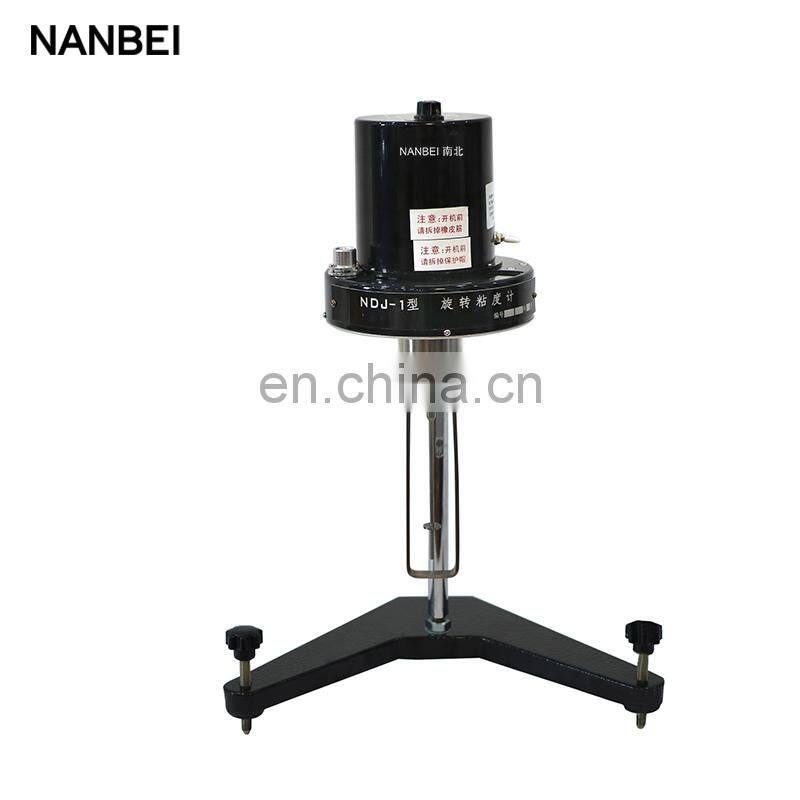

More Details Photos
Specification
Measurement range (mPa.s) | 10 ~ 10 × 104 |
Rotor speed (r / min) | 6, 12, 30, 60 |
Rotor specifications: | 1 #, 2 #, 3 #, 4 # |
Measurement error | ± 5% (F•S) |
Power supply: | AC 220 V±10%, 50 Hz |
Ambient temperature | 5 ℃～35 ℃ |
Relative humidity: | ≤80% |
Optional accessories
1.HWY-10 Circulating thermostatic water bath
2.Professional Double-deck sample cup
3.#0 spindle
NDJ-1Rotational Viscometer Accessories and Documents List
No. | Name | Unit | Quantity |
1 | Main unit | Set | 1 |
2 | No.1 to 4 spindle, protection sleeve | Piece | 1 for each |
3 | Protection cap(please take it down before power on ) | Piece | 1 |
4 | Supporter | Piece | 1 |
5 | Pedestal (with two level adjust bolts) | Pair | 1 |
