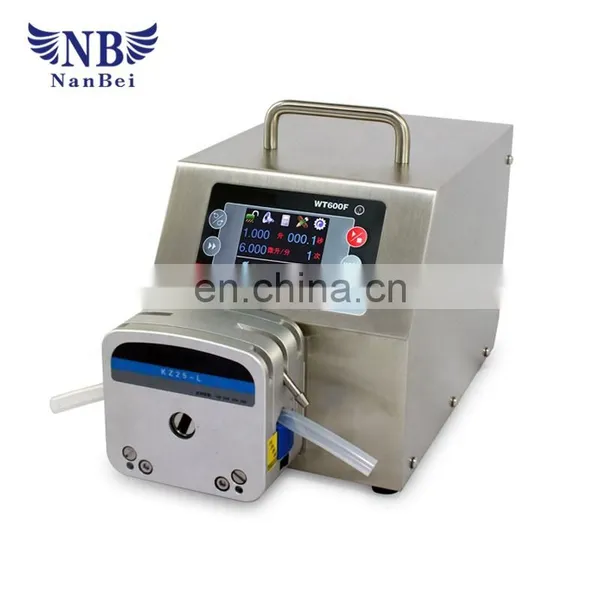

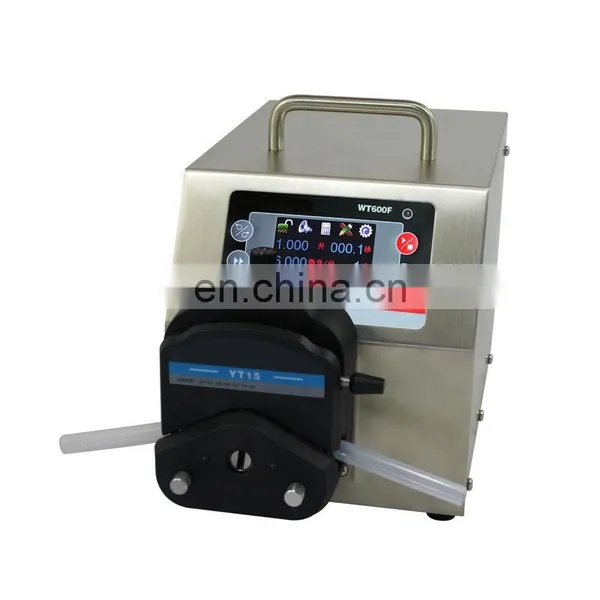

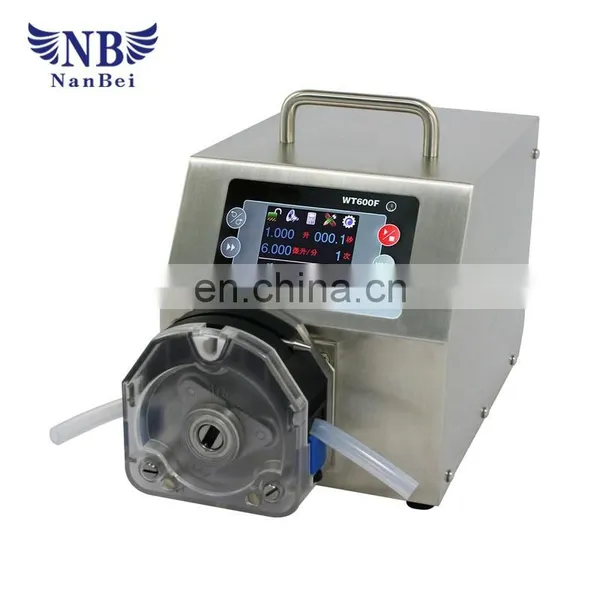

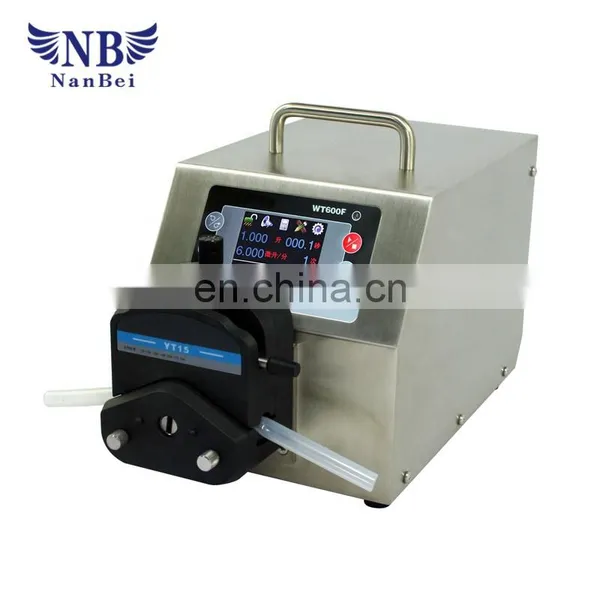

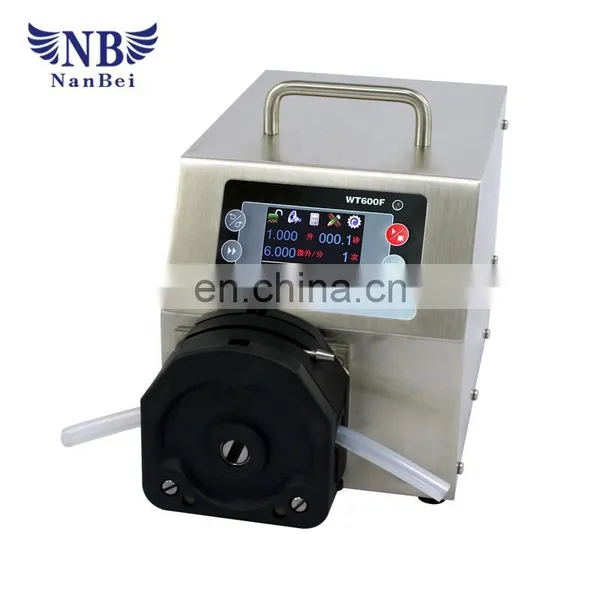

BT600F Dosing filling Volume Peristaltic Pump high viscous fluid
BT600F Dosing filling Volume Peristaltic Pump high viscous fluid
Technical parameters
Flow range: |
0.006-2900ml/min |
Flow accuracy: |
<0.5% |
Speed range: |
0.1-600rpm. |
Speed resolution: |
0.1-100 rpm, the speed resolution is 0.1 rpm. |
Power supply : |
AC 220V±10%,50Hz/60Hz(standard), AC 110V±10%,50Hz/60Hz(optional) |
Power consumption: |
<60W |
External control: |
Input electrical level 5V, 12V (standard),24V(optional). |
External control analog |
0-5V(standard),0-10V,4-20mA(optional) |
External communication interface |
RS485 communication interface,support the MODBUS protocol. |
Ambient temperature: |
0 ~ 40℃ |
Relative humidity: |
<80% |
IP grade: |
IP31 |
Dimensions: |
223mmx150mmx195mm |
Weight: |
5.2kg |
BT600F Applicable pump head,tubing and flow parameters:
Drive type |
Pump head |
Channel number |
Tubing(mm) |
One channel flow rate (ml/min) |
|
BT600F (304 stainless steel housing) |
YZ15 |
1,2 |
13#14#16#19#25#17# |
0.006~1700 |
YZ25 |
1,2 |
15#24# |
0.1667~1700 |
|
YT15 |
1,2 |
13#14#16#19#25#17#18# |
0.006~2300 |
|
YT25 |
1 |
15#24#35#36# |
0.1667~2900 |
Pre-sale service
· 24hours online to ensure quick response to customers' inquiry or online message;
· Guide customers to choose the best suitable machine model;
· Offer detailed specification and competitive prices;
Contract execution
· Machine production will be arranged strictly according to the contract;
· Machine photos will be sent to you for inspection during production;
· Send customs clearance documents by DHL;
· Update latest news after delivery and prepare customs clearance;
After-sale service
· 12 months warranty except for wear parts;
· Broken spare parts (except for wear parts) will be sent for free due to quality problems;
· In time response to customers technical problems;
· New products update for customers' reference
Please feel free contact for more details .Thanks
