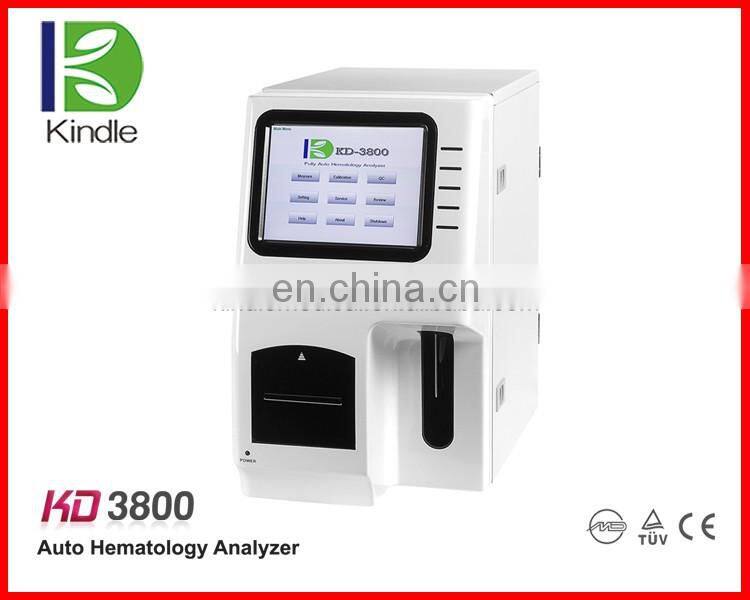

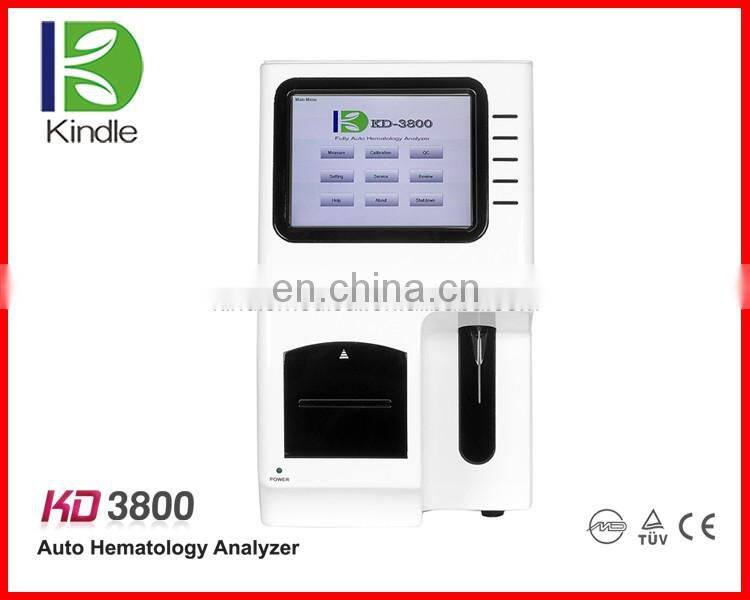

Help CenterKD3800 CE Approved Lab Equipment 3 Part Fully Automatic Hematology Analyzer Price With 60 Tests Speede
Related Products
-
Cell Blood Counter 3 Differential CBC Cell Counter Hematology Lab Machine Equipment Haematology Analyzer KD3800NegotiableMOQ: 1 -
KINDLE KD3800 CHINA Aautomatic Open System 3 Part Hematology Analyzer For Blood ClinicalNegotiableMOQ: 1
-
Kindle Medical Hematology Analyzer,medical Hematology Analyser, Mindray Quality Hematology AnalyzerNegotiableMOQ: 1
-
Veterinary Hematology Analyzer KD3800 for Animals Diagnostic HematologyNegotiableMOQ: 1
-
23 Parameters Hematology Analyzer 3 Differential Cell Blood Counter KD3800NegotiableMOQ: 1
Feature
- 3 part differential hematology analyzer, 20 parameters & 3 histogram (WBC, RBC, PLT)
- Fully automatic analysis cycle
- Automatic internal and external probe cleaning
- High Reliability and Safety
- Huge storage of 15,000 patient results with histogram

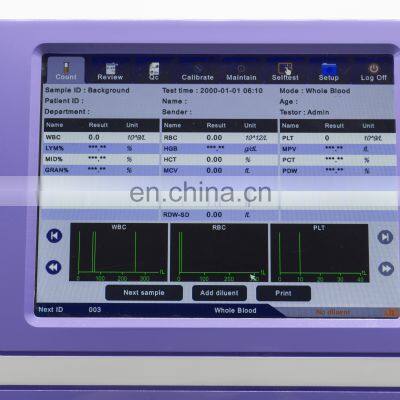

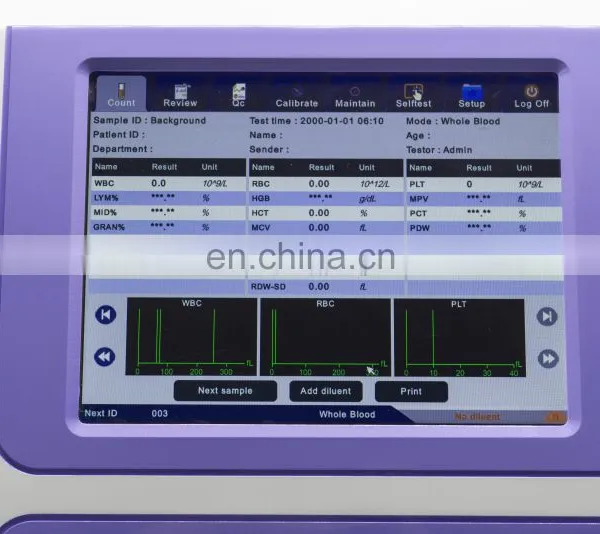

- Easy touch screen operation.
- Support external Laser Printer, Programmable multiple format printout
Technical Specification
|
Principle |
Electrical resistance for counting, hemoglobincyanide method and SFT method for hemoglobin |
|
|
Parameters |
3-part differential of WBC, 20 parameters+3 color histograms (WBC/RBC/PLT). 20 parameters: WBC, LYM%, MID%, NEUT%, LYM#, MID#, NEUT#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR |
|
|
Sample Volume |
Venous Mode: 9.6uL, Capillary Mode: 9.6uL, Pre-diluted: 20uL |
|
|
Working Mode |
Counting passages detection+independent HGB measurement system, 24 hours with auto standby |
|
|
Operation Mode |
Touch screen operation, keyboard and mouse operation |
|
|
Throughput |
60 samples per hour |
|
|
Data Storage |
Up to 15,000 results inclusive of the histograms |
|
|
QC mode |
L-J, X, X-B, SD, CV, QC histograms |
|
|
Calibration Mode |
Relatively independent manual calibration and auto calibration in 3 detecting modes |
|
|
Cross Contamination Ratio |
WBC, RBC, HGB<0.5%, PLT<1% |
|
|
Performance |
Parameter Repeat-ability |
Linear Range |
|
WBC≤2.5% |
0.00-99.9×108 /L |
|
|
RBC≤2.0% |
0.00-9.99×1012/L |
|
|
HGB≤1.5% |
0-300.0 g/L |
|
|
MCV≤0.4% |
40-150fL |
|
|
PLT≤5.0%(100-500) |
0-999×109/L |
|
|
Display |
8.4 inch LCD, resolution 800×600 |
|
|
Reference value |
Baby, Kid, women, man, normal and customization |
|
|
Interface |

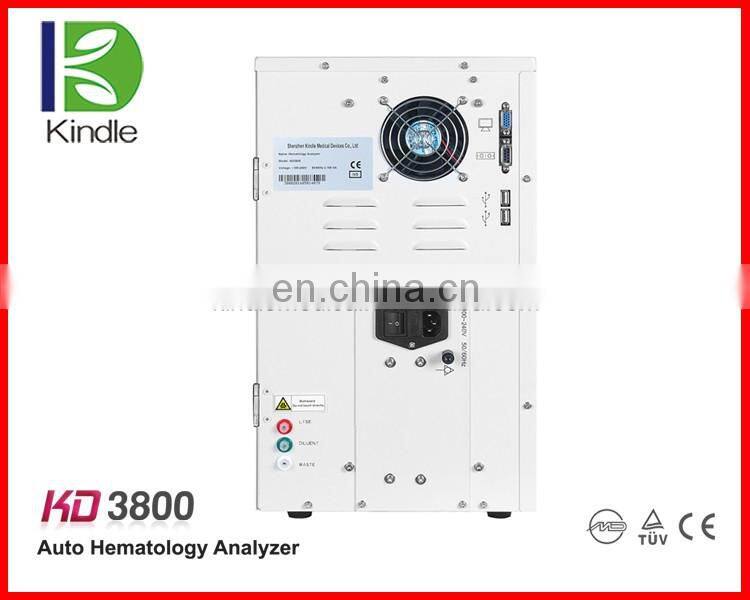

2×USB, 1×parallel (for external printer), 1×VGA (for external monitor), RS232(for network) |
|
|
Printout |
Built-in thermal recorder, optional external printer, 8 report format |
|
|
Working Environment |
Temperature: 15-35℃, Humidity:10-90% |
|
|
Power Requirement |
AC100-240V 50/60Hz |
|
