1、 Structure and purpose:

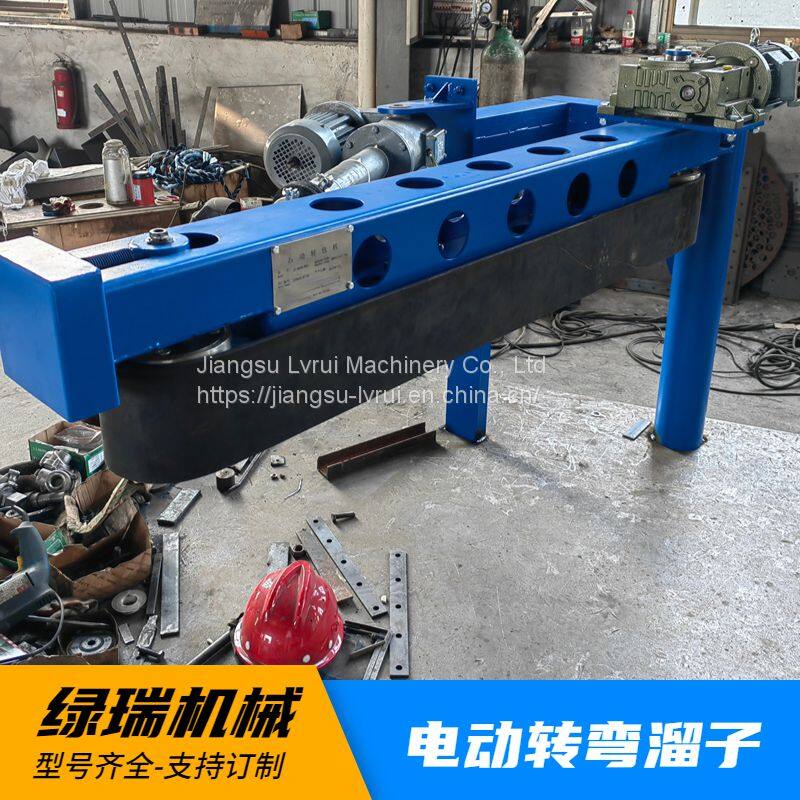

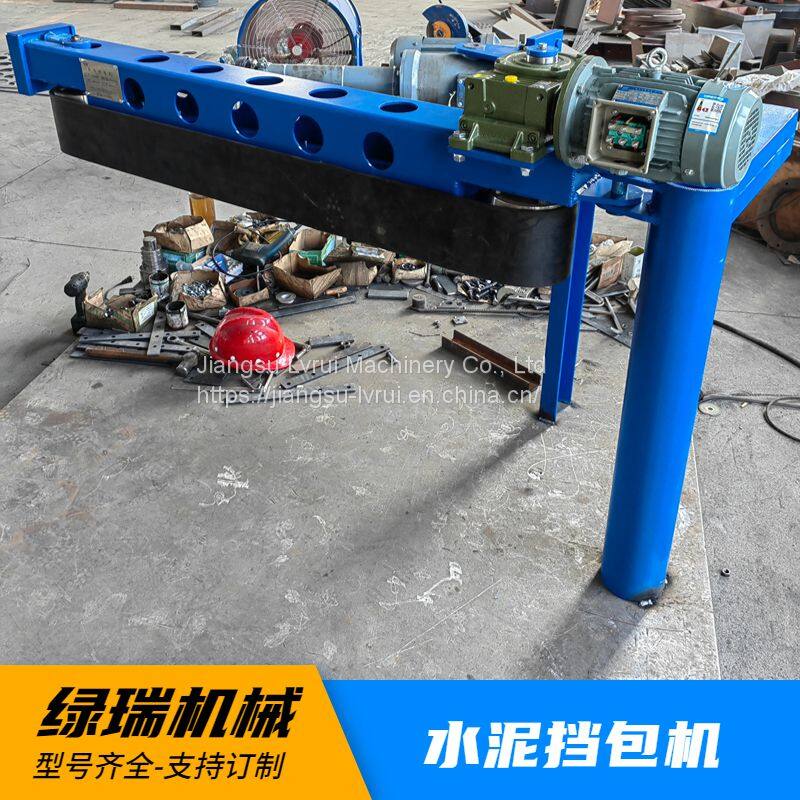

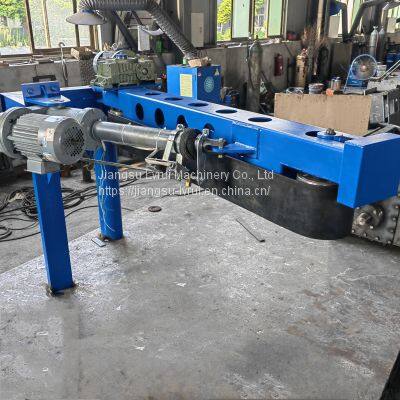

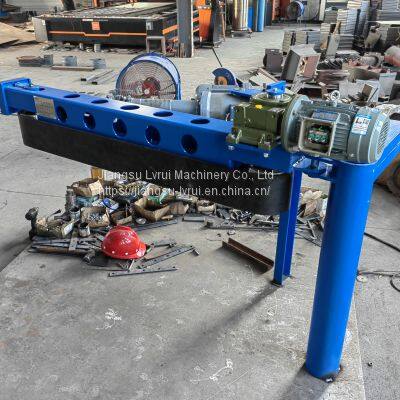

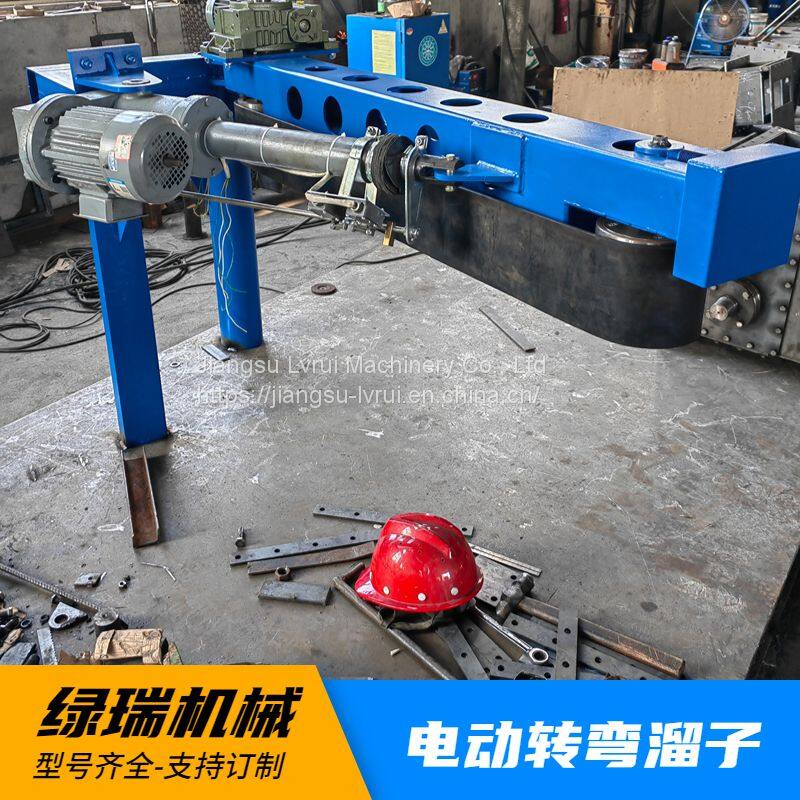

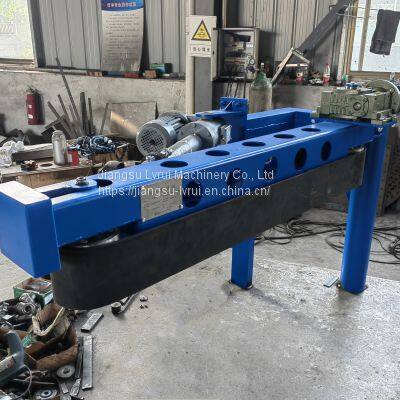

Electric turning chute (bag stopper, bag stopper, electric steering mechanism) is composed of steel frame, rotatable belt turning mechanism, electric push rod sliding chute and control system.

The electric turning roller (bag stopper, bag stopper and electric steering mechanism) is mainly used for the turning transportation of bag packaging materials from a conveyor belt to the lower layer and a conveyor belt perpendicular to the conveyor belt. It is suitable for automatic conveying lines in cement, grain, chemical and other industries, and can automatically transfer the conveyed bagged materials.

2、 Technical performance

1. Conveying material: bagged cement: 50kg / bag

2. Cycloidal pinwheel reducer

(1) Model: bl15-9-1.1

(2) Speed ratio: 9

(3) Motor model: y90s-4

Power: 0.55kw, speed: 1410r / min

3. Electric push rod

(1) Model: dt300-60

(2) Thrust: 300kg

(3) Speed: 84mm

(4) Motor model: a06332

Power: 0.55kw, speed: 2800r / min

Voltage: 380V, current: 1.38a

4. Travel switch

(1) Model: jlxk1-111

(2) Voltage: 380V, current: 5A

3、 Technical requirements:

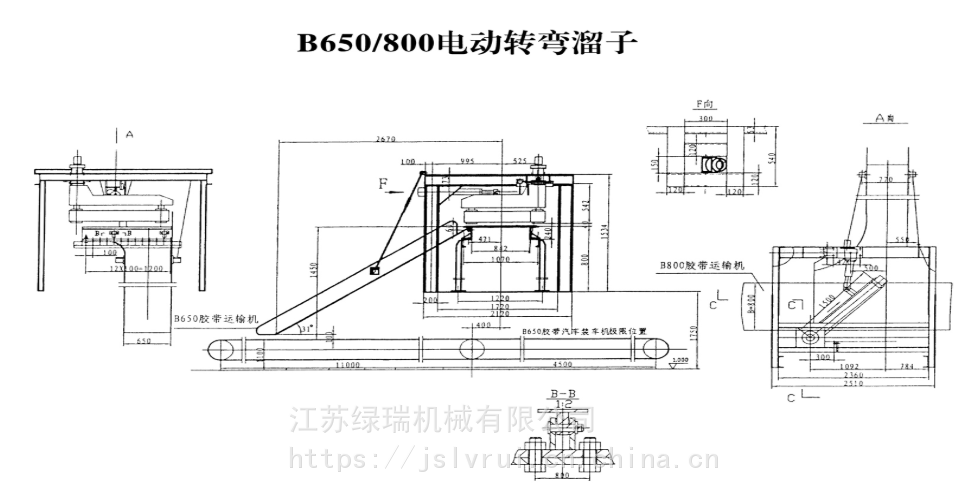

1. The arrow in the a-direction view indicates that the cement bags are transported to the b650 belt conveyor by the B800 belt conveyor and the electric turning roller.

2. The cement bags fed into the electric chute by the B800 belt conveyor must be loaded and placed in order, and no horizontal packing is allowed.

3. The travel switch shall be installed on site.
