High Quality And High Level Pneumatic Chipping Hammer

High Quality And High Level Pneumatic Chipping Hammer thumbnail-1
High Quality And High Level Pneumatic Chipping Hammer thumbnail-2
High Quality And High Level Pneumatic Chipping Hammer thumbnail-3
High Quality And High Level Pneumatic Chipping Hammer thumbnail-4
High Quality And High Level Pneumatic Chipping Hammer thumbnail-5
High Quality And High Level Pneumatic Chipping Hammer photo-1
High Quality And High Level Pneumatic Chipping Hammer photo-2
High Quality And High Level Pneumatic Chipping Hammer photo-3
High Quality And High Level Pneumatic Chipping Hammer photo-4
High Quality And High Level Pneumatic Chipping Hammer photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1994
Annual Export Value:
US$5 Million - US$10 Million
Contact Supplier Request Quote Chat Now
Hebei Gaotiejian Testing Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Our Advantages
Product Description

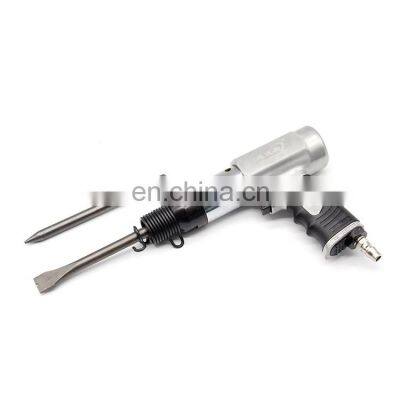

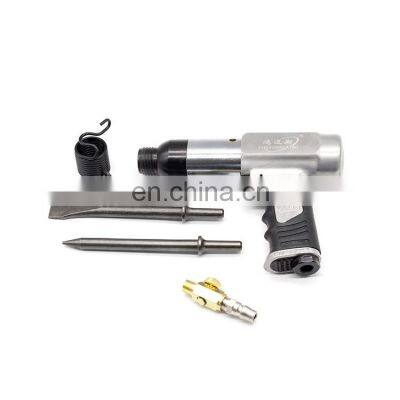

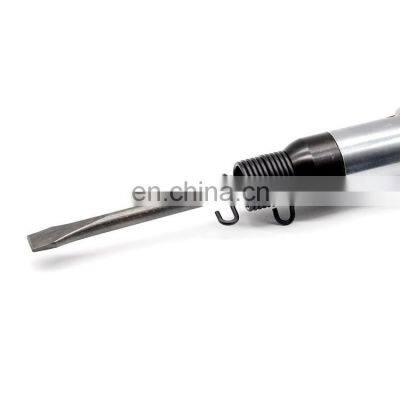

Pneumatic chipping hammer

uses compressed air as the power to make the internal hammer reciprocate and strike to shovel and dig metal buildings and materials. Mainly places such as deep excavation, welding and construction, and furnace maintenance.
Feature：
1. In the mining industry, the product is used to cut off coal seams and break up soft ore. 2. In the construction of civil engineering, railways, highways, docks, and power stations, it is used for digging holes and digging earthwork in broken soil layers. 3. Work smoothly, safe and reliable. 4. Unique damping device, progressive start 5. The operator's comfort is greatly improved, and the vibration is greatly reduced. Slow start and better control
Specification
PCH001
Type
190mm air hammer
250mm air hammer
Volume
340*295*300
340*295*300
Weight
2.2kg
2.5kg
Working pressure
0.6-0.8Mpa
0.6-0.8Mpa
Impact energy
8J
8J
Impact frequency
35hz
35hz
Air consumption
7L/S
7L/S
length
16.5CM
21CM
PCH003
type
190mm
250mm
volume
340*295*300
340*295*300
weight
2.15kg
2.4kg
working pressure
0.6-0.8Mpa
0.6-0.8Mpa
Impact energy
8j
8j
Impact frequency
35hz
35hz
Air consumption
7L/S
7L/S
length
20CM
23CM
Machine weight
2kg
2.2kg
PCH005
type
C4 air hammer
C6 air hammer
volume
475*370*220
480*405*220
weight
5.7kg
7.5kg
working pressure
0.6-0.8Mpa
1.0-1.2Mpa
Impact energy
8j
10j
Impact frequency
35hz
35hz
Air consumption
7L/S
7L/S
length
29.5CM
35CM
Tracheal inner diameter
10mm
13MM
Machine weight
4kg
6kg
PCH007
Item
C4
Machine Weight
4kg
Impact Energy
21/s
Gas Consumption
32min
Cylinder Diameter
35mm
Inner Diameter of Air Pipe
13mm
Chovel handle
17.5*60mm
Noise
102 db
Client Feedback
Transaction process
Why Choose Us
Iwin testing equipment company is a high-tech enterprise focusing on the research and development, production and sales of engineering quality test and testing instruments.The company serves in the construction, the railroad, the highway, the water conservancy, the electric power, the university and the scientific research institute.To provide quality products, services and solutions for the industry. And establish a good long-term cooperative relationship with it.

"Build a craftsman's spirit and build a century-old enterprise" is the development concept we have been pursuing.
Product packaging
Our logistics
FAQ
1. who are we?
Iwin testing equipment based in Hebei, China, start from 2010.
Sell to Domestic Market(50.00%),South America(15.00%),Southeast Asia(10.00%),Mid East(10.00%),North America(5.00%),Africa(5.00%),Western Europe(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
We are professional manufacturer. Before shipping ,we test machine for three times to ensure client receive excellent machine.

3.what machines can you buy from us?
Metal test, Pile test, Soil test, Asphalt test, Concrete test, Cement test.

4. why should you buy from us not from other suppliers?
We mainly develop high-technology, high quality, energy saving and environmental-friendly building material products . We produce products according to international standard specification, we also can offer OEM service , like many kinds of couplers .

5. what services can we provide?
Delivery Terms: FOB,CFR,CIF,EXW,FAS,Express Delivery,DAF；
Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese, German, Arabic, French.
