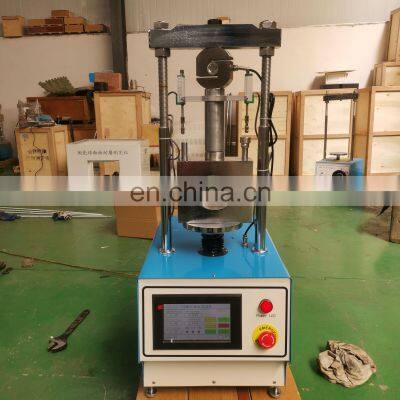

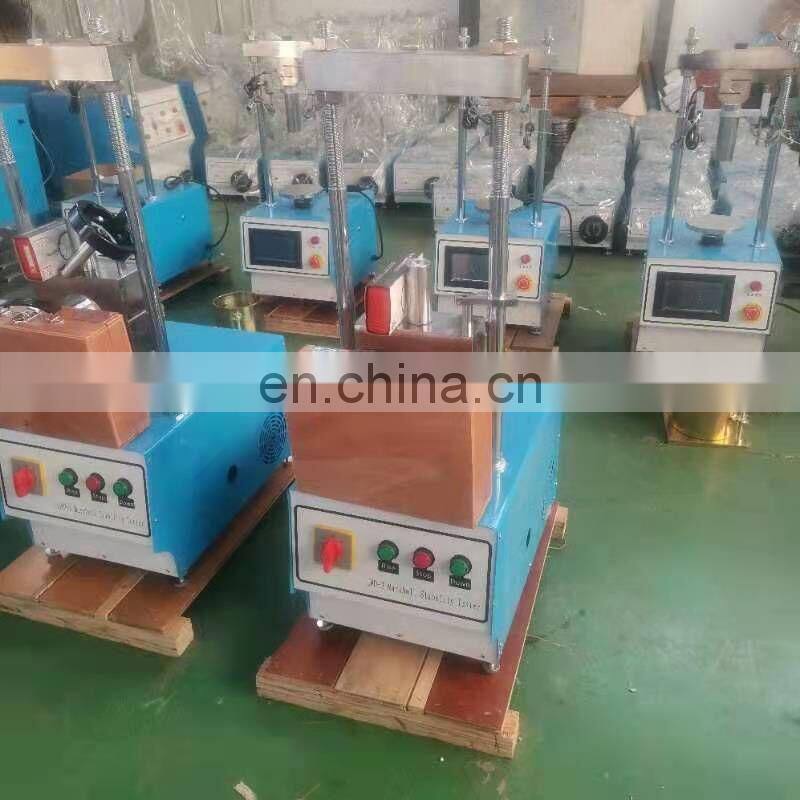

Marshall stability test apparatus marshall testing machine

The Marshall Stability Machine is used to determine the load and flow values of bituminous mixtures.

The Marshall is composed of a robust and compact two-column frame with an adjustable upper cross beam driven by an electro-mechanical ram with a maximum capacity of 50 KN and a data acquisition and processing system.

The Marshall Stability Machine can be hand operated by a lateral hand wheel for calibration purposes. The mechanical jack raises the lower cross beam at a constant speed of 50.8 mm/min.

The limit switches are provided for both, bottom and top limit of travel.

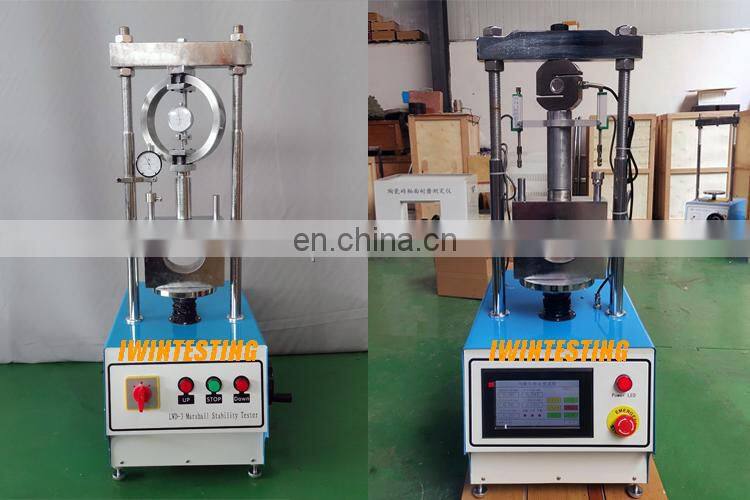

The Automatic measuring system consists of a 50KN capacity strain gauge load cell that is fitted to the upper cross beam to read stability values and 25 mm x 0.001 mm displacement transducer fitted to Break Head.

The Manual measuring system consists of a 50 KN capacity load ring and dial gauge graduated 0.01 mm with 25 mm travel.

1,The vertical rise speed of the test apparatus tray: 50±5mm/min
2,Maximum movement distance of the test apparatus pallet: 70mm
3,Working range of force value: 0 - 50.00kN
4,Working range of displacement: 0 - 10.00mm
5,Measuring accuracy of force measuring device: ±0.1kN
6,Displacement measuring device measuring accuracy: 0.01mm
7,Working voltage: 220V 50Hz AC
8,Specification of motor: 220V, 0.37KW, 1440rpm, three-phase operation
9,Maximum rated load: 50KN
10,Using conditions: Ambient temperature 0℃-60℃ Relative temperature <85%

Iwintesting equipment company is a high-tech enterprise focusing on the research and development, production and sales of engineering quality test and testing instruments. The company serves in the construction, the railroad, the highway, the water conservancy, the electric power, the university and the scienitic research institute.

To provide quality products, services and solutions for the industry,And establish a good long-term cooperative relationship with it. Our company always abides by the business philosophy of“customer first, quality firrst”.Do a good customer service,All products of the company implement the "three guarantees policy"

Q:What equipments do you supply?

A: We supply metal testing, pile testing, concrete testing, soil testing, cement testing, asphalt testing, rock testing and other building lab equipments.

Q: Are your company a trading one or a factory?

A: Factory+ trade (integration), More than 10 years focusing on test instruments field.

Q: After an order is placed, when to deliver?

A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days Please be aware that our production lead times depend on specific items and item quantities.

Q: What about the warranty with after-sales services?

A: The testing machine is guaranteed for 12 months by gaotiejian, we can help you to repair your problem con troller freely, even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q: What about the product' services and qualit?

A: Each instruments must be carried out 100% quality examination and test when shipping and delivery goods Product use training, each of our product provide video training to show you how to install operate We can arrange engineer to train the operation of equipment to customer s company when you need. products are widely recognized and trusted by users.
