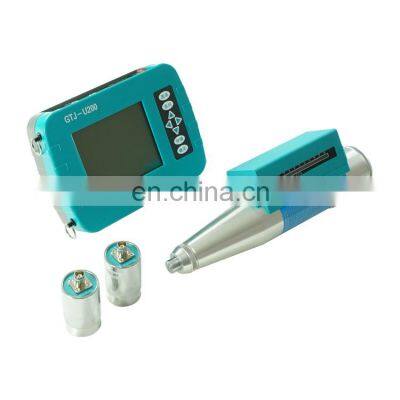

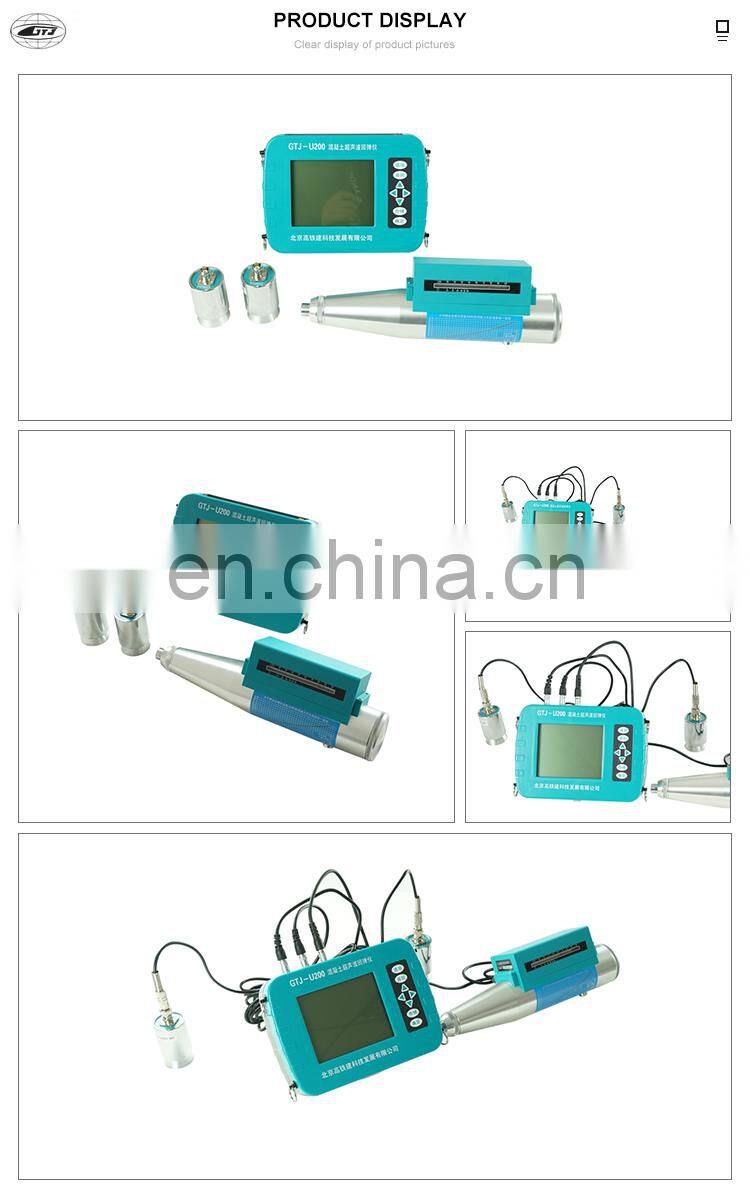

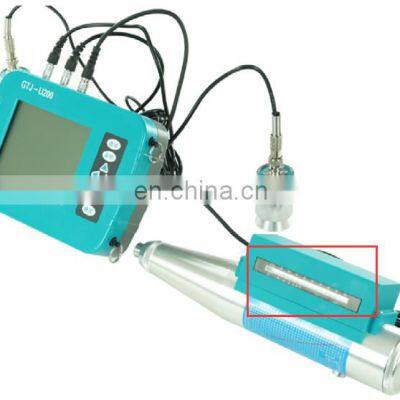

U200 Ultrasonic Test Meter Rebound Hammer for Concrete
Ultrasonic rebound is a comprehensive instrument for testing concrete strength.It can be used not only as a common rebound tester, but also as a comprehensive ultrasonic rebound detector, which can measure the rebound value, sound time and sound velocity.It is suitable for nondestructive testing of compressive strength of ordinary concrete in various construction projects.
|
waterproof rating:IP65 screen size:5inch volume:195X140X45mm weight:0.85kg |
|
Ultrasonic indication value error |
±0.1μs |
|
Ultrasonic transducer working frequency |
50KHz |
|
Instrument ultrasonic frequency range |
5Hz~500KHz |
|
Rebound gauge nominal kinetic energy |
2.207J |
|
Spring stiffness |
785.0±40.0(N/m) |
|
Impact length of impact rod |
75.0±0.3 mm |
|
The rebound value indicates the value error |
≤±0.5 |
|
Rebound value steel anvil rate set average |
80±2 |
|
power supply mode |
Large capacity lithium battery, power supply time more than 8 hours |
|
operating ambient temperature |
-10℃~40℃ |
|
packing specification |
Material: engineering plastic volume:420×140×335mm weight:5.5kg |
![]() |
The new upgrade
New upgrade, the use of three shell design, waterproof, dustproof, shockproof
|
1 |
| 2 |
The compressive strength of concrete can be tested by rebound method and ultrasonic rebound method, which can not only measure the rebound value, but also measure the sound velocity, simple and convenient.
|
![]() |
![]() |
Using imported sensors and advanced ARM processor, the test is fast and accurate, and the test results can be obtained by field analysis.
|
3 |
| 4 |
Can do other language interface, and with tips, quick learning can be field testing. |
|
|
|
||
| Features | |||||
| 1 | New upgrade, the use of three shell design, waterproof, dustproof, shockproof; | ||||
| 2 |
The compressive strength of concrete can be tested by rebound method and ultrasonic rebound method, which can not only measure the rebound value, but also measure the sound velocity, simple and convenient. ; |
||||
| 3 |
Using imported sensors and advanced ARM processor, the test is fast and accurate, and the test results can be obtained by field analysis; |
||||
| 4 |
Can do other language interface, and with tips, quick learning can be field testing; |
||||
| 5 |
The instrument can store 4000 sets of data and record the test date, which is convenient for users to view and manage.USB interface can quickly import data to the upper computer for analysis and processing; |
||||


Q: Are your company a trading one or a factory?
A: Factory+ trade (integration), More than 10 years focusing on test instruments field.
Q: After an order is placed, when to deliver?
A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days Please be aware that our production lead times depend on specific items and item quantities.
Q: What about the warranty with after-sales services?
A: The testing machine is guaranteed for 12 months by gaotiejian, we can help you to repair your problem con troller freely, even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q: What about the product' services and qualit?
A: Each instruments must be carried out 100% quality examination and test when shipping and delivery goods Product use training, each of our product provide video training to show you how to install operate We can arrange engineer to train the operation of equipment to customer s company when you need. products are widely recognized and trusted by users.
