Product Description

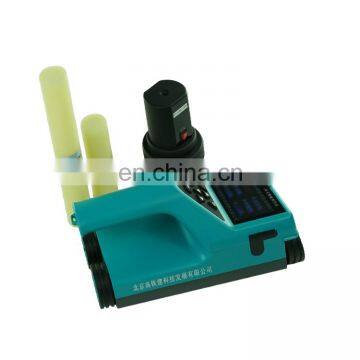

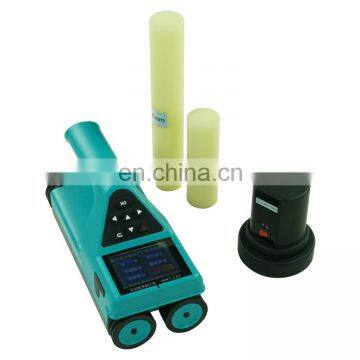

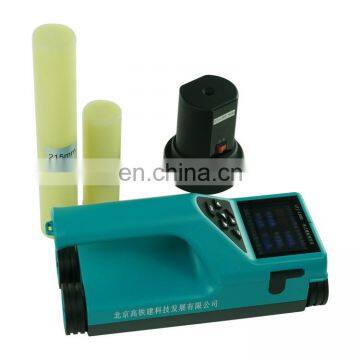

Floor thickness gauge

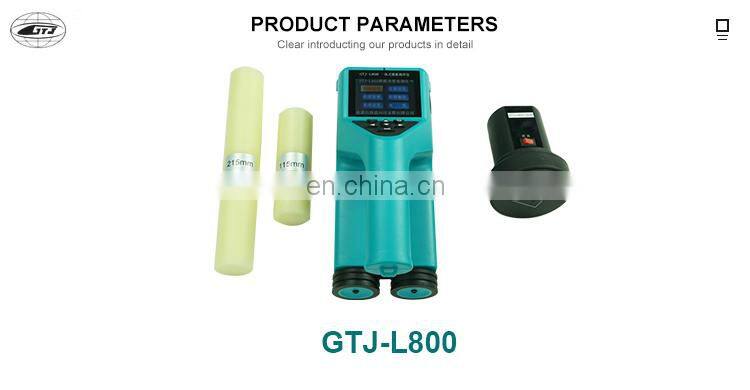

Gtj-l800 floor thickness detector (all-in-one machine) is a portable instrument suitable for non-destructive testing of concrete or other non-ferromagnetic medium thickness measurement;When in use, the transmitting probe and the receiving probe are placed on two opposite test surfaces of the floor respectively to transmit and receive electromagnetic signals. The instrument measures the thickness of the floor according to the received signal strength.
operation interface:(All the operating interfaces can be modified to other languages according to your requirements)
|
Parameter setting interface |
Function selection interface |
Start measurement interface |
|
Front and rear locking interface |
Fully locked interface |

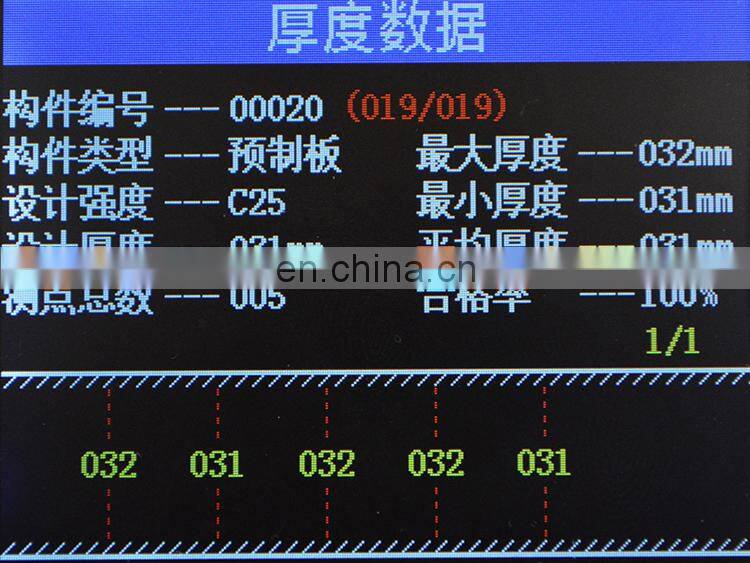

Data view interface |
|
Thickness test range |
20~850mm |
|
test precision |
20~350mm ±1 351~600mm ±2 601~850mm ±4
|
|
data storage capacity |
950component*1000measure point. |
|
Host Parameters |
screen size:2.8inch Liquid crystal resolution:240×320 volume:220×93×110mm weight:0.6kg |
|
power supply |
Both the main engine and the transmitting probe have built-in lithium batteries |
|
Operational Reliability |
temperature:-10℃~40℃ Direct sunlight should not be allowed for a long time |
| Features | |||||
| 1 |

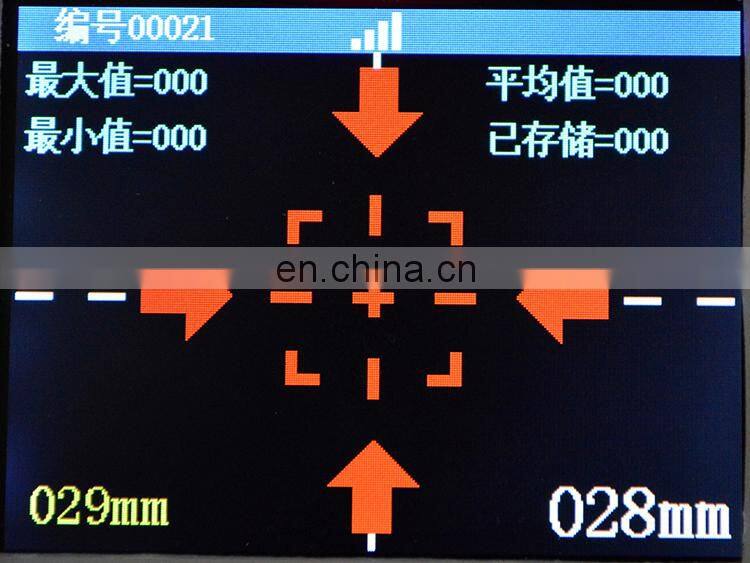

Real-time positioning function, arrow direction indicates the position of transmitting probe, simple test process; |
||||
| 2 |
Wide range and high accuracy of thickness measurement; |
||||
| 3 |
The stored component can be detected continuously. |
||||
| 4 |
TF card storage makes storage and transmission more convenient and fast. |
||||
| 5 |
Instrument calibration can correct the deviation caused by temperature or environment; |
||||
| 6 |
Special computer software for data analysis, can quickly generate test report; |
||||
| 7 | The integrated design of the main engine makes it easy to operate and carry. | ||||
Q: Are your company a trading one or a factory?
A: Factory+ trade (integration), More than 10 years focusing on test instruments field.
Q: After an order is placed, when to deliver?
A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days Please be aware that our production lead times depend on specific items and item quantities.
Q: What about the warranty with after-sales services?
A: The testing machine is guaranteed for 12 months by gaotiejian, we can help you to repair your problem con troller freely, even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q: What about the product' services and qualit?
A: Each instruments must be carried out 100% quality examination and test when shipping and delivery goods Product use training, each of our product provide video training to show you how to install operate We can arrange engineer to train the operation of equipment to customer s company when you need. products are widely recognized and trusted by users.
