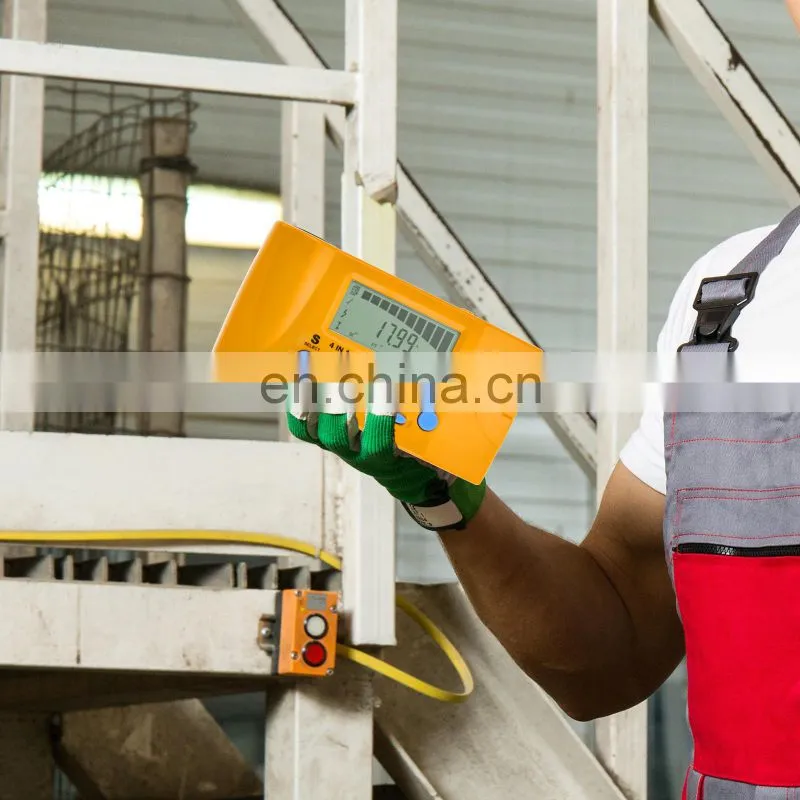

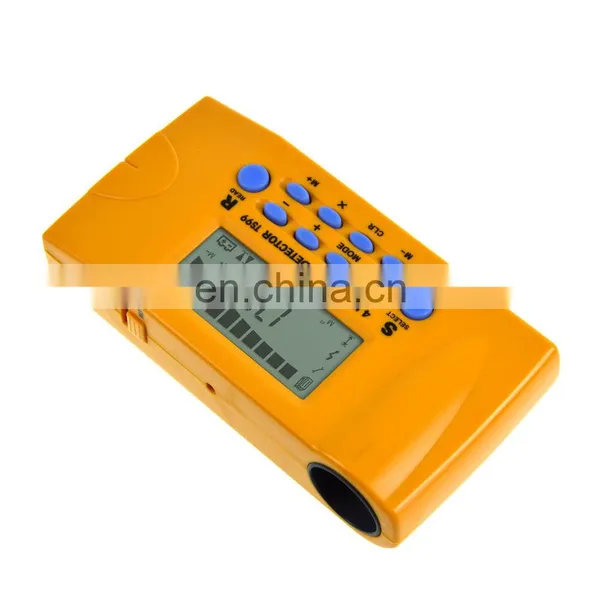

All-sun TS99 Ultrasonic Range Finder Distance Detector Household Detector Stud/Metal/AC Voltage/Distance Laser Detector 4in1

Introduction

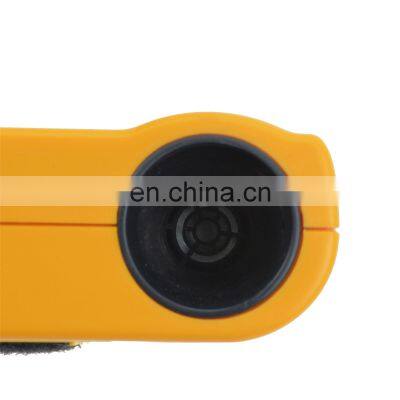

This detector adopts the technology of ultrasonic and can measure distance, area and volume. It has the functions of laser location, selectable starting point, data storage, auto power off and so on. In addition, It can detect and locate metal, AC voltage, stud. It can be used in construction, fitment and etc.

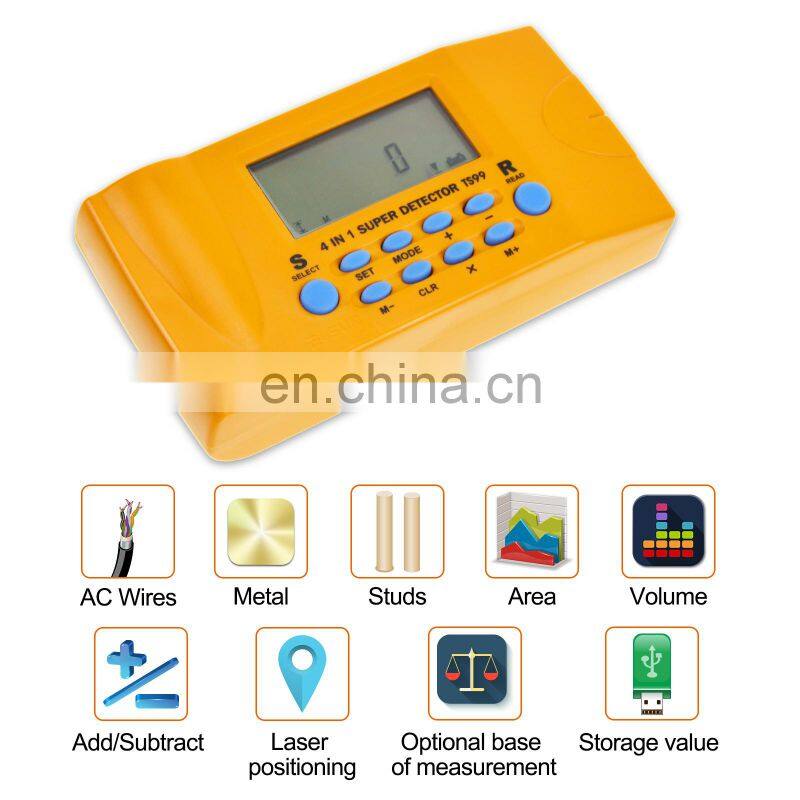

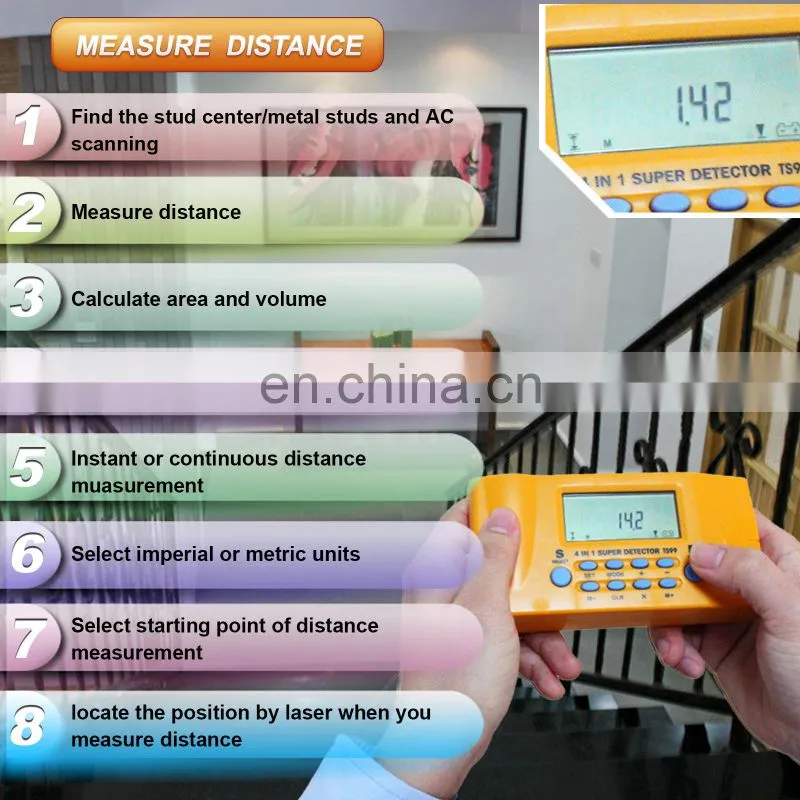

Features

1. Measure distance.

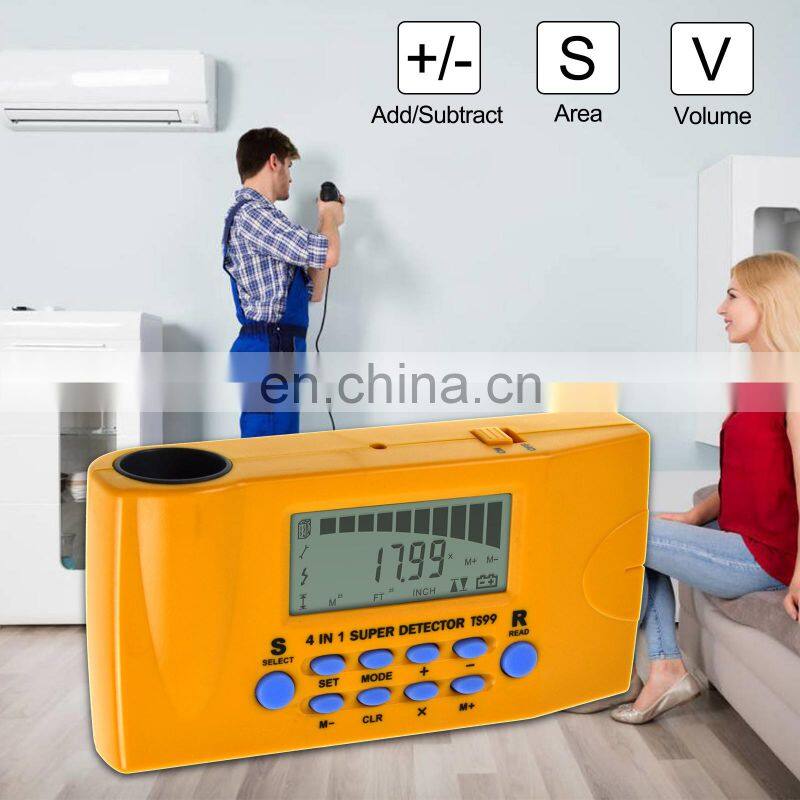

2. Addition or subtraction computation of distance values.

3. Calculate area and volume.

4. Store current reading, display and erase the stored reading.

5. Instant or continuous distance measurement.

6. Select imperial or metric units.

7. Select Starting point of distance measurement.

8. Locate the position by laser when you measure distance.

9. Find the stud center.

10. Find wood and metal studs.

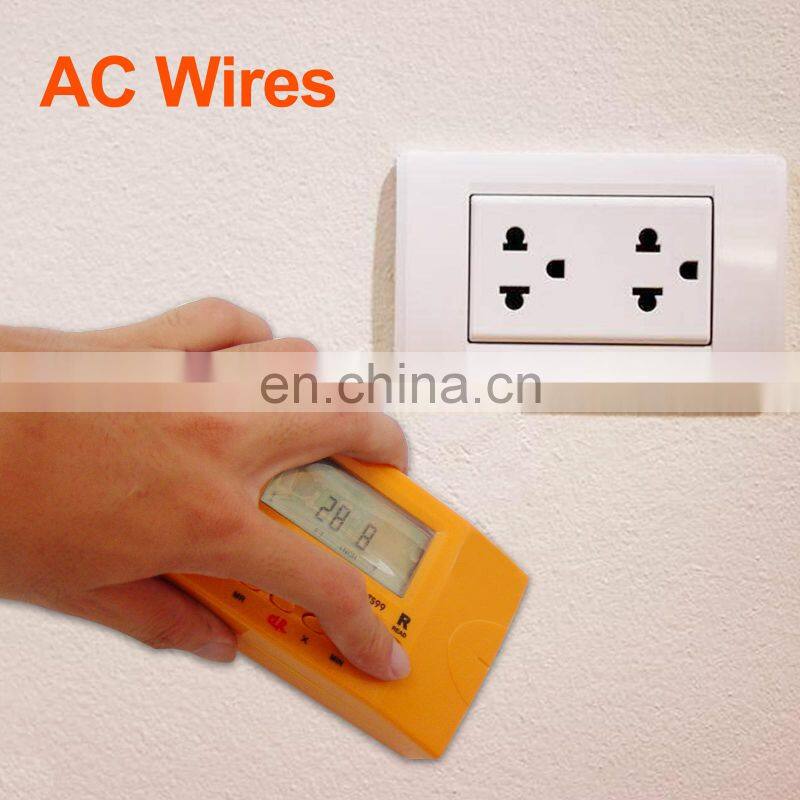

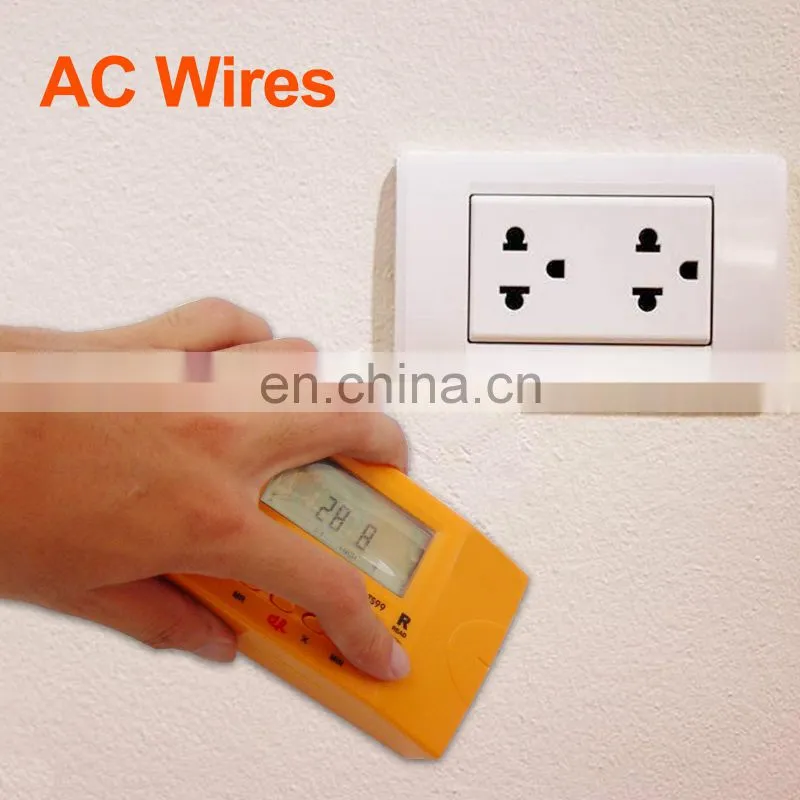

11. AC scanning to trace hot wire.

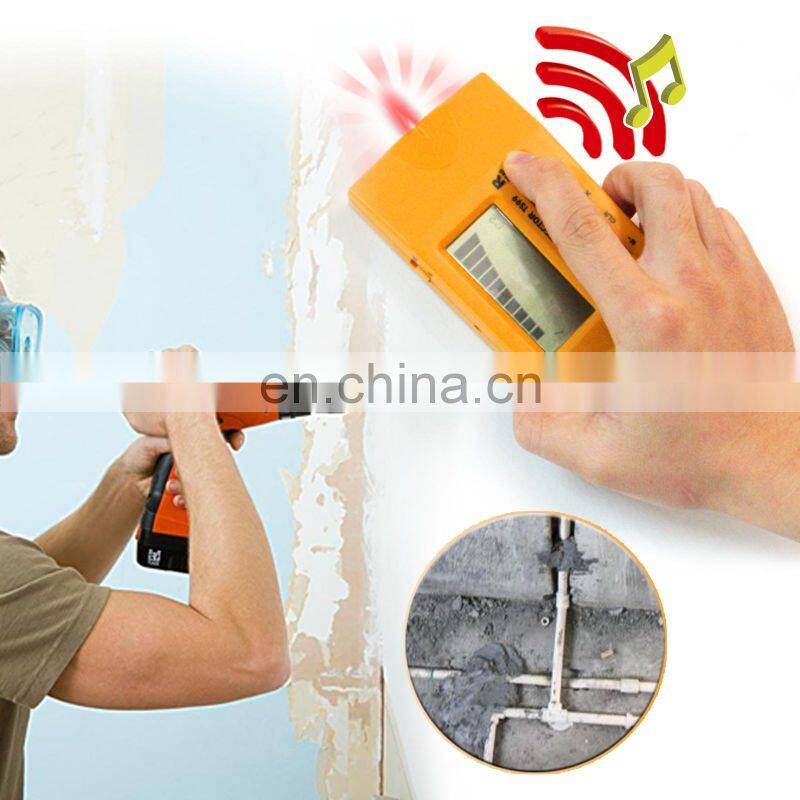

12. Metal scanning for finding nail, pipe, rebar, and other hidden metallic object.

13. Low battery indication.

14. Auto power off / Manual power off.

Specification

Distance Measurement Range: 0.4m to 18m

Distance Measurement Accuracy: ±(0.5% reading + 1 digit)

Stud Detection Depth: ≤12mm (Wood stud of 30x30mm)

Metal Scan Depth: ≤25mm (Iron pipe of φ20mm)

AC Wire Scan Depth: Typical depth of 5cm for 90-250V at 50-60Hz.

Operation Condition: -7°C to 40°C, <75%RH

Storage Condition: -20°C to 50 °C, <85%RH

Battery: 6F22, 9V

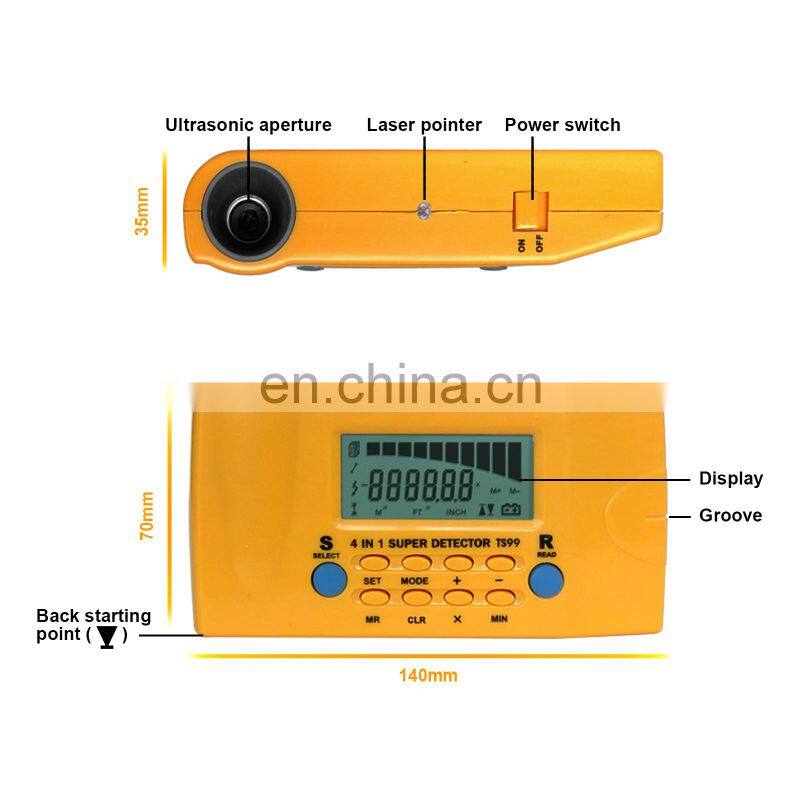

Dimension: 140*70*35mm

Weight: about 190g
