Poly Bag Inserter for Placing Liner in Carton
- Shenzhen, China
- T/T
- 45 days
You May Like
-
Poly Bag Inserter for Drums
-
Spouted Pouch Filler and Capper
-
Carton Forming Sealing Machine - Cartoning Station
-
Fully-automatic Bag in Box Filler for Webbed 2-25L BiB Bags
-
Fully-automatic BiB Filling Machine Bag in Box Packaging Line
-
Form-Insert-Seal Monoblock Cartoning Machine for Bag-in-Box Packaging
Product Details
| Brand Name | Calmus | Place of Origin | China | |
| Model Number | CL71 | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 Year Warranty | |
| Weight | 3,000 kg | Dimension(L*W*H) | 3,300*2,800*2,600mm | |
| Voltage | 3 Phase | Usage | Other Forming Machine | |
| Condition | New | Power(W) | 2kW | |
| Automatic Grade | Automatic |
Product Description

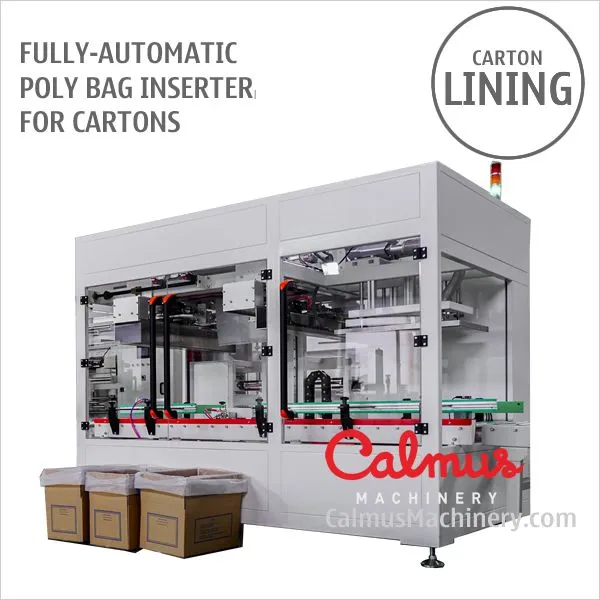

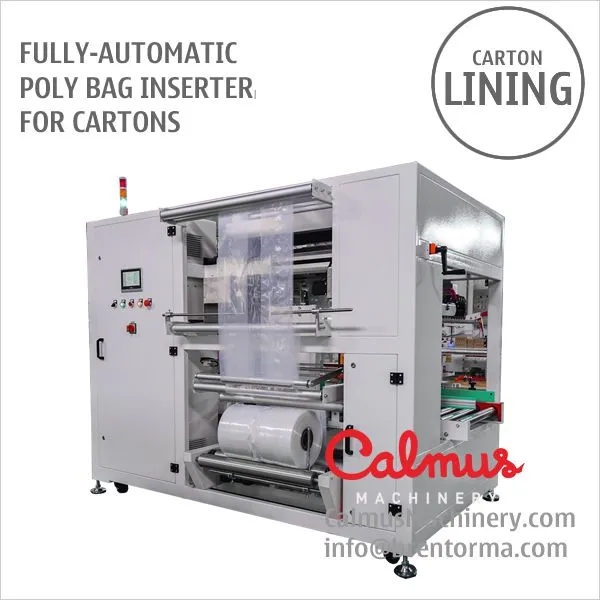

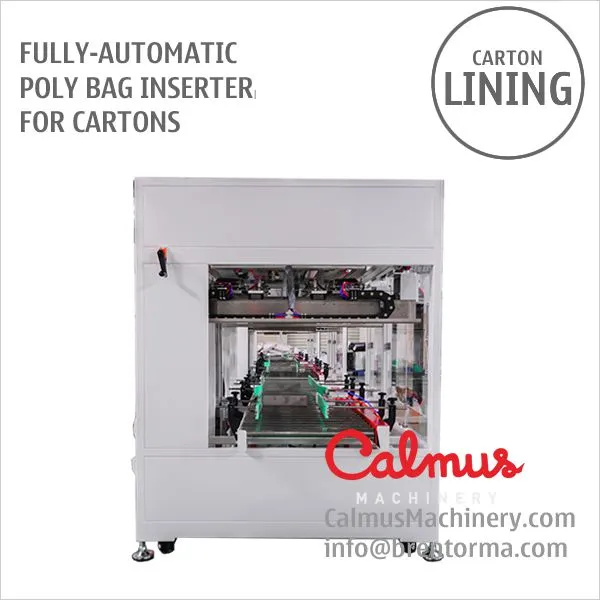

Fully-automatic Bag Inserter for Placing Liner in Carton
Poly bag inserter for placing liner in carton box. This China-made fully-automatic bag inserting machine inserts a poly bag in a box from a roll stock film, opens and cuffs the bag over the carton flaps, blows air to extend the bag to fit the internal wall of carton better. The bag inserter reduces labor and material costs, is simple to operate and easy to adjust.
This is an ideal machine for bulk box packaging of bread rolls, edible oil and fat, fruit and vegetable, granules and nuts, meat and fish, caps and closures, golfs and other. It will be more efficient and save more labor if this poly bag inserter works with a carton erector as the combination can be an automatic lined carton forming line.
Specifications:
Inserting capacity: 6-7 cartons/min
Film width: 460-840mm
Applicable carton dimensions: L250-550*W200-400*H150-40 0mm, also can be customized
Power supply: 3 phase, 4.5 kW
Compressed air: 6 bar
Air consumption: 100 NL/min
Machine dimensions: L3322*W2177*H2350mm (for reference only)
We are also able to manufacture high-speed bag inserter with 12 cartons/minute.
