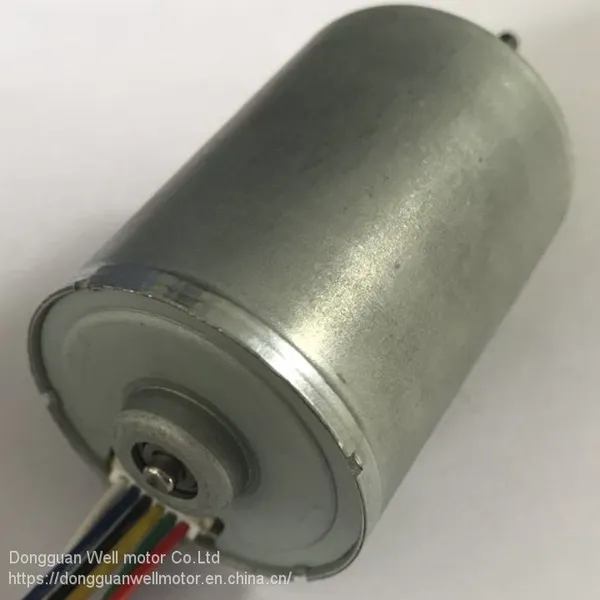

BL3650 PWM Pulse Wide Speed Range BLDC Brushless With Long Life Motor
US$ 7 - 10
MOQ: 1 Piece
Key Specifications
Get Latest Price
Efficiency:
Other
Voltage(V):
12v,24v
Output Power:
20w
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
15 days
Related Products
-
BL2847 PWM Pulse Wide Speed Range Built-in Driver Brushless MotorUS$ 8 - 10MOQ: 1 Piece -
BL2418 DC Brushless BLDC Motor With Long Working HoursUS$ 8 - 18MOQ: 1 Piece
-
6volt 12v 33rpm Bldc Motor 25mm Low Speed Gear MotorUS$ 8 - 12MOQ: 1 Piece
-
Cylinder Shape DC12V/24V Speed 9 to 1170RPM Permanent Magnet Gear Motors 37mmUS$ 8 - 12MOQ: 1 Piece
-
BL2430 24MM BLDC Diameter rc Brushless MotorUS$ 5 - 7MOQ: 1 Piece
Efficiency
Other
Voltage(V)
12v,24v
Output Power
20w
USE FOR CAR,BICYCLE, HOME APPLICANE
1, Voltage:12.0V/24.0V
2, Can matching with gear box, Reduction ratio: 4,14,19,27,51,71,100,139,189,264,369,516,720 etc.
3, Direction Clockwise/Counter-clockwise rotation
4, PWM Pulse wide speed range
5. FGS peed feedback signal
6, Over-current protection
Over-voltage protection
Under-voltage protection
7, 10000H life time
8, Shaft:8.0mm diameter,usually 7mm D shaft
9, Mounting holes:4-M3.0
10,Big torque around 21Nm, Big stall torque around 30Nm, Big power around 20W
