ISO7866 /SO9809-3 Aluminum and Steel Oxygen Cylinder,Alloy 6061/37Mn Medical Oxygen Gas Cylinder
- T/T Credit Card
You May Like
-
ML6 Home Oxygen Therapy Devices With Aluminum Cylinder for Oxygen Inhaler Regulator for Oxygen Cylinder
-
0.3L Small Oxygen Bottle,Oxygen Cylinder for Aluminum Medical Cylinder
-
MD Serial Small Oxygen Aluminum Cylinder With CGA870 and Regulator, Cylinder Aluminium Box,supplying System
-
HG-IG 2L/4L/10L Oxygen Aluminum Portable Gas Cylinder Medical Oxygen Cylinder With TUV, BV, CE
-
M122/M150 High Pressure Aluminum AA6061 Emergency Pressure Medical Oxygen Cylinder Bag for Domestic
-
HG-IG New 1L-50L Medical Oxygen Cylinder With CGA870 Valve Medical Urgent Use
Product Description

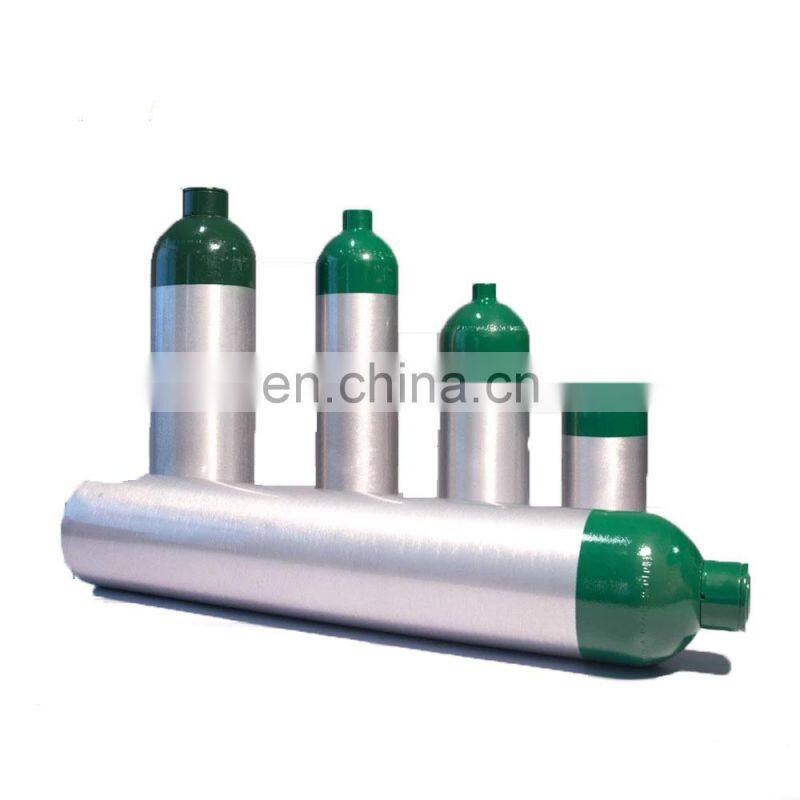

Aluminum Cylinders
Portable medical oxygen respirators are produced through advanced technology. Comparing with conventional respirators, we use aluminum or aluminum composite cylinders instead of steel ones, with weight reduction of 40%-70%. More preferable for people with breathing problems. Full specifications meet different
customers' demands.HG-IG Tech supplies two types of O2 cylinders for your choice: all aluminum cylinders and aluminum composite cylinders.
HG-IG Tech medical cylinders are the ideal choice for home oxygen therapy, emergency medical services and pre-hospital care, as well as hospitals, nursing homes and other medical institutions.
Product technical(M Madel)
| Mdel | Capacity(Water) | Service(psi) | Outer Diameter | Length | Weight |
| M2 | 0.3 | 2216 | 63.5 | 145 | 0.3 |
| M4 | 0.7 | 2216 | 81.5 | 221 | 1.5 |
| M6 | 1 | 2216 | 51.8 | 11.8 | 2.3 |
| ML6 | 1.2 | 2015 | 111 | 7.8 | 2.9 |
| ML7 | 1.4 | 2015 | 111 | 9.1 | 3.2 |
| M9/C | 1.7 | 2015 | 111 | 10.9 | 3.7 |
| D | 2.9 | 2015 | 111 | 16.4 | 5.4 |
| M22 | 3.9 | 2216 | 133 | 16.3 | 8 |
| E | 4.6 | 2015 | 111 | 25.4 | 7.8 |
| M60 | 10.5 | 2216 | 184 | 22.9 | 22.3 |
| M90 | 15.7 | 2216 | 184 | 32.6 | 30.3 |
| M122 | 21.4 | 2216 | 203.2 | 32.6 | 39.5 |
| M150 | 28.9 | 2015 | 203.2 | 47 | 48.8 |
PRODUCT SHOW

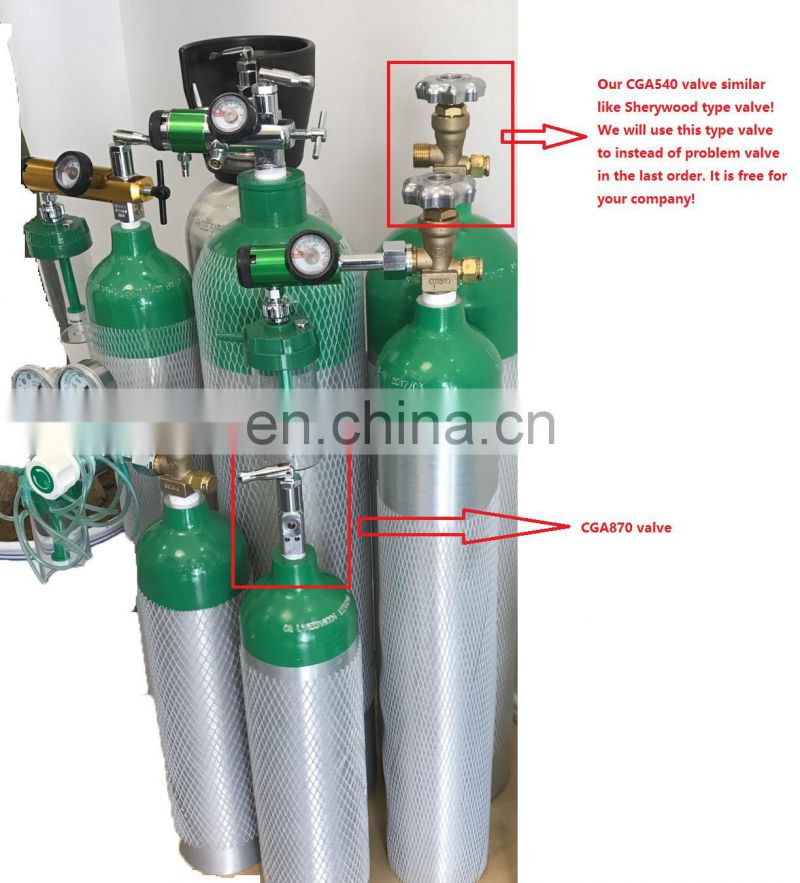

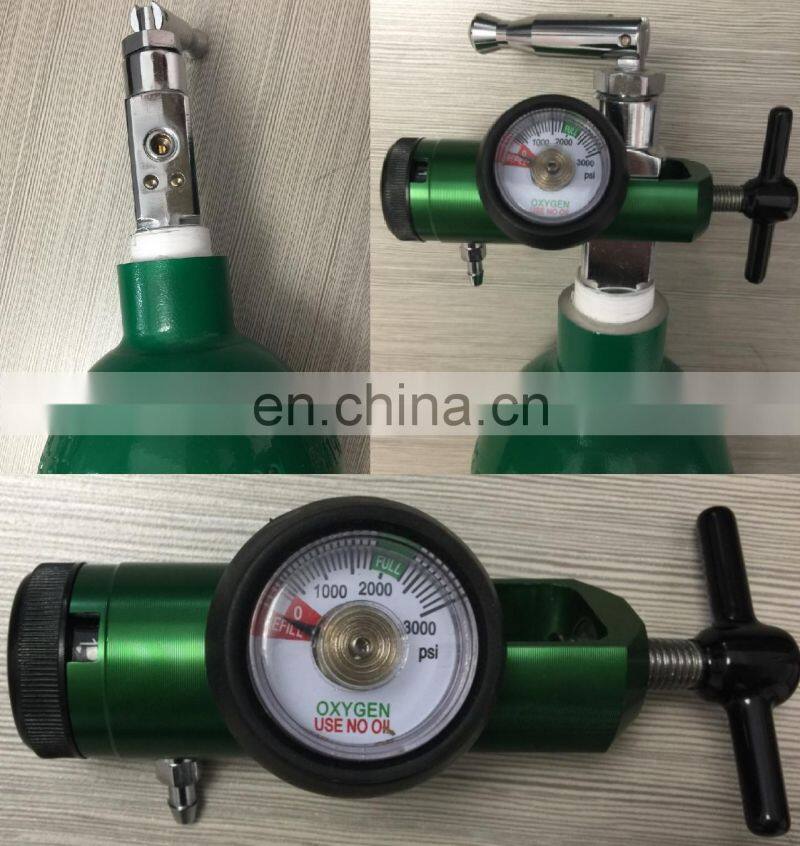

Aluminum cylinder with CGA870 valve and Regulator
Valves and regulators are supplied together with aluminum medical portable oxygen cylinders if needed. We offer free assembling and free leakage testing to assure safety.
Product name: CGA standard cylinder valve
Type: CGA870
Matrial: Brass
Medium : O2
Certificate: CE,API
Nominal working pressure: 2015psi
DN mm: 1.6
Inlet thread:3/4-16UNF
Outlet thread: Post type
Safety device temperature or pressure: 3360psi & 165 °F
Frame modality: Axial connection type

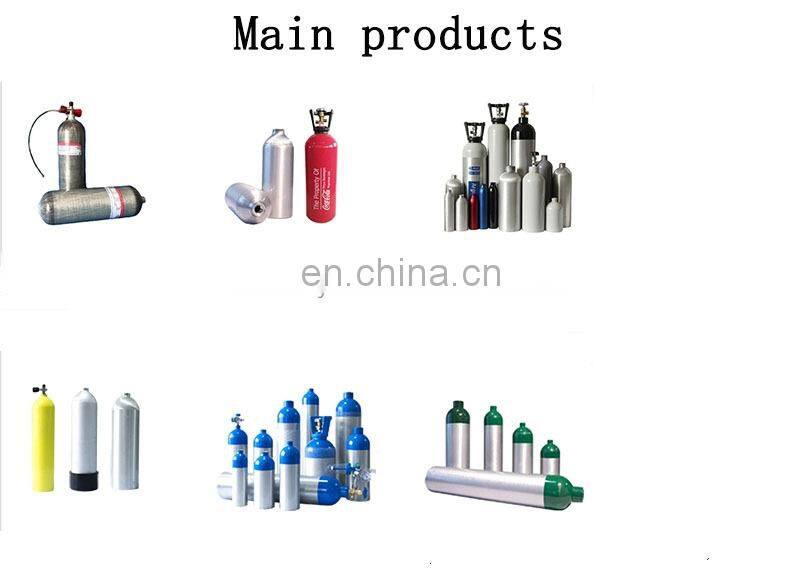

MAIN PRODUCT

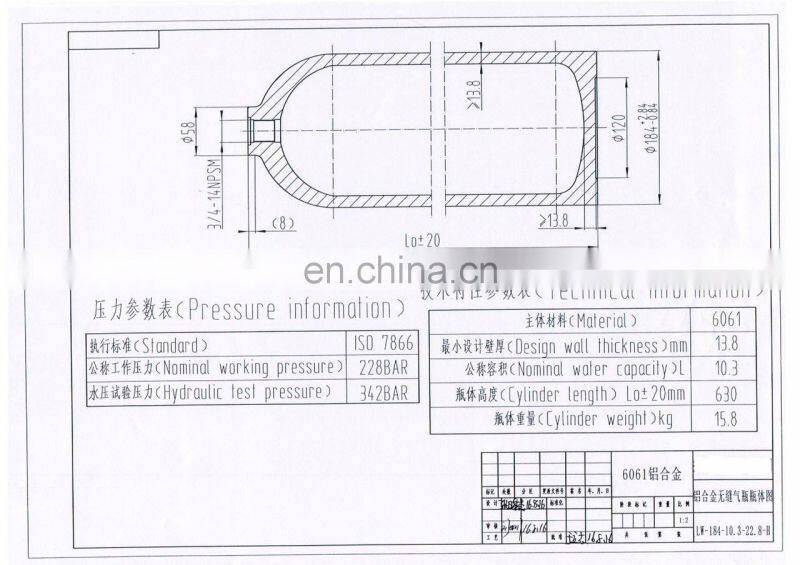

4.6L DRAWINGS
OTHER PRODUCTS

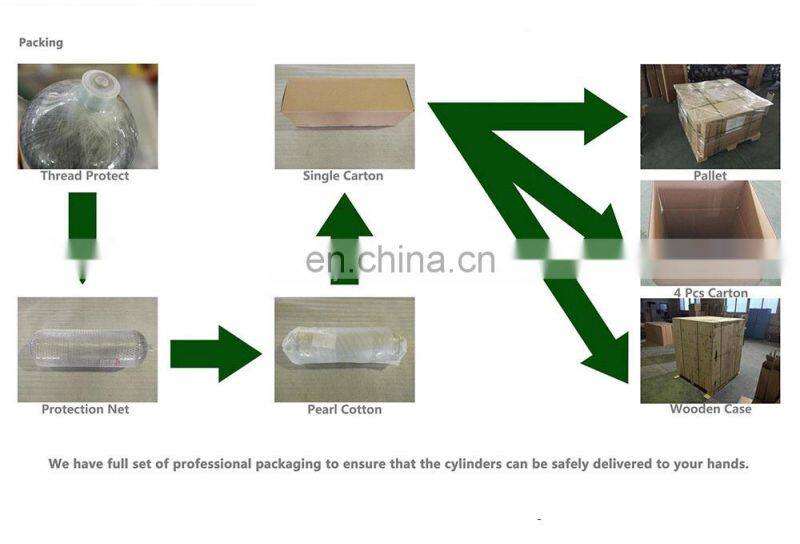

Packaging & Shipping
Payment term:
T/T, Western Union, Paypal, L/C
Trade term:
EXW or FOB or CFR or CIF or CPT or CIP
Packing detail:
Wooden box, ply-wood box, carton box, pallet
Delivery time:
It depend on the purchasing quantity and the stock condition, if the warehouse have, we may arrange the delivery in several days, or a few days after receiving the deposit.
Min. order:
If the ordered products are in stock. No MOQ limited.
Ordered quantity at 200pcs, price will be more favorable.
As one professional manufacturer of medical gas devices with accessories,
Which has pass the quality management system as ISO9001 & ISO13485, and get the products’ certification as GB5099, GB150, ISO9809, ISO7866, CE & Class I Medical device license in China.
With the globalization of The economic, We always adhered to the tenet of " Quality First, Customer Supreme" purpose, strengthened cooperation with domestic and foreign merchants, Using the First-Class quality & reputation for the Chinese medical gas devices industry from "Made In China " to make the transition to "Designed In China " to make our due contribution. Today's efforts are for successful of tomorrow.
We believe that we will be your permanent partner in the future.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 35-45 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
