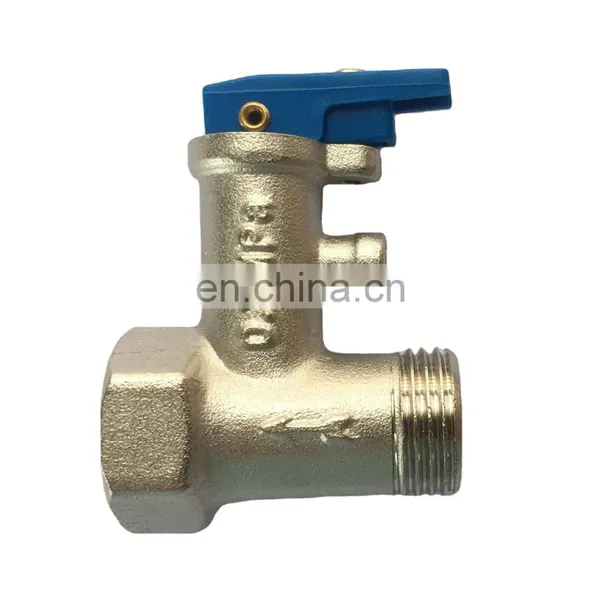

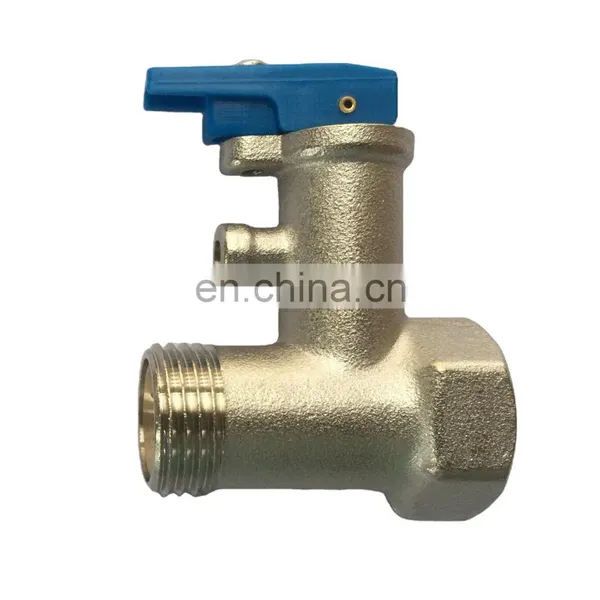

Electric and Solar Water Heater Brass Safety Valve 1/2" 7 Bar With Fixed Blue Handle
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2002
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric or Solar Water Heater Brass Safety Valve 1/2\" 8 Bar With Free Blue HandleNegotiableMOQ: 1 -
Water Heater Mini Brass Safety Valve 1/8\" 6.5 BarNegotiableMOQ: 1
-
Electric and Solar Water Heater Brass Safety Valve 1/2\" 7 Bar With Free HandleNegotiableMOQ: 1
-
Electric and Solar Water Heater Brass Safety Valve 1/2\" 6 Bar With Free HandleNegotiableMOQ: 1
-
Electric and Solar Water Heater Brass Safety Valve 1/2\" 8 Bar With Blue Free HandleNegotiableMOQ: 1
Product Description
Weiling Safety Valve Function:

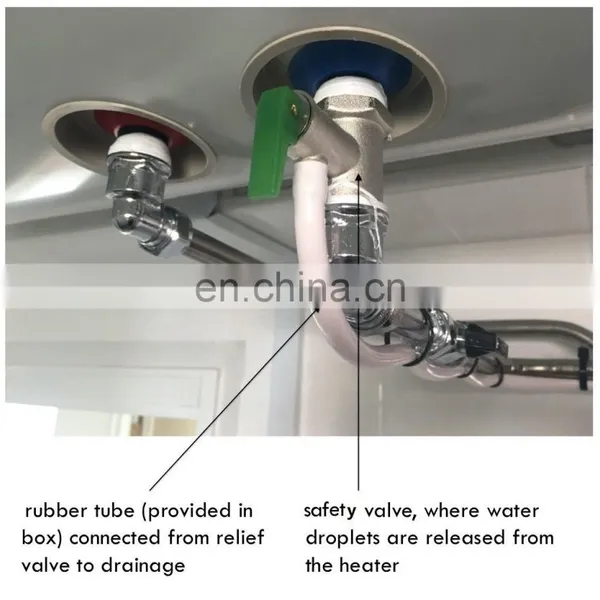

Safety component used on electric water heaters with capacities from 10 to 300 Liters to protect against over-pressure inside the water tank and prevent water from escaping (dry heating case).The safety valve is also dedicated to avoid explosion of the water tank (Human safety). The valve has to be watertight at the nominal water pressure, and particularly the area around the lever -- no droplet. The valve should be composed of 3 main functions A, B & C and a lever(lever could be optional in sometimes.):
1. Safety valve A: Normally closed, and when pressure increases in tank and overcomes the opening pressure: it opens and allows the exit of hot water/vapor from the security outlet (direction A). Then the pressure decreases and it moves back to closed state.

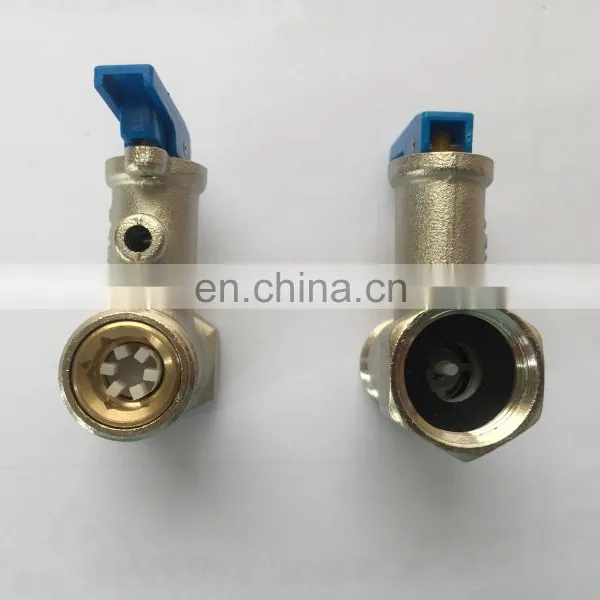

2. Non return B: Stops the water in the tank from exiting to inlet pipe network, this prevents emptying the tank and have a dry heating case that destroys the water heater and may cause excessive heating, and also fills the inlet network with hot water.
NOTE: The return valve C has to open and allow water to pass from water heater tank back to water inlet and
network (direction B), only if pressure on the water heater side is above 1.8 to max 4 bar(to be different depends on different water tank) the water pressure on the inlet side. Target of this requirement is to avoid continuous water drops through the safety valve A.
3. Entry C: When the user opens the hot tap, this valve should open to let enter cold water inside the tank equivalent of the exiting hot water (direction C). It should remain open as long as the hot tap is open, and return closed immediately when the tap is closed. It should respond to low values of the network pressure.
Safety component used on electric water heaters with capacities from 10 to 300 Liters to protect against over-pressure inside the water tank and prevent water from escaping (dry heating case).The safety valve is also dedicated to avoid explosion of the water tank (Human safety). The valve has to be watertight at the nominal water pressure, and particularly the area around the lever -- no droplet. The valve should be composed of 3 main functions A, B & C and a lever(lever could be optional in sometimes.):
1. Safety valve A: Normally closed, and when pressure increases in tank and overcomes the opening pressure: it opens and allows the exit of hot water/vapor from the security outlet (direction A). Then the pressure decreases and it moves back to closed state.
2. Non return B: Stops the water in the tank from exiting to inlet pipe network, this prevents emptying the tank and have a dry heating case that destroys the water heater and may cause excessive heating, and also fills the inlet network with hot water.
NOTE: The return valve C has to open and allow water to pass from water heater tank back to water inlet and
network (direction B), only if pressure on the water heater side is above 1.8 to max 4 bar(to be different depends on different water tank) the water pressure on the inlet side. Target of this requirement is to avoid continuous water drops through the safety valve A.
3. Entry C: When the user opens the hot tap, this valve should open to let enter cold water inside the tank equivalent of the exiting hot water (direction C). It should remain open as long as the hot tap is open, and return closed immediately when the tap is closed. It should respond to low values of the network pressure.
Specification:
Size |
1/2" & 3/4" |
||||||
Material |
Refined Brass (EN12165) |
||||||
Setting Relief Pressure |
from 6-10 Bar or Can be Customized |
||||||
Surface |
Brass, Nickel or Chrome Can be Optional |
||||||
Thread |
BSP according to ISO 228-1(Other Thread can be customized) |
||||||
Packing & Delivery:
1. Each Piece is calibrated and tested before packing(100% test);
2. Every 10 pieces packed inside a strong neutral inner box, to have best protection;
3. Every 10 or 20 inner box inside a strong neutral carton, and labeled;
4. Each carton striped and palletized before transportation;
5. LCL or FCL shipment are both acceptable & workable for us;
3. Every 10 or 20 inner box inside a strong neutral carton, and labeled;
4. Each carton striped and palletized before transportation;
5. LCL or FCL shipment are both acceptable & workable for us;
6. Normally, delivery time will be varied from 35 days to 50 days when PI confirmed & payment done.
Company Profile:
Started from a small workshop in the east coast of China, we has been dedicating ourselves day and night in the valve industry, developed over the years to be a professional valve manufacturer with advanced modern manufacturing facilities that earned its reputation for having long lasting valves.
The combination of innovative technologies including machining, assembly lines, and testing machinery, assures accuracy and reliability and enables us to offer comprehensive solutions designed to withstand various & strict demanding applications. Our skilled and dedicated engineers are there to find creative solutions for all kinds of challenging applications.
As a manufacturer we are committed to the industry's high demanding standards allowing our clients to benefit from our expertise. Weiling's long lasting products, specially the Safety Valve, are known for their reliability and accuracy and used be in every domestic electric or solar water heaters. We strive for constant improvement of our products and services through great teamwork.
Our success is built upon understanding our customer's needs, earning their trust and loyalty by finding innovating solutions for their demanding applications.
What started up as a dream is turning out to be a vivid reality, to make a better tomorrow!
Test Reports.
1. NBR O-Ring SGS Test Report.
3. S.S.304 Spring SGS Test Report.
4. Seal Cap(POM) SGS Test Report.
5. Shaft SGS Test Report.
6. Washer SGS Test Report.
7. Water Inlet Set SGS Test Report.
Safety Valve Quality Control:
1. Spring Test Machine--Spring to be tested before accepting from supplier.
2. Remove Spring Stress Before Assembling.
3. Work Bench Calibration & Test.
