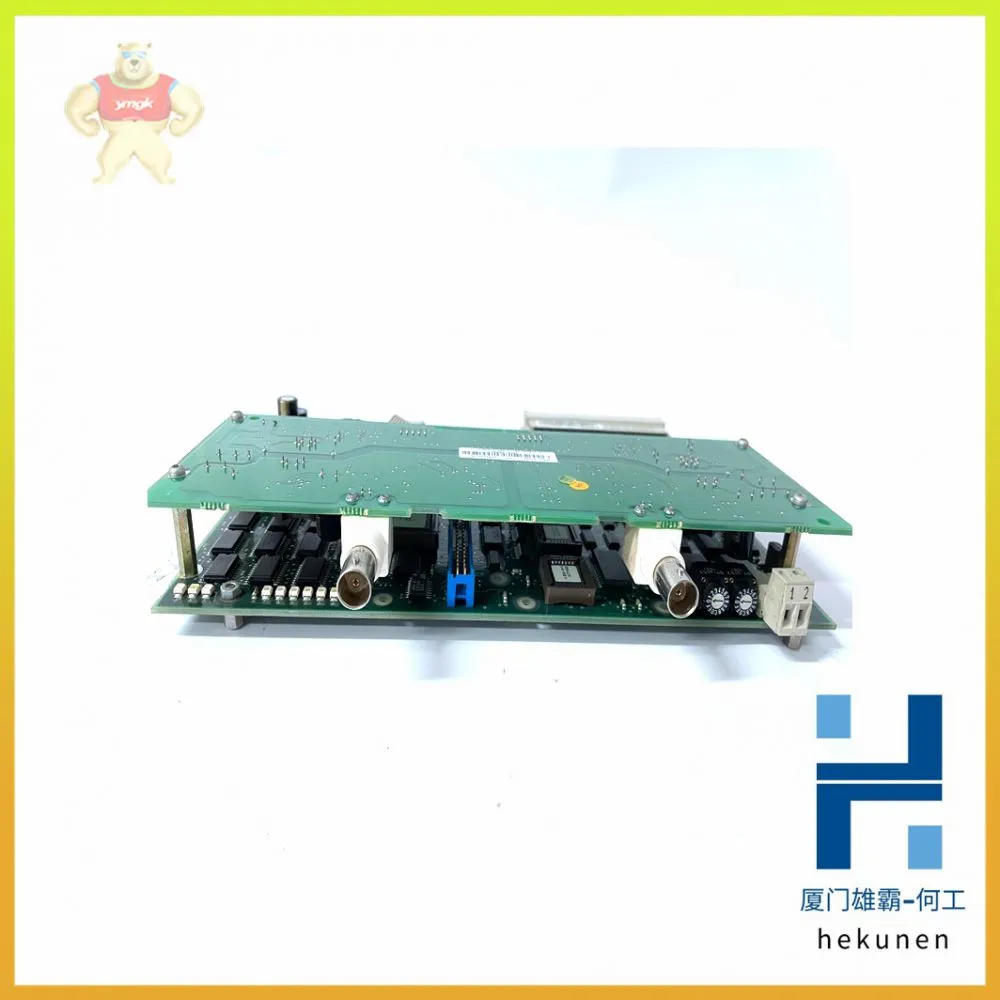

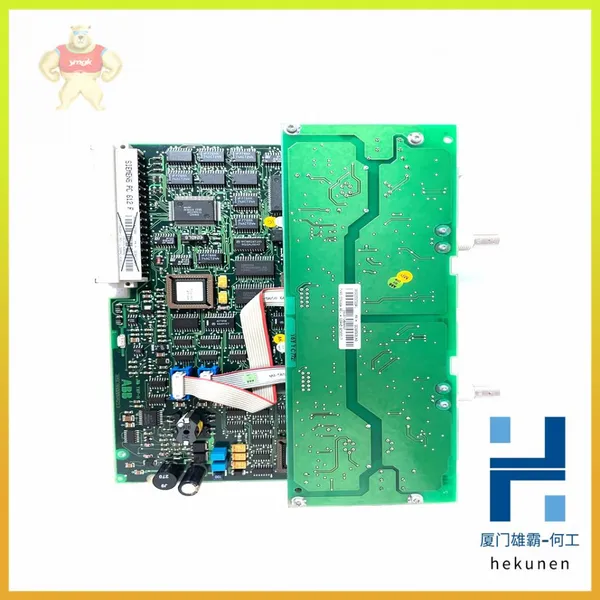

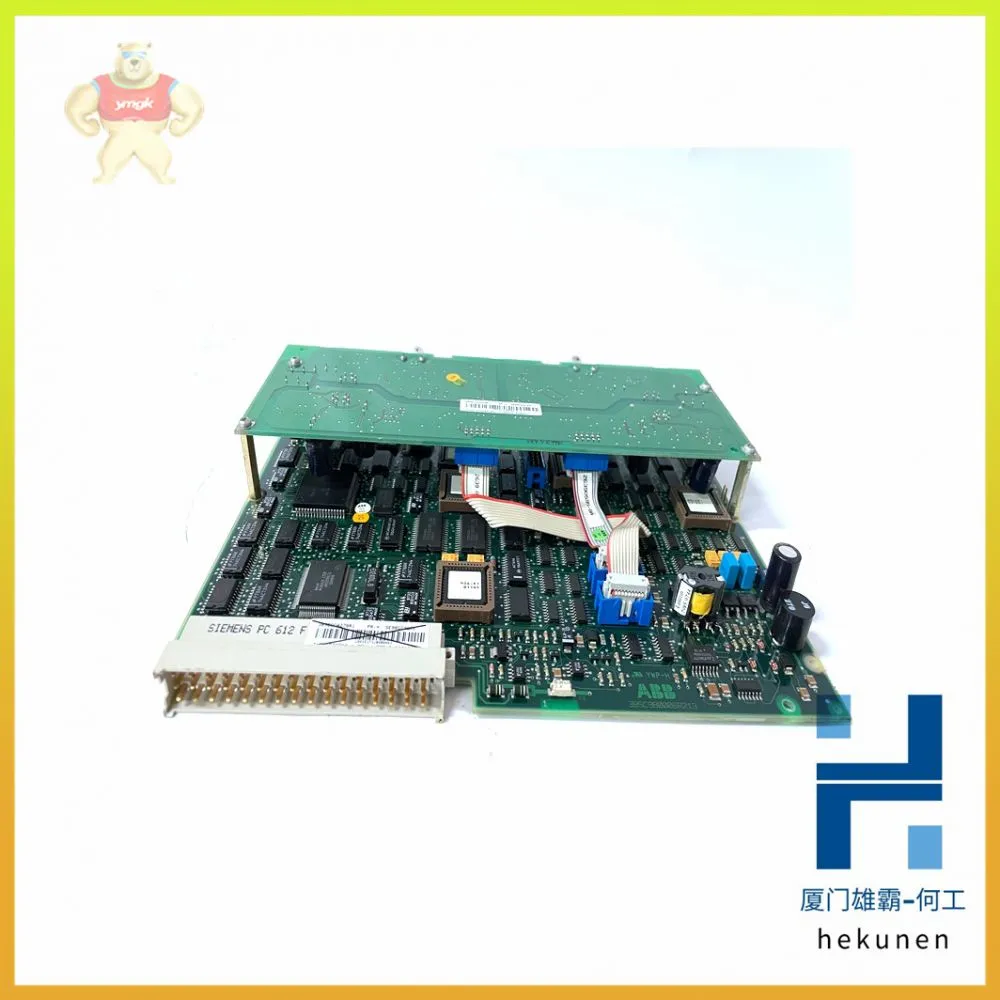

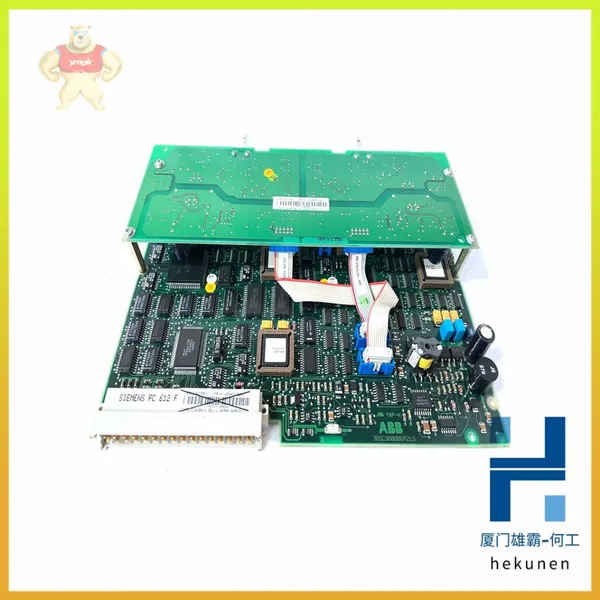

CI626A 3BSE005029R1 CI626V1 ABB One year warranty of bus administrator board
CI626A 3BSE005029R1 CI626V1 ABB One year warranty of bus administrator board
AC An abbreviation of Advant Controller (used in figures and tables). AF 100 An abbreviation of Advant Fieldbus 100 (used in figures and tables). Advant Controller Advant Controller refers to Advant Controller 70, Advant Controller 110/160 and Advant Controller 400 Series (Advant Controller 410, Advant Controller 450, and Advant Controller 460). 800xA for AC 100 800xA for AC 100 is a connectivity package integrating Advant Controller 100 Series controllers via Advant Fieldbus 100 to the 800xA System. AC 100 OPC Server AC 100 OPC Server provides OPC client applications access to process objects in Advant Controller 100 Series. AF 100 Station AF 100 Station is the name of the “stations” on Advant Fieldbus 100. An AF 100 Station is each item connected to the Advant Fieldbus 100, for example, Advant Controller 70, Advant Controller 110/160, Advant Controller 400 Series, S800 I/O Station, or AC 100 OPC Server. Bus A bus is the hardware connection between all stations (for example cables, modems), without any protocol. It consist of one or more coaxial cables. twisted pair cables, or optical cables. Bus cables can be redundant on Advant Fieldbus 100, see Figure 9
Our Email: 2235954483@qq.com
contact number:13313705507
contacts：HE
us Administrator A Bus Administrator is a communication interface which has capability to manage the Advant Fieldbus 100. This means control the bus traffic and can be able to generate a new scheme for data sets added to the configuration. Bus master The communication interface that currently controls the bus traffic. The bus mastership is switched among the Bus Administrators on the bus. Bus segment Part of the Advant Fieldbus 100 built up by one media type, coaxial twisted pair or optical media. An Advant Fieldbus 100 can be built up by several segments where the bus segments are connected with a TC513/TC514/TC515/TC630 modem. Cable 1 Cable 1 is the bus connected to the upper connector on the communication devices. See Figure 11. Cable 2 Cable 2 is the bus connected to the lower connector on the communication interfaces. See Figure 12. CDP Cyclic Data Packet; data packet configured to the communication interface. A CDP is the representation of a Station status, an S800 I/O station, an S800 I/O module and a DataSet Peripheral on the Advant Fieldbus 100. Coaxial media Coaxial media comprises modem cables, modems and coaxial bus cables. Coaxial Modem A coaxial modem is a device that connects the communication interface with the coaxial bus cable. The CI626 has integrated coaxial modems. Communication Interface A communication interface is a device that can communicate on the Advant Fieldbus 100 communication link
Communication Link A communication link is the hardware (for example cables, modems) and the low layers of the protocol that enables the communication interfaces (stations) to exchange data. A communication link can not be redundant on Advant Fieldbus 100. DAT Data base element representing an INTEGER, INTEGER LONG or REAL value or 32 BOOLEAN values. The DAT also contains a VALID flag and a NAME string. DataSet (DS) Data base representation of a block of data to be transmitted. In MasterPiece 90 and Advant Controller 110/160, the DataSet is used for transmission on MasterBus 90 or Advant Fieldbus 100. DataSet in MasterPiece 200 and in Advant Controller 400 Series is used for transmission on MasterBus 300. DataSet Peripheral (DSP) A data set function for communication on Advant Fieldbus 100. In the controller the DataSet Peripheral is represented with a data base element. Drop Cable The cable from a communication interface or coaxial modem to the coaxial bus cable. EventSet Time tagged events that are sent from an Advant Controller 70, Advant Controller 110/160 to an Advant Controller 400 Series and AC 100 OPC Server
