SGMDH-06A2A-YR26 Electronic 550w Power Supply Yaskawa Servo Motor

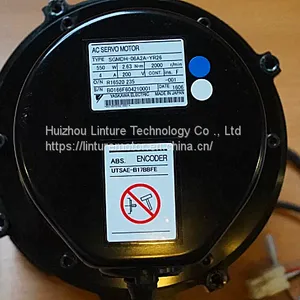

SGMDH-06A2A-YR26 Electronic 550w Power Supply Yaskawa Servo Motor thumbnail-1

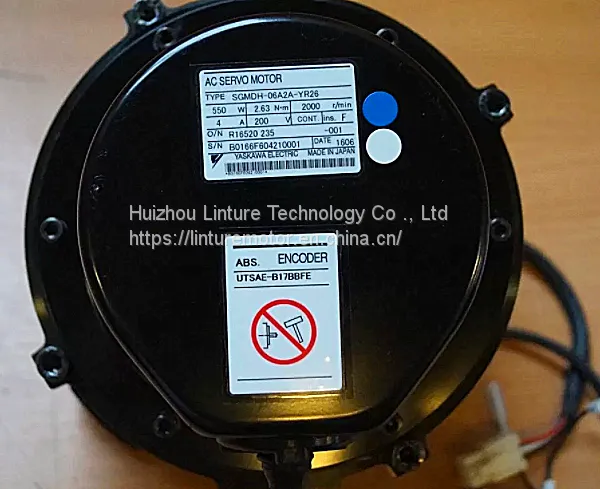

SGMDH-06A2A-YR26 Electronic 550w Power Supply Yaskawa Servo Motor photo-1
US$ 1 - 1000000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Yaskawa
Place of Origin:
Japan
Model Number:
SGMDH-062A-YR26
Contact Supplier Request Quote Chat Now
Huizhou Linchuang Technology Co ., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Yaskawa
Place of Origin Japan
Model Number SGMDH-062A-YR26
Type Servo Motor
Certification CE
Usage Other, universal
Construction Permanent Magnet
Efficiency IE 3
Protect Feature Explosion-proof
Voltage(V) 200V
Output Power 550W
Continuous Current(A) 4A
Speed(RPM) 2000R/MIN
Commutation Brushless
Brand: Yaskawa Mdoel: SGMDH-06A2A-YR26
Place Of Origin: Japan Power: 550W
Curent: 4.0A Voltage: 200V
Ins: A

High Light: ewing machine servo motor,electric servo motor


Industrial Servo Motor Yaskawa AC SERVO MOTOR 2.63NM 550W 4AMP 2000RPM SGMDH-06A2A-YR26


Specification
Categories Industrial Servo Motor
Brand Name: Yaskawa
Model Number: SGMDH-06A2A-YR26
Place Of Origin: Japan
MOQ: 1
Price: Negotiable
Payment Terms: T/T, Western Union
Supply Ability: 100
Delivery Time: 2-3 Work Days
Packaging Details: New In Original Box
Brand: Yaskawa
Model: SGMCS-02B3B11
Type: AC SERVO MOTOR
Power: 550W
Volatge: 200V
Current: 4.0A
Ins: A


OTHER SUPERIOR PRODUCTS

Yasakawa Motor, Driver SG- Mitsubishi Motor HC-,HA-
Westinghouse Modules 1C-,5X- Emerson VE-,KJ-
Honeywell TC-,TK- GE Modules IC -
Fanuc motor A0- Yokogawa transmitter EJA-
Stepper Motor Advantagesand Disadvantages
Advantages
1. The rotation angle of the motor is proportional to the input pulse.
2. The motor has full torque at standstill (if the windings are energized)
3. Precise positioning and repeatability of movement since good stepper motors have an accuracy of
3 – 5% of a step and this error is non cumulative from one step to the next.
4. Excellent response to starting/ stopping/reversing.
5. Very reliable since there are no contact brushes in the motor. Therefore the life of the motor is simply dependant on the life of the bearing.
6. The motors response to digital input pulses provides open-loop control, making the motor simpler
and less costly to control.
7. It is possible to achieve very low speed synchronous rotation with a load that is directly coupled to the
shaft.
8. A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the
input pulses.

NOTE

Avoid getting thinner on other parts of the Servomotor when cleaning the shaft.


Storage:


When the Servomotor is to be stored with the power cable disconnected, store it in the following temperature range:

Between −20°C and 60°C


Installation sites:

The Servomotor SGM and SGMP types are designed for indoor use.

Install Servomotor in an environment which meets the following conditions:

  1. Free from corrosive and explosive gases

  2. Well-ventilated and free from dust and moisture

  3. Ambient temperature of 0 to 40°C

  4. Relative humidity of 20% to 80% (non-condensing)

  5. Inspection and cleaning can be performed easily

If the Servomotor is used in a location subject to water or oil mist, install a shield cover over the Servomotor.

The Yamakawa sgmgv series servomotor is a spare part used for PLC / CNC automation parts. Our company is supplying huge spare and replacement parts in cooperation with major manufacturers of industrial automation machinery and PLC systems.
Manufacturer
Yaskawa Drives & Motion Division

Description
Sigma-5 Servo Motors, SGMGV, 200V, rated output = 1.3 kW, with 24VDC Brake
SGMGV-44A3A6E

Features
1Super high power rate (Extremely low inertia)
1Instantaneous peak torque (300% of rated torque)
1Mounted high-resolution serial encoder:
20 bits
1Maximum speed: 6,000 min-1
1Wide selection: 50 W to 1.0 kW capacity, holding
brake and gear options

Application Examples:
1. Semiconductor equipment.
2. Chip mounters
3. PCB drilling stations
4. Robots
5. Material handing machines
6. Food processing equipment


Product Tags: motor , controller , moudel
