Tethered UAV Power Station

Tethered Ground Power Station: DY3000B


Suitable for all DJI UAVs and various other brands of UAVs

(1) Overall dimensions: 460×380×320mm (L×W×H)
(2) Weight: approximately 19Kg (including cables)
(3) Rated Power: 2500w
(4) Tethered Cable: 53m or 110m
(5) Rated input voltage: 220VAC±10%;
Output voltage: 300-450VDC;
Output current: ≤8A;
(6) Integrated ground power station: including automatic cable winching system, power supply and management system
(7) Simple operation: one-button start/stop of power supply, one-button start/stop of automatic cable retracting, and manual button of cable retracting

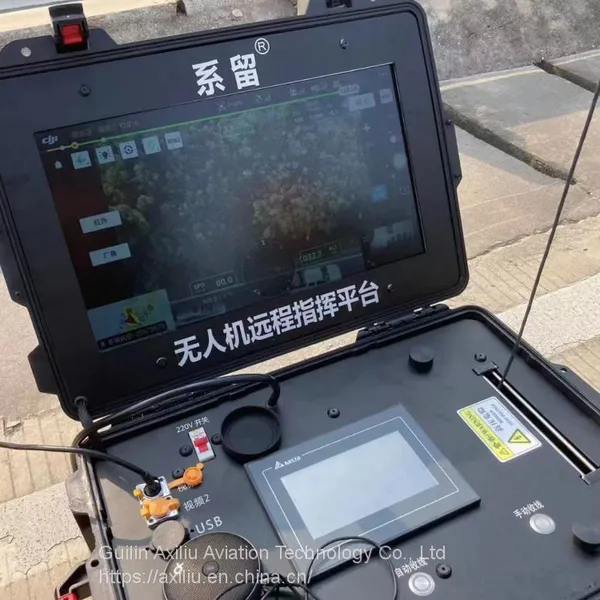

(8) 7-inch touch screen display
(9) Voice prompt function
(10) Automatic detection: Automatically detect the length of the cable released, and the automatic closing function for cable retracting length could be set;
(11) Adjustable parameters: the internal menu could set parameters such as prompt sound volume, output voltage, upper limit of output voltage, current, etc.;
(12) Alarm function: Communication fault alarm of voice module, high output voltage alarm, low output voltage alarm, high chassis temperature alarm, high current alarm and other prompts;
(13) Power supply mode: city power, generator, fire truck, lithium battery pack, etc.
(14) Equipped with air switch and leakage protection switch.
