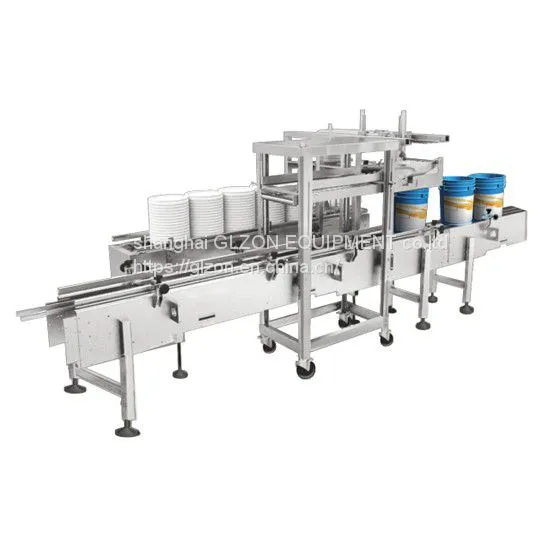

GZM-20L Automatic Directional Capping Machine for Wide-mouth Barrel

Main technical parameters

1. equipment overview:

This machine is specially developed for automatic capping and capping of wide-mouth barrels. The functions of cover storage, automatic cover separation, directional upper cover and gland are integrated. This machine covers the barrel in a directional way, thus ensuring the consistency of the angle between the barrel cover and the barrel handle, label and cover opening. This machine can store multiple groups of barrel lids, realize automatic lid supply, and save labor and trouble without frequent capping. The storage capacity can be increased or decreased according to the customer's site and demand.

2. Main technical parameters:

Dimensions (length x width x height) mm: 2000 x 1500 x 1700

Whole machine mass: about 650kg

Power supply: AC 220 V/50 Hz; 2.5kW

Gas source pressure: 0.6MPa

Production capacity: ≤1500 barrels per hour

The qualified rate of upper cover: ≥99.9%

This machine is specially developed for automatic capping and capping of wide-mouth barrels. The functions of cover storage, automatic cover separation, directional upper cover and gland are integrated. This machine covers the barrel in a directional way, thus ensuring the consistency of the angle between the barrel cover and the barrel handle, label and cover opening. This machine can store multiple groups of barrel lids, realize automatic lid supply, and save labor and trouble without frequent capping. The storage capacity can be increased or decreased according to the customer's site and demand.
