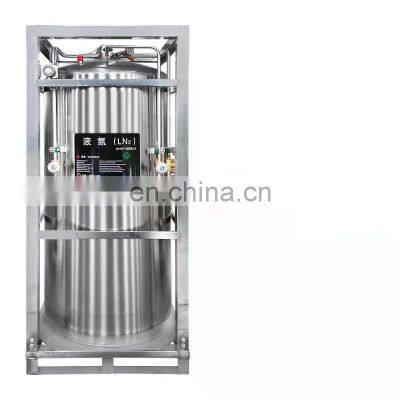

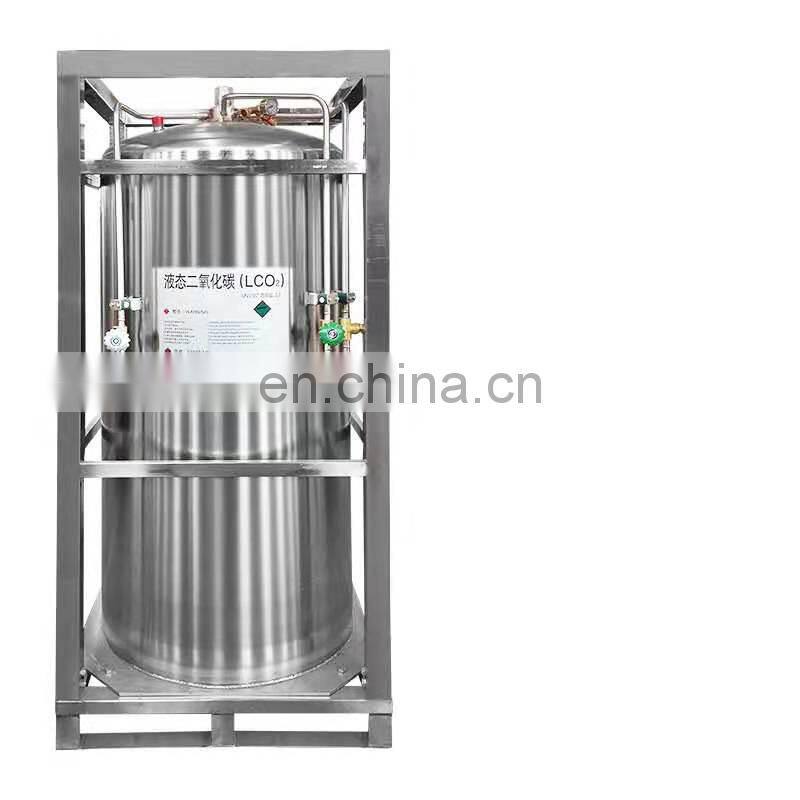

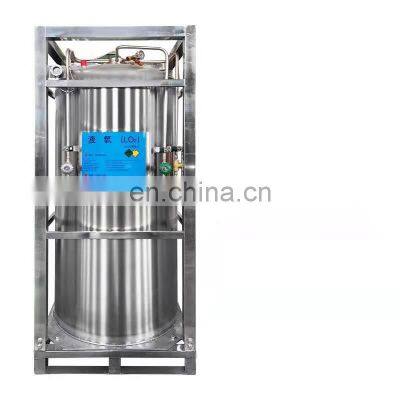

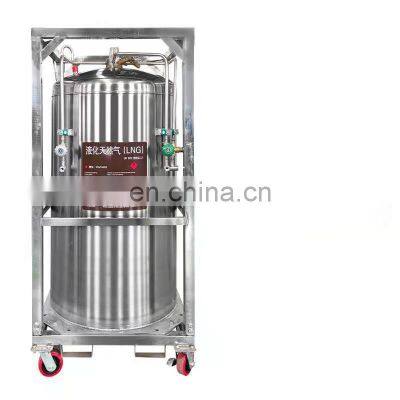

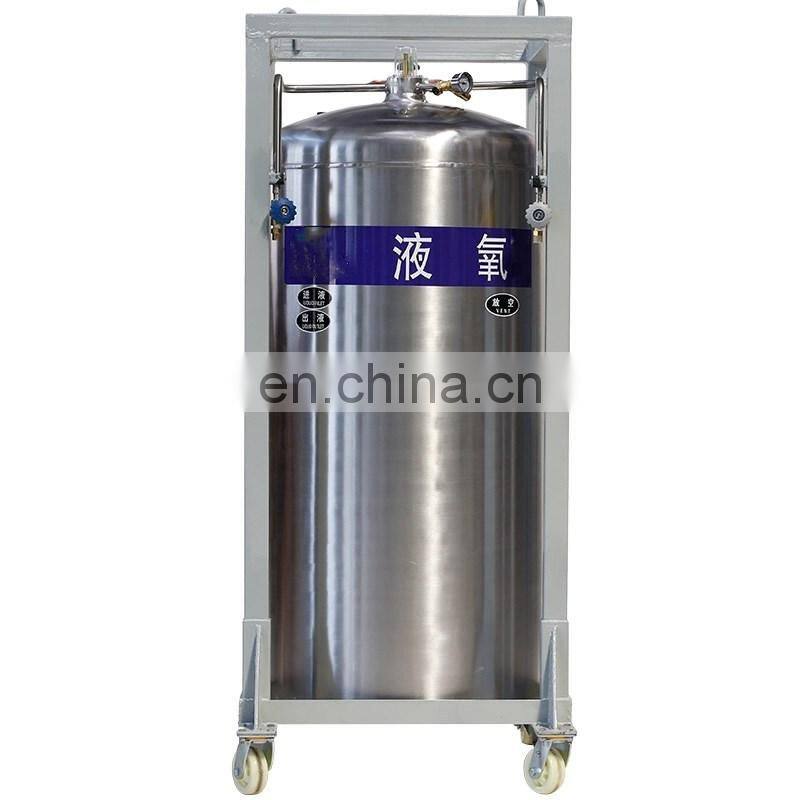

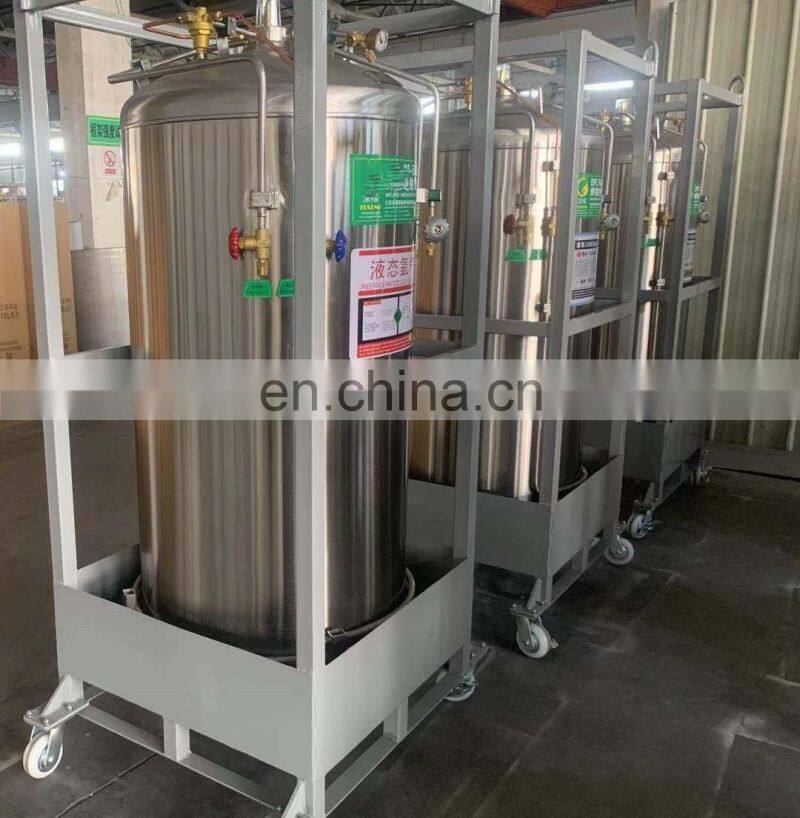

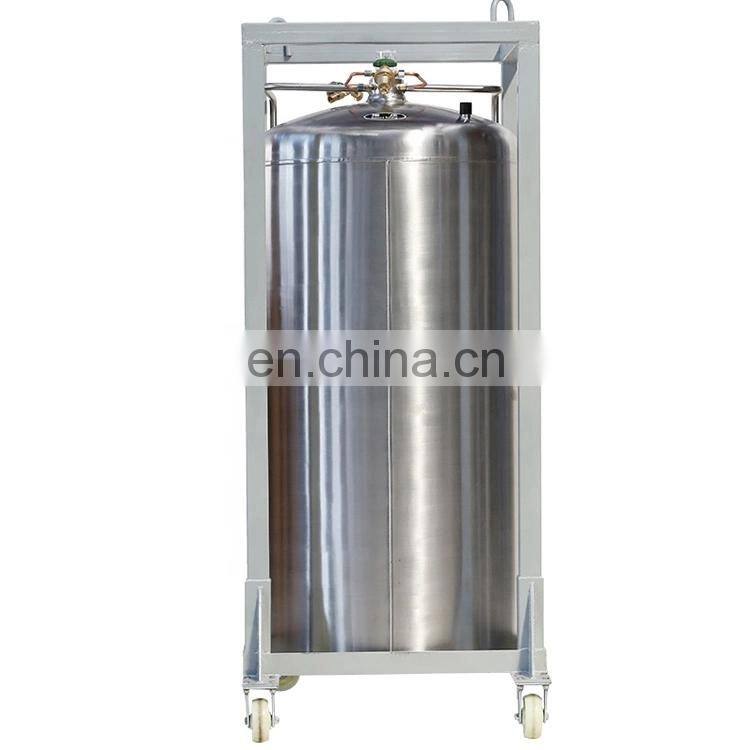

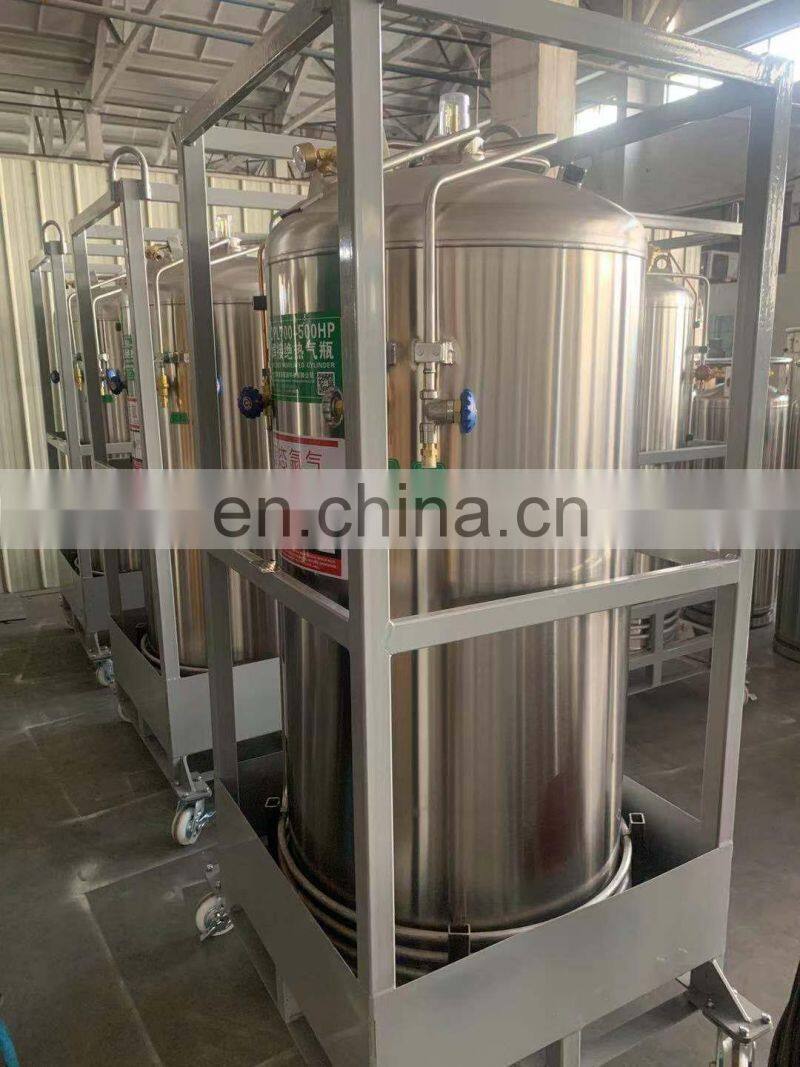

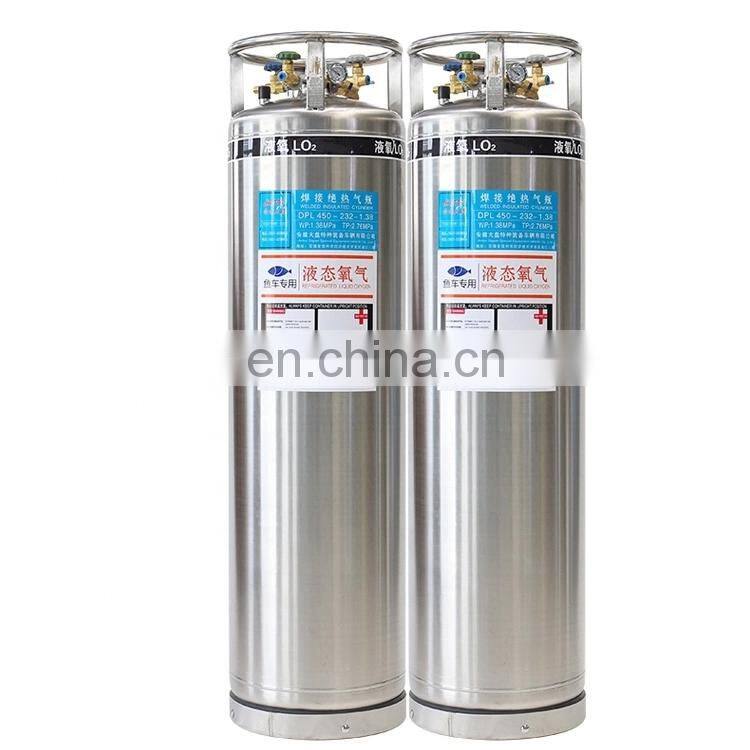

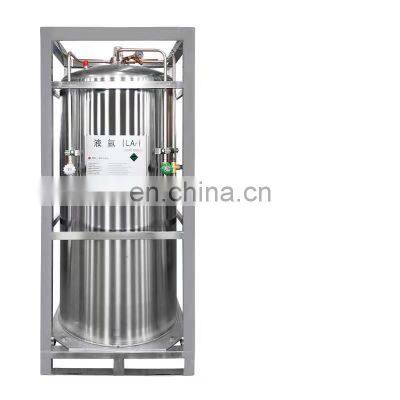

DPL700-499 High Quality Cryogenic Lox Lin Lar Lco2 Dewar Gas Cylinder
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2003
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Liquid Nitrogen Containers/Tanks/Dewar Tank/pressure Vessel 175LNegotiableMOQ: 1 -
Industrial Oxygen Cylinder,oxygen Tank Capacity,lpg Gas Cylinder Refill PriceNegotiableMOQ: 1
-
High Quality Chlorine Gas Price Hydrogen Gas Price Chlorine GasNegotiableMOQ: 1
-
High Purity 99.999% Fluorine Excimer Lasers Mixture Gas Premix Gas ArFNegotiableMOQ: 1
-
China Gold Supplier Nitrous Oxide Produce N2O Purify Gas MachineNegotiableMOQ: 1
Product Description
Specification

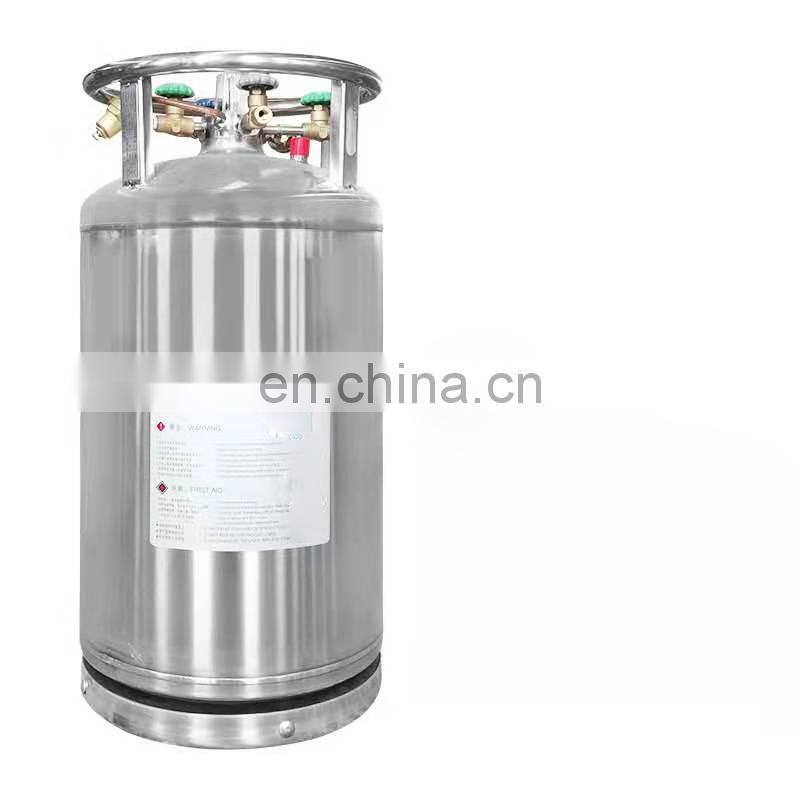

Medium pressure cryogenic liquid container gas dewar cylinder |
||||||||||
Model |
DPL-175 |
DPL-195 |
DPL-210 |
DPW-499 |
||||||
size mm |
Φ505×1551mm |
Φ505×1675mm |
Φ505×1761mm |
2113×760×995mm |
||||||
working pressure(MPa) |
1.37 |
1.37 |
1.37 |
1.59 |
||||||
Relief valve take-off pressure(MPa) |
1.59 |
1.59 |
1.59 |
1.89 |
||||||
Bursting pressure of the bursting disc(MPa) |
2.41* |
2.41* |
2.41* |
2.41(2.86*) |
||||||
Geometric volume (L) |
175 |
195 |
210 |
499 |
||||||
Effective volume(L) |
160 |
180 |
195 |
460 |
||||||
Evaporation rate (liquid nitrogen) |
2.10% |
2.02% |
1.99% |
1.70% |
||||||
Empty cylinder weight(kg) |
125 |
135 |
140 |
345 |
||||||
Filling Medium |
O2(kg) |
170 |
190 |
205 |
478 |
|||||
N2(kg) |
120 |
134 |
145 |
334 |
||||||
Ar(kg) |
208 |
232 |
250 |
585 |
||||||
LNG(kg) |
70 |
78 |
84 |
196 |
||||||

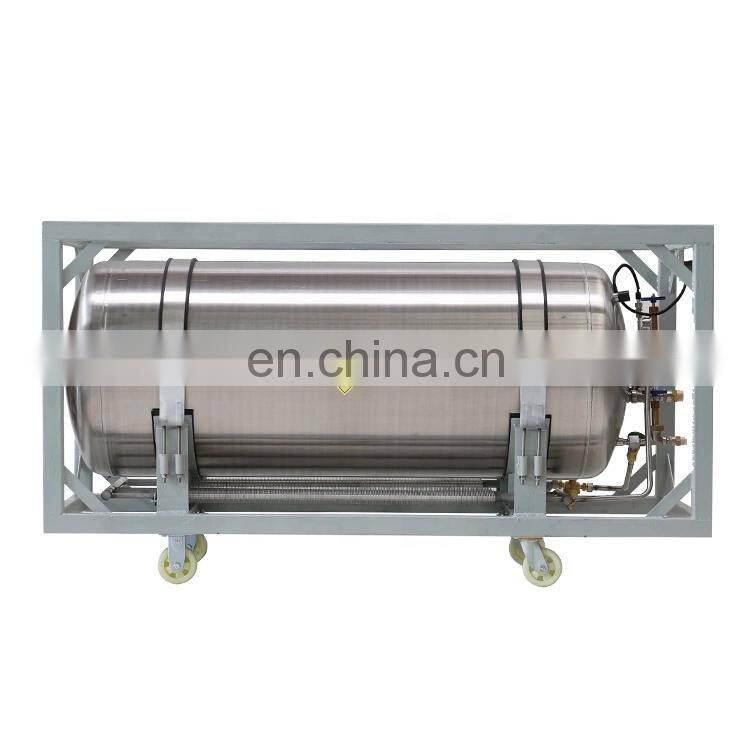

High pressure cryogenic liquid container gas dewar cylinder |
||||||||||
Model |
DPL-175H |
DPL-196H |
DPL-210H |
DPW-499H |
||||||
size mm |
Φ505×1551 |
Φ505×1676 |
Φ505×1761 |
2113×760×995 |
||||||
working pressure(MPa) |
2.3 |
2.3 |
2.3 |
2.5 |
||||||
Relief valve take-off pressure(MPa) |
2.41 |
2.41 |
2.41 |
2.86 |
||||||
Bursting pressure of the bursting disc(MPa) |
3.62* |
3.62* |
3.62* |
3.62(4.14*) |
||||||
Geometric volume (L) |
175 |
195 |
210 |
499 |
||||||
Effective volume(L) |
160 |
180 |
195 |
460 |
||||||
Evaporation rate (liquid nitrogen) |
2.10% |
2.02% |
1.99% |
1.70% |
||||||
Empty cylinder weight(kg) |
143 |
152 |
160 |
405 |
||||||
Filling Medium |
O2(kg) |
170 |
190 |
205 |
478 |
|||||
N2(kg) |
120 |
134 |
145 |
334 |
||||||
Ar(kg) |
208 |
232 |
250 |
585 |
||||||
LNG(kg) |
164 |
183 |
197 |
460 |
||||||
Related Products
Company Profile

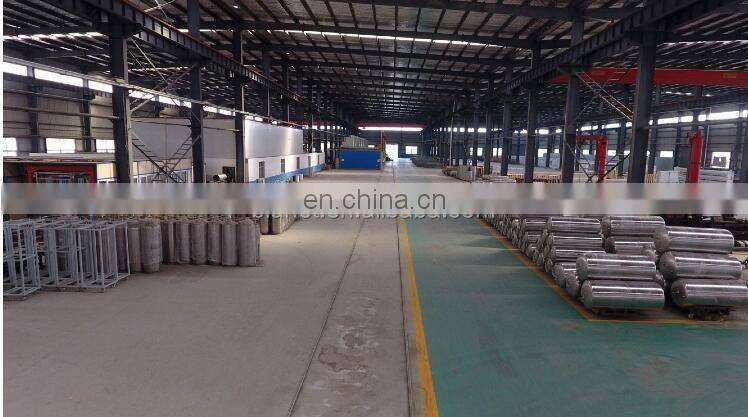

Established in 1998. Our company possesses three production lines for production of various seamless gas cylinders. The annual production and sale for gas cylinders of below 20L for 600 thousand pieces, accounting for 90% domestic share in small size gas cylinder market. The recently set up new production line for 0.4L-80L emergency respirator, colliery escape capsule and refuge chamber has the annual production of 700 thousand pieces of cylinders. By the year 2013, the total specifications we do ascent to 109 types to meet different customers' requirement.
Our major products are oxygen cylinder, nitrogen cylinder, carbon dioxide cylinder, argon cylinder, other industrial cylinder,
medical oxygen supply unit, etc., with wide application for fields of medical apparatus and instruments, engineering machinery, colliery rescue, gas industry, welding-cutting machinery, and chemical industry.
Our major products are oxygen cylinder, nitrogen cylinder, carbon dioxide cylinder, argon cylinder, other industrial cylinder,
medical oxygen supply unit, etc., with wide application for fields of medical apparatus and instruments, engineering machinery, colliery rescue, gas industry, welding-cutting machinery, and chemical industry.

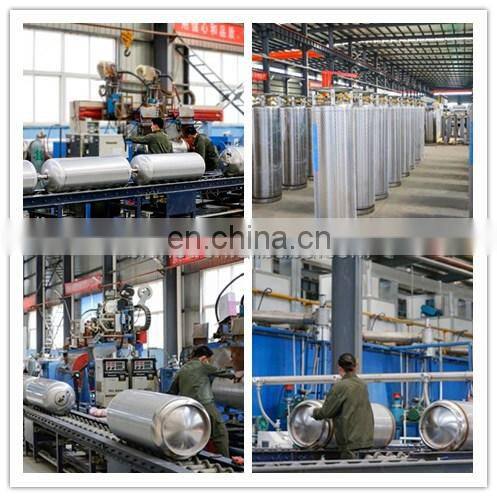

Our cryogenic vessels production line mainly produce cryogenic liquid storage tanks, welding insulation cylinders, dewar cylinder,cryogenic reaction device, cryogenic tanks, cryogenic ISO tank container and air temperature vaporizer.
So far our products are enjoying good markets at home and exporting to European and American countries, the Middle East countries,West Asia, as well as South and East Asia countries.
So far our products are enjoying good markets at home and exporting to European and American countries, the Middle East countries,West Asia, as well as South and East Asia countries.

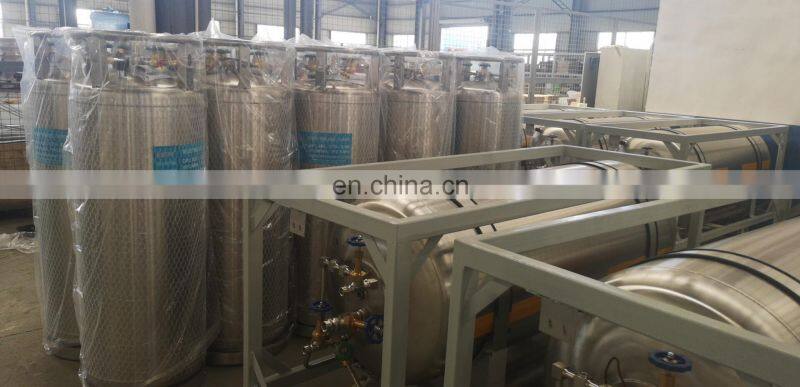

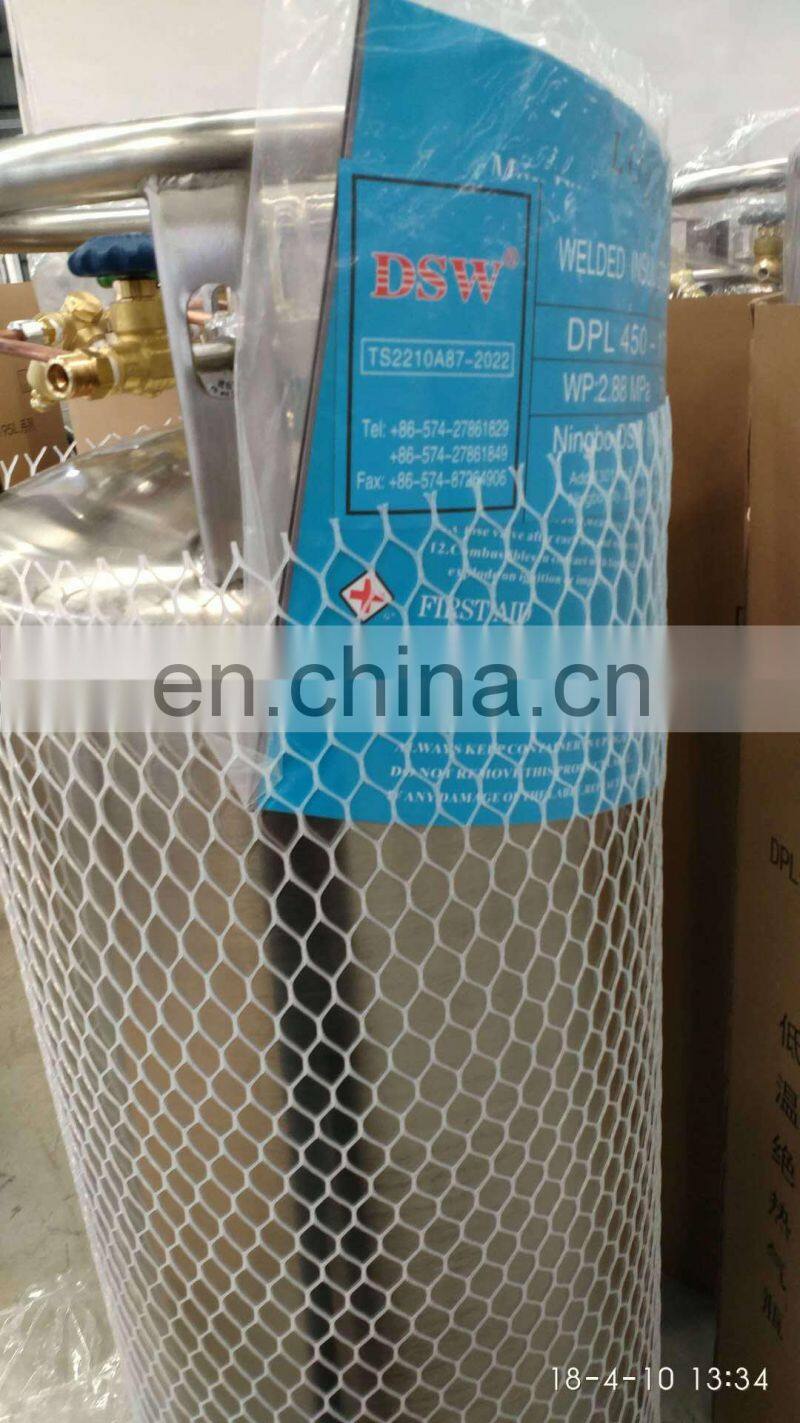

Packing & Delivery
FAQ
Q1: If you are factory or trade company?
We are manufacturer with more than 20 years.
Q2: What is your delivery time?
We promise 20-25 days once deposit paid and workshop drawings confirmed.
Q3: What is your payment terms?
We accept TT and L/C at sight.
Q4: What is your packing for all cylinders?
We can pack all Containers by pallet , also no pallet is available for different type container.
Q5: Can you provide OEM design?
Yes, we can, we are factory under ourself R&D team, so custom container is welcome.
and we can make customerbrand name on cylinder shoulder, color, printing, etc...
Q6: What is your MOQ?
Our MOQ is 100 pcs.
Q7: Do you have any protection for the head of the cylinder?
Yes, in our factory, each cylinder is protected by standard cap which can make sure the safety
of torch during the transportation.
Q8: What is your advantage with other competitors?
We are factory with excellent equipment and high quality control system, and our factory price is more competitive, fast
shipment with high quality, our service is also best with 24 hours on line for fast reply your requestments.
We are manufacturer with more than 20 years.
Q2: What is your delivery time?
We promise 20-25 days once deposit paid and workshop drawings confirmed.
Q3: What is your payment terms?
We accept TT and L/C at sight.
Q4: What is your packing for all cylinders?
We can pack all Containers by pallet , also no pallet is available for different type container.
Q5: Can you provide OEM design?
Yes, we can, we are factory under ourself R&D team, so custom container is welcome.
and we can make customerbrand name on cylinder shoulder, color, printing, etc...
Q6: What is your MOQ?
Our MOQ is 100 pcs.
Q7: Do you have any protection for the head of the cylinder?
Yes, in our factory, each cylinder is protected by standard cap which can make sure the safety
of torch during the transportation.
Q8: What is your advantage with other competitors?
We are factory with excellent equipment and high quality control system, and our factory price is more competitive, fast
shipment with high quality, our service is also best with 24 hours on line for fast reply your requestments.
