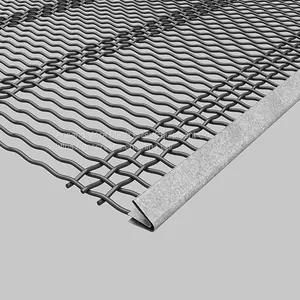

Anpeng Slotted Screen Mesh
Anpeng woven wire mesh with slotted openings could be woven in any slot length and with any number of wires in clusters. This type of opening provides greater open area, in addition to higher production compare to regular square mesh. Designed to screen scalp flat, elongated particles and smaller materials in wet conditions, and also to reduce clogging or blinding of material. Slotted screens could be customized to have the long aperture with or against material flow. Our slotted screens are long wearing even against the most high impact applications to be found in quarries and mines.
Specification of Anpeng Slotted Screen Mesh
Wire Slot Type |
Aperture Size (mm) |
Wire - HT Size (mm) |
Single Wire Slot |
2.0mm x 20.0mm |
2.00mm |
Triple Wire Slot |
3.15mm x 25.0mm |
2.00mm |
Triple Wire Slot |
3.4mm x 25.0mm |
2.00mm |
Triple Wire Slot |
3.8mm x 30.0mm |
2.00mm |
Triple Wire Slot |
4.0mm x 30.0mm |
2.50mm |
Triple Wire Slot |
5.0mm x 35.0mm |
2.50mm |
Triple Wire Slot |
6.0mm x 40.0mm |
2.50mm |
Triple Wire Slot |
7.0mm x 45.0mm |
2.50mm |
Triple Wire Slot |
8.0mm x 70.0mm |
3.15mm |
Triple Wire Slot |
10.0mm x 80.0mm |
3.15mm |
Features of Slotted Screen Mesh
1
Increased open areas than square mesh
2
Less blinding when screening damp material
3
Engineered to increase screening efficiency and reduce blinding
4
Improve effective wear life of screens
5
Wide range of openings and sizes to meet your requirements
6
Ideal when sizing accuracy is secondary to screening capacity
To Order Stainless Steel Weave Mesh
To order stainless steel crimped mesh in Anpeng, you would have to state your specifications on the followings：
Opening
square, slotted or Anti-clogging opening shapes.
As one of crimped mesh manufacturers, we can offer types of related products for sale, anything you need, please contact us.
Anpeng is an industrial screen manufacturer specialized in producing Woven wire screens, Self cleaning screens, PU-Mesh screens and etc. Anpeng offers High-performance screen media options at top quality, much affordable price, and short delivery time, enabling our customers to be very competitive in the markets worldwide.
