1、 Overview
The electro-hydraulic sector valve is simple in structure, welded with high-quality steel plate, and driven by electro-hydraulic push rod and cylinder. It runs smoothly and has low failure rate. It can cut off the material flow quickly when used with bar valve. The electro-hydraulic fan-shaped valve is applicable to the industries of hardware and building materials, iron and steel chemical industry, metallurgy and electric power, etc. it is the unloading and leakage control device of all kinds of ash hopper. This series of sector gate valves has simple structure and wear-resistant lining plate on the inner wall, which has the advantages of long service life and maintenance.
Applicable medium applicable temperature medium flow rate
Crystalline materials, solid granular materials, powdery materials ≤ 300 ℃ ≤ 28m/s
Power supply voltage regulation characteristics electrohydraulic push rod model
380V50Hz two position switch DYT series
2、 Structural features
The electric sector valve is driven by the electro-hydraulic push rod, which is directly fixed on the gate body, avoiding the trouble of users' positioning on the site, and the installation is simple.
The pneumatic sector valve is equipped with a dust cover at the discharge port to avoid dust flying; The electro-hydraulic push rod is used as the power source to replace the cylinder transmission, which saves the project investment cost; The valve body adopts a step structure to reduce the impact of material flow; The key parts of the valve body are laid with wear-resistant lining plates of fence structure, which reduces the direct wear of the lining plates.
Purpose:
This series of electrohydraulic sector valves is an ideal unloading device for dust removal equipment of cement clinker silo according to the special needs of the construction industry.

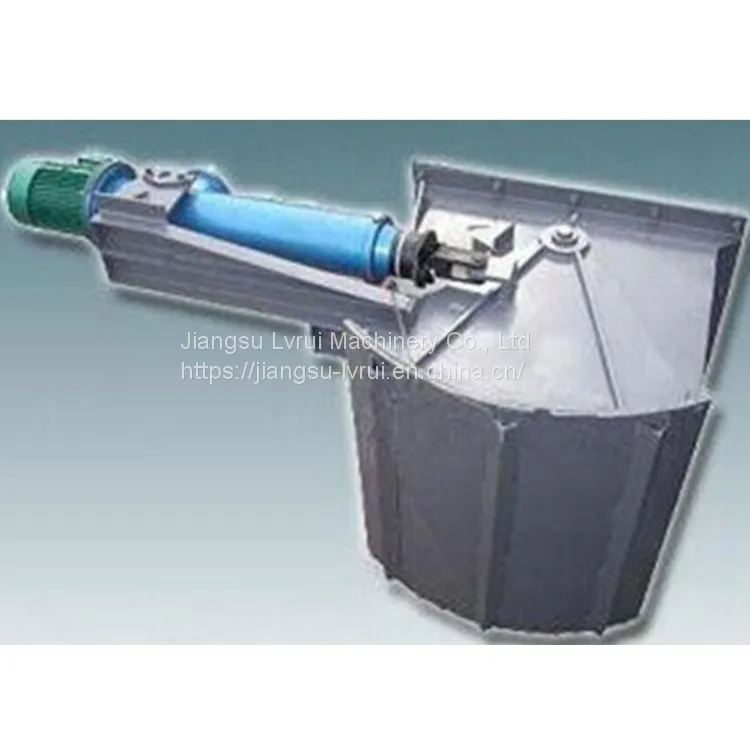

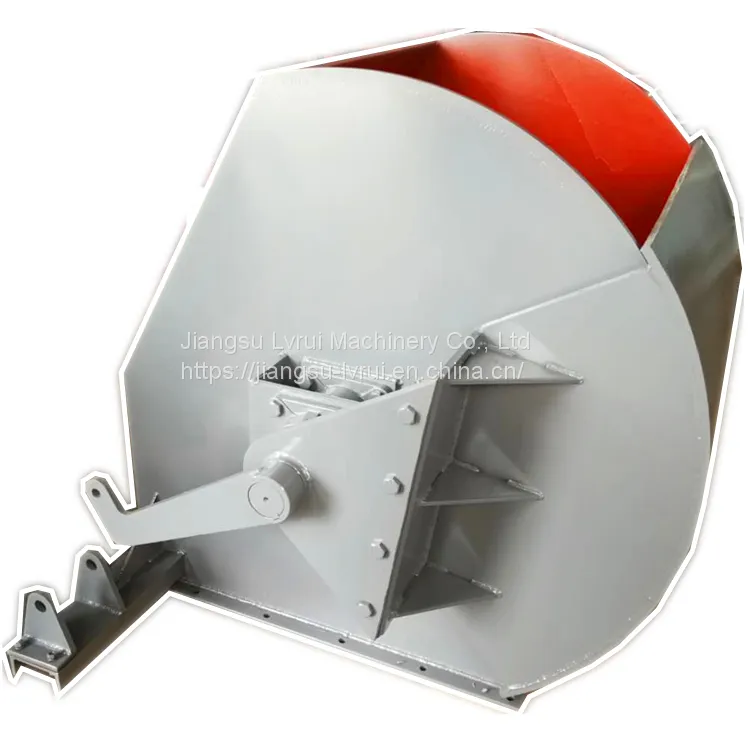

3、 Product real map
