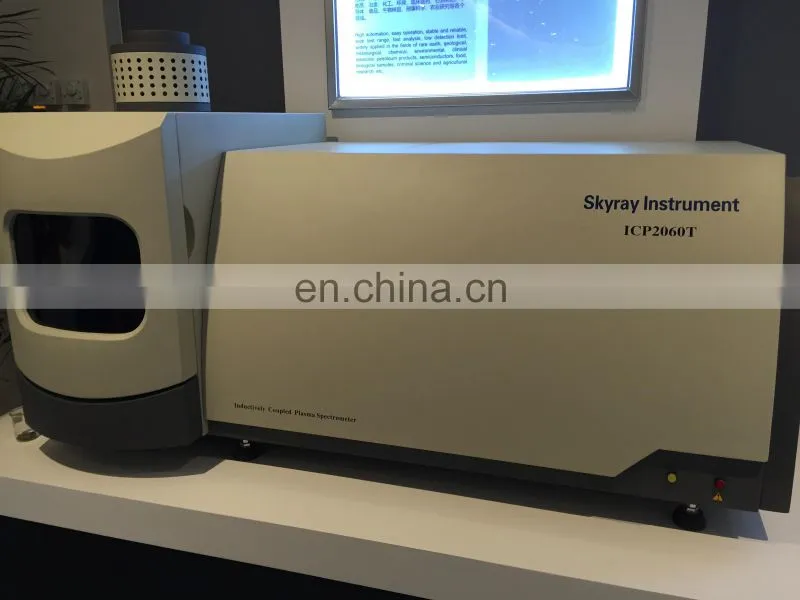

ICP AES Laboratory Equipment for Minerals Alloy Measurement
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2009
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Handheld Xrf Spectrometer for Mineral Fast AnalyzerNegotiableMOQ: 1 -
Xrf Analyzer Handheld for Mineral Ores Rapid TestNegotiableMOQ: 1
-
AAS Flame Spectrometer for Gold Minerals AnalysisNegotiableMOQ: 1
-
Handheld Xrf Metal Analyzer for Alloy Rapid AnalyzeNegotiableMOQ: 1
-
OES Metal Alloy Analyzer for Stainless Steel Carton AnalysisNegotiableMOQ: 1
Technical Specifications:
| Frequency | 27.12MHz |
| Frequency stability | <0.05% |
| Couple method | Auto match |
| Output power | 800W ~1600W |
| Wavelength range | 195~500 nm for 3600 line grating195~800 nm for 2400 line grating |
| Focal length | 1000mm |
| Output power stability | ≤0.05% |
| Signal acquisition | VF conversion |
Limits of detection (LOD, μg/L) for typical elements:1ppb~10ppb:
| Element | La | Ce | Pr | Nd | Sm | Eu | Gd | Tb |
| λ (nm) | 408.672 | 413.765 | 414.311 | 401.225 | 360.946 | 381.967 | 342.247 | 350.917 |
| LOD | <3.0 | <5.0 | <5.0 | <5.0 | < 10.0 | < 1.0 | <10.0 | < 3.0 |
|
Element |
Dy | Ho | Er | Tm | Yb | Lu | Y | Sc |
| λ (nm) | 353.170 | 345.600 | 337.271 | 313.126 | 369.419 | 261.541 | 371.030 | 335.373 |
| LOD | <3.0 | <3.0 | <3.0 | <3.0 | <1.0 | <3.0 | <1.0 | <1.0 |
|
Element |
Ta | Nb | Mn | Mg | B | Zn | Co | Si |
| λ (nm) | 226.230 | 313.340 | 257.610 | 279.553 | 249.773 | 13.856 | 228.616 | 251.611 |
| LOD | <5.0 | <5.0 | <3.0 | <1.0 | <10.0 | <3.0 | <3.0 | <10.0 |
|
Element |
Ni | Cd | Fe | Ca | Mo | V | Be | Ti |
| λ (nm) | 232.003 | 226.502 | 239.562 | 393.366 | 281.615 | 310.230 | 313.041 | 334.941 |
| LOD | <5.0 | <3.0 | <3.0 | <1.0 | <5.0 | <5.0 | <1.0 | <3.0 |
|
Element |
Cu | Cr | Al | Zr | Ag | Sr | Au | Pt |
| λ (nm) | 324.754 | 267.716 | 396.152 | 343.823 | 328.068 | 407.771 | 242.795 | 265.945 |
| LOD | <3.0 | <5.0 | <5.0 | <5.0 | <3.0 | <1.0 | <5.0 | <5.0 |
| Element | Sn | Te | Ta | Th | Tl | Re | Ge |
| λ (nm) | 242.949 | 214.281 | 226.230 | 283.730 | 276.787 | 227.525 | 209.426 |
| LOD | ≤20 | ≤10 | ≤5.0 | ≤10 | ≤30 | ≤5 | ≤15 |
|
Element |
As | Sb | Bi | Hg | Pb | Ga | Se |
| λ (nm) | 228.812 | 206.833 | 223.061 | 253.652 | 220.353 | 294.364 | 203.985 |
| LOD | ≤15 | ≤15 | ≤10 | ≤15 | ≤15 | ≤10 | ≤10 |
Application fields:
1) Minerals and rear earth
2)Metallurgical industry: analysis of impurity elements influencing the quality of metal materials
Petrochemical: measurements of more than 30 elements in crude oil
