Buy Jewelry Industry Vacuum Pressure Gold Rings Gold Coin Casting Equipment
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
CDOCAST Automatic Vacuum Gold Jewelry Casting Machines Use Dewaxing Casting
-
Low Price Vacuum Jewelry Ring Pendant Earring Bracelet Necklace Brooch Making Machine for Gold
-
CDOCAST Precious Metal Gold Silver Copper Bar Making Machine With Customized Mould
-
Vacuum Pressurized High Temperature Copper Platinum Bullion Casting Device
-
Vacuum Mini Gold Silver Bullion and Bar Casting Furnace With Water Cooling System
-
Casting System Copper Granulator Machine for Sale
Product Description
Products Description

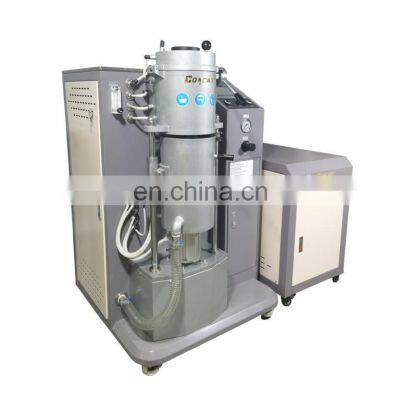

Buy Jewelry industry vacuum pressure gold rings gold coin casting equipment
CDOCAST Vacuum pressurized casting machine can be used for casting any precious metal in the weight range of 1-6kg. Precious metals such as gold, copper, and silver or any other metal artwork can process with this product.
Gold casting machinery can be equipped with a vacuum pump, the texture of the product will be even and the surface quality will be better. In addition, the jewelry vacuum pressure casting machine with electromagnetic stirring function, it will make the alloy mix more evenly, so the quality of the product is better.
Gold casting machinery can be equipped with a vacuum pump, the texture of the product will be even and the surface quality will be better. In addition, the jewelry vacuum pressure casting machine with electromagnetic stirring function, it will make the alloy mix more evenly, so the quality of the product is better.

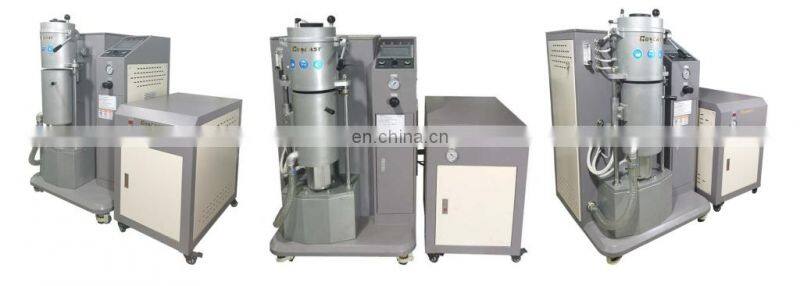

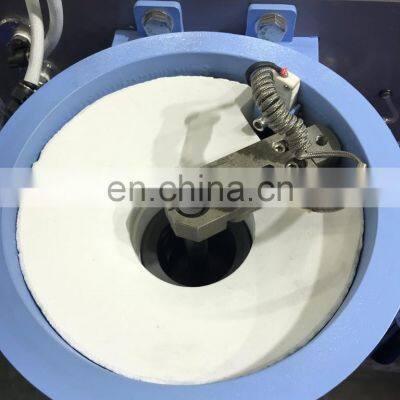

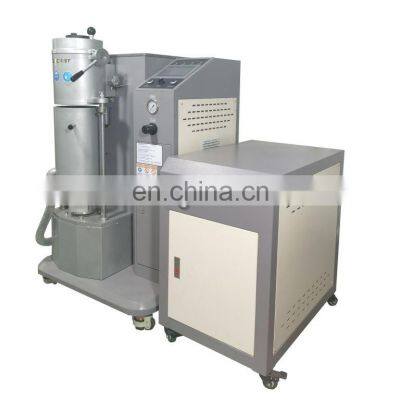

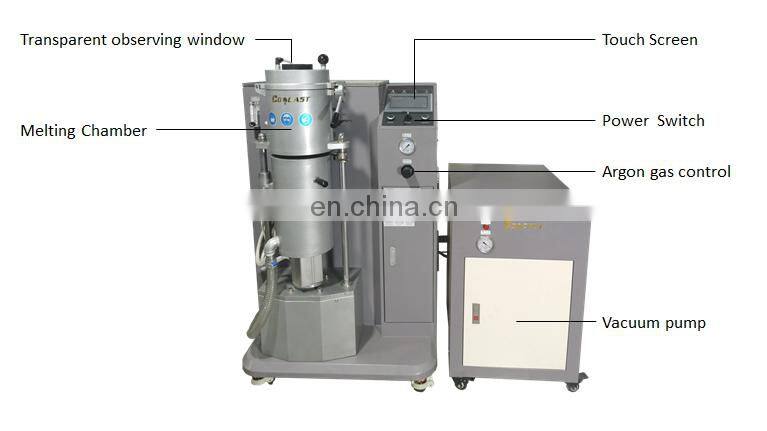

Details Images
Product Paramenters
Model number | CDO-JP2 | CDO-JP4 | CDO-JP6 |
Power | 8.5kw | 15kw | 25kw |
Voltage | 380V, 3 phase, 50/60Hz | 380V, 3 phase, 50/60Hz | 380V, 3 phase, 50/60Hz |
Casting system | Vacuum pressure casting system | Vacuum pressure casting system | Vacuum pressure casting system |
Applicable metal | Gold, K-Gold, Silver, Copper, Brass, Bronze, and their alloys | Gold, K-Gold, Silver, Copper, Brass, Bronze, and their alloys | Gold, K-Gold, Silver, Copper, Brass, Bronze, and their alloys |
Melting time | 3-5min | 3-5min | 3-5min |
Max capacity | 24K Gold: 2.0 kg 18K Gold: 1.5 kg 925 Silver: 1.0 kg | 24K Gold: 4.0 kg 18K Gold: 3.0 kg 925 Silver: 2.0 kg | 24K Gold: 6.0 kg 18K Gold: 4.0 kg 925 Silver: 3.0 kg |
Max temperature | 1600℃ | 1600℃ | 1600℃ |
Protective gas | Nitrogen or Argon | Nitrogen or Argon | Nitrogen or Argon |
Control of temperature | PID | PID | PID |
Oscillation | Induction heating | Induction heating | Induction heating |
Overall size | 720×700×1150 mm | 720×700×1150 mm | 720×800×1150 mm |
Weight | 210 kg | 215 kg | 250 kg |

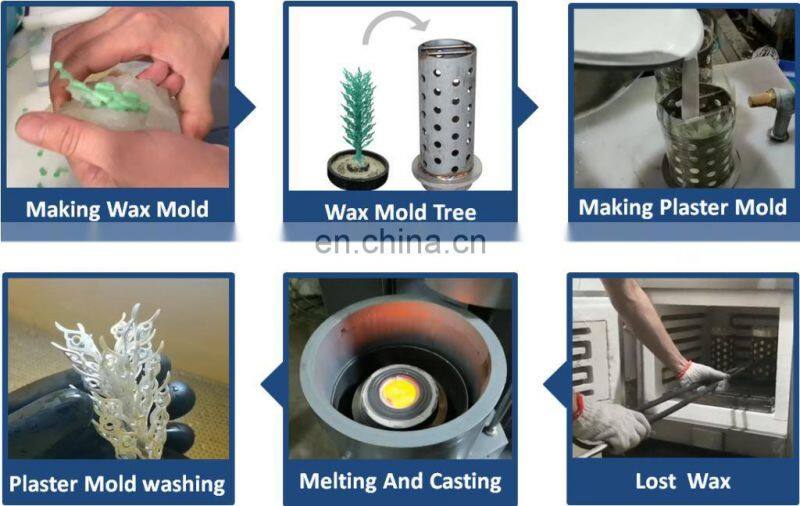

Application
We can provide a one-stop solution for the entire jewelry foundry line
Feature
1).Our vacuum pressurized casting machine is fully automatic and easy operation.
2).It will help users finish casting by their own easily.

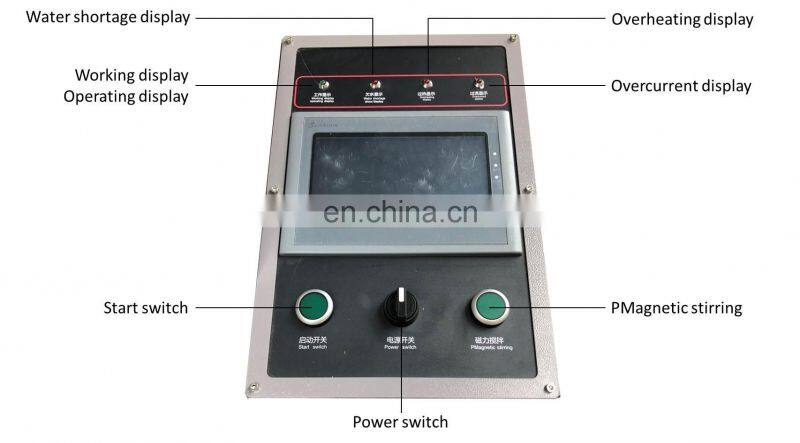

3).Easy operation touch screen control two language:chinese and English.
4).parameters of vacuum pressure and time can be adjsted according to the castings
5).There are various alarm systems in place. They signal and automatically stops the machine when there any form of process abnormality is detected. This feature ensures both the safety of your operator and that of the machine.
2).It will help users finish casting by their own easily.
3).Easy operation touch screen control two language:chinese and English.
4).parameters of vacuum pressure and time can be adjsted according to the castings
5).There are various alarm systems in place. They signal and automatically stops the machine when there any form of process abnormality is detected. This feature ensures both the safety of your operator and that of the machine.

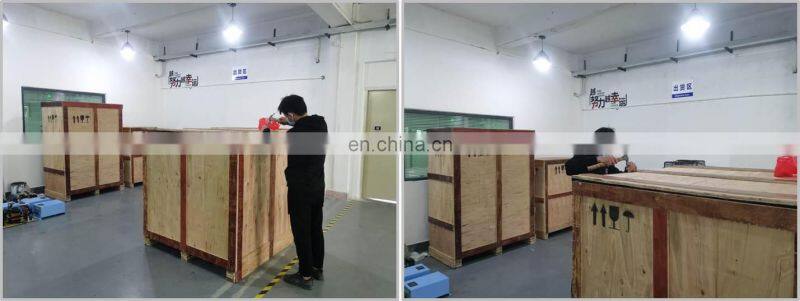

Packaging & Shipping
Our services
I.Commissioned from the furnace after delivery, into the warranty period, the warranty period of 12 months.Regardless of the warranty period or warranty period, the furnace, such as failure, received a notice, we are committed to 36 hours to send to the scene to deal with.
II.In the warranty period by our cause failure, we carried out unconditional maintenance and replacement.Due to other causes ofthe failure, we only charge the cost of paid maintenance
III.After the warranty period, we will, as always, do a good job after-sales service, so that users no worries.
I.Commissioned from the furnace after delivery, into the warranty period, the warranty period of 12 months.Regardless of the warranty period or warranty period, the furnace, such as failure, received a notice, we are committed to 36 hours to send to the scene to deal with.
II.In the warranty period by our cause failure, we carried out unconditional maintenance and replacement.Due to other causes ofthe failure, we only charge the cost of paid maintenance
III.After the warranty period, we will, as always, do a good job after-sales service, so that users no worries.

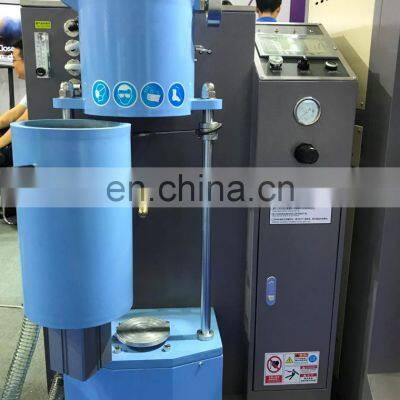

Customer Photos
FAQ
1. What is your advantage compared to others?
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking.
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking.
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
