Home > Instruments & Meters > Test Instrument > Test Machine > Forging, Brazing, Quenching Ultrasonic Frequency Induction Heating Equipment 100KW, 5~30Khz

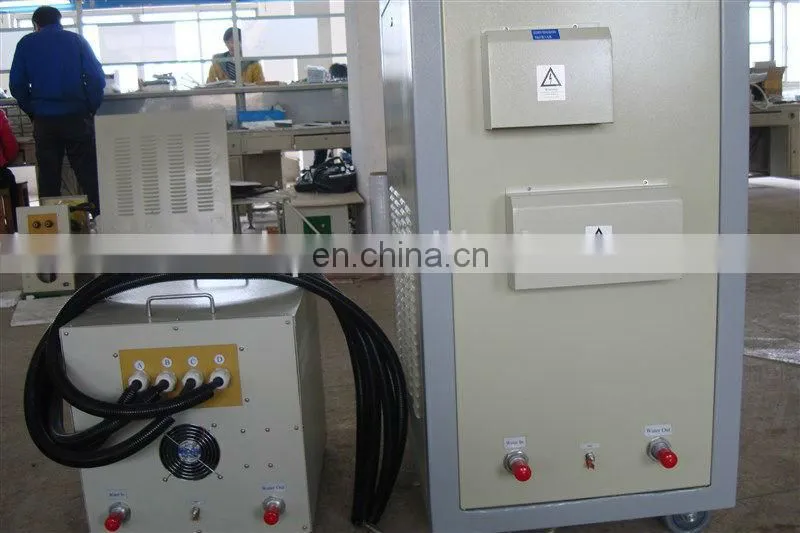

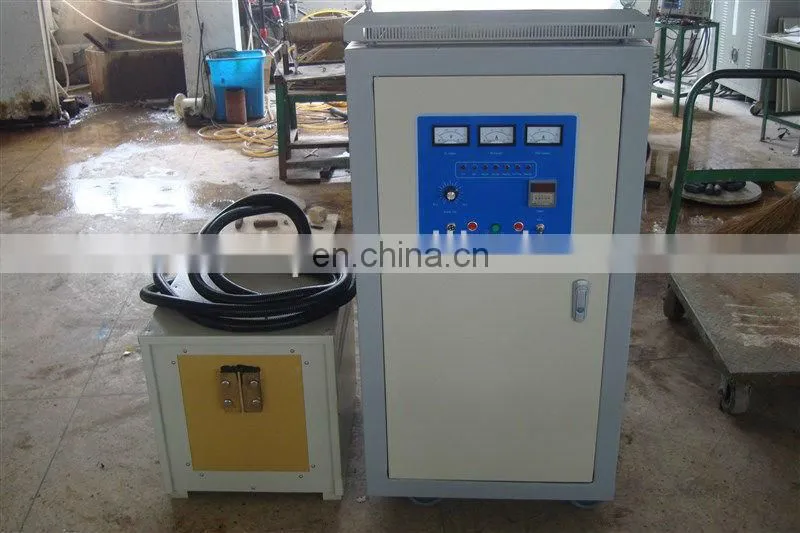

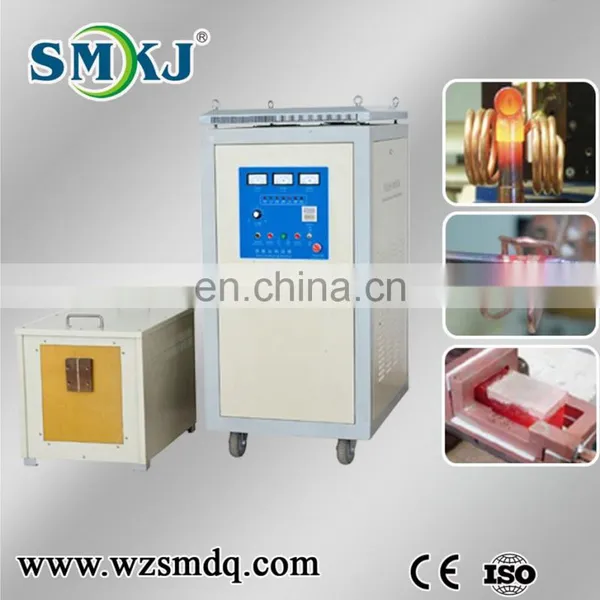

Forging, Brazing, Quenching Ultrasonic Frequency Induction Heating Equipment 100KW, 5~30Khz
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2008
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Induction Hardening/heating Unit for Steel/hand Hacksaw BladeNegotiableMOQ: 1 -
HF Induction Welding MachineNegotiableMOQ: 1
-
Free Shipping Promotion!Best Seller!High Frequency Induction Heating Machine/heater/equipmentNegotiableMOQ: 1
-
IGBT Induction Heat Treatment EquipmentNegotiableMOQ: 1
-
High Frequency Induction Heating Machine,Induction Heater, 15KW,30~100KhzNegotiableMOQ: 1
Model Code: SMJRCY-100
| Model | SMJRCY-80 | SMJRCY-100 | SMJRCY-120 | SMJRCY-160 | |
| Max Input Power(KW) | 80 Kw | 100 Kw | 120 Kw | 160 Kw | |
| Max Input Current (A) | 150 A | 185 A | 220 A | 260 A | |
| Input Voltage(V) | 380V*3 50/60 Hz | ||||
| Oscillation Frequency | 5K - 30 KHz | 5K - 25KHz | |||
| Continuous Loading Rate | 100% | 100% | 100% | 100% | |
| Requirement Of Cooling Water | Water Pressure | ≥0.2Mpa | ≥0.2Mpa | ≥0.2Mpa | ≥0.2Mpa |
| Flow Rate | ≥6L/Min | ≥6L/Min | ≥6L/Min | ≥6L/Min | |
| Temperature Of Cooling Water | ≤45°C | ||||
| Generator Box | Weigth(Kg) | 129 | 129 | 129 | 139 |
| Size(cm) | 84*55*119 | ||||
| Capacitor Box | Weigth(Kg) | 70 | 80 | 97 | 115 |
| Size(cm) | 60*43*50 | 65*43*50 | 75*47*53 | ||
| Waterway of Power Supply | Generator Box | 1 Water-In, 1 Water-Out | |||
| Capacitor Box | 1 Water-In, 1 Water-Out | ||||

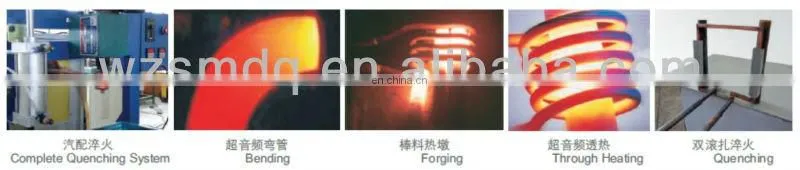

1. Brazing of Diamond Tool blades.
2. Heat treatment of gear and shaft, etc.

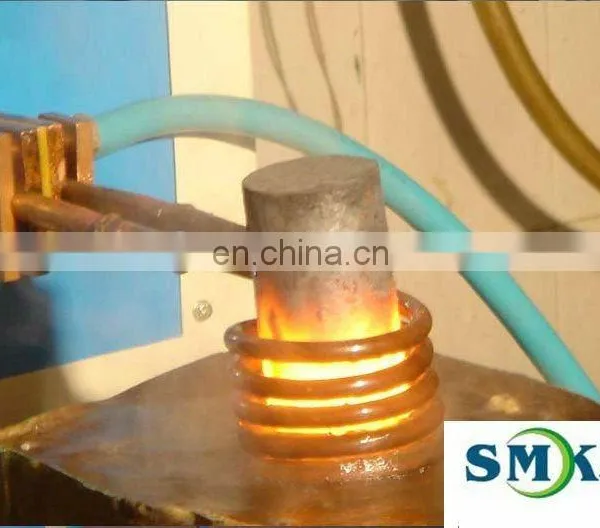

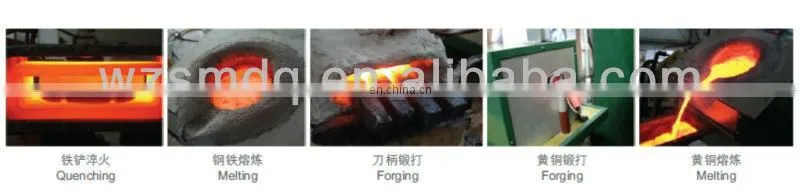

3. Rod heating for shaping and forging, etc.

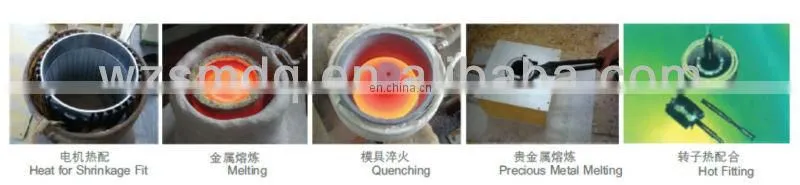

4. Melting of gold, silver and other metals, etc.
5. With timer function, it is suitable for repeated Heating process.
Quenching
Heat Treatment
Welding
General Application
