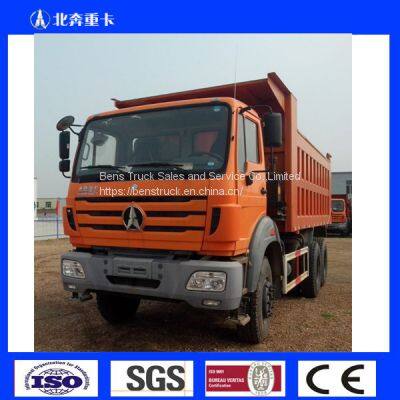

Beiben Truck North Benz NG80 6x4 380HP 20CBM 10 Wheels Tipper Truck Dump Truck A Vendre

Beiben Truck North Benz NG80 6x4 380HP 20CBM 10 Wheels Tipper Truck Dump Truck A Vendre thumbnail-1
Beiben Truck North Benz NG80 6x4 380HP 20CBM 10 Wheels Tipper Truck Dump Truck A Vendre thumbnail-2
Beiben Truck North Benz NG80 6x4 380HP 20CBM 10 Wheels Tipper Truck Dump Truck A Vendre thumbnail-3
Beiben Truck North Benz NG80 6x4 380HP 20CBM 10 Wheels Tipper Truck Dump Truck A Vendre thumbnail-4
Beiben Truck North Benz NG80 6x4 380HP 20CBM 10 Wheels Tipper Truck Dump Truck A Vendre thumbnail-5
Beiben Truck North Benz NG80 6x4 380HP 20CBM 10 Wheels Tipper Truck Dump Truck A Vendre photo-1
Beiben Truck North Benz NG80 6x4 380HP 20CBM 10 Wheels Tipper Truck Dump Truck A Vendre photo-2
Beiben Truck North Benz NG80 6x4 380HP 20CBM 10 Wheels Tipper Truck Dump Truck A Vendre photo-3
Beiben Truck North Benz NG80 6x4 380HP 20CBM 10 Wheels Tipper Truck Dump Truck A Vendre photo-4
Beiben Truck North Benz NG80 6x4 380HP 20CBM 10 Wheels Tipper Truck Dump Truck A Vendre photo-5
US$ 34500 - 44500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
BEIBEN
Place of Origin:
China
Model Number:
ND3252F38J
Contact Supplier Request Quote Chat Now
Bens Truck Sales And Service Co.,Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao yantai tianjin shanghai
Delivery Detail:
35 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BEIBEN
Place of Origin China
Model Number ND3252F38J
Condition New
Transmission Type Manual
Gross Vehicle Weight 25000
Fuel Type Diesel
Emission Standard Euro 2
Drive Wheel 6x4
Dimensions (L x W x H) (mm) 8400x2500x3500
Engine Capacity > 8L
Capacity (Load) 31 - 40t
Horsepower 351 - 450hp

Beiben Truck North Benz NG80 6x4 380HP 20CBM 10 Wheels Tipper Truck Dump Truck A Vendre

Dimension (mm×mm×mm)

8347×2500×3310

Cargo Box Dimension（L*W*H） (mm)

5600×2300x1500

Overhang(front/rear) (mm)

1410/1687

Wheel base (mm)

3800+1450

Max speed （km/h（kg）

12200

Engine

Model

WP10.340E32，turbocharged,

Fuel type

Diesel

Rated Power / rotating

250Kw/2200rpm

Maximum Torque / rotating speed）

9726

Fuel tanker capacity ）300

Clutch

Model

，Hydraulic boosting

Gearbox

Model

12JS160T, mechanical type，12 Forward speed gear. Based on Fuller technology.

Brake system

Service brake

Brake gap can be adjusted automatically, double circuit
air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

ZF8098, whole
circulation in ball type, hydraulic boosting

Frame

Equal width and
sections, section size 300*90*8+6+8(8mm integrated reinforced steel plate)

Front axle

Double-shoe pneumatic brake, non-driving steering
axle

Middle and Rear axle

Double-shoe reinforced
pneumatic brake, ductile casting casing, with hub reductor, double reduction
driving axle, reinforced wheel rim.

Tire

12.00R20 radial tire

Qty of tire

11

Electrical
system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

Full steel skeleton structure, covered with double layer steel plate;Can be tippedforwardly;

interior trimming:High back/shockabsorption seat for driver.Inner A/C, Steering wheel can be adjusted. Manual

door locks, manual glass lift

Exterior trimming:NG80B front gridplate, Metal bumper, three steps, sun visor, new mirror system.

New Unit

PackingNude Packing with Wax
Shipment: roro ship or by bulk cargo under the deck

Bens truck sales and service co.,limited is a professional export of heavy duty trucks. we can export different brands of China truck, such as HOWO, SHACMAN, BEIBEN, FAW. Our main products are tractor truck, tipper truck, cargo truck, all wheel driving truck, tank truck, semi trailer, light truck and truck spare parts.

We have big warehouse in Jinan City, and we have adequate spare parts in warehouse.

If you have need of trucks and spare parts, please feel free to contact.

Mob(whatsapp): 86-15168878143

Email: benstruck@163.com

Product Tags: beiben truck , beiben camion , north benz , beiben dump truck , north benz truck , beiben tipper truck for sale , beiben tipper truck , north benz beiben truck , beiben camion a vendre
