Product Overview

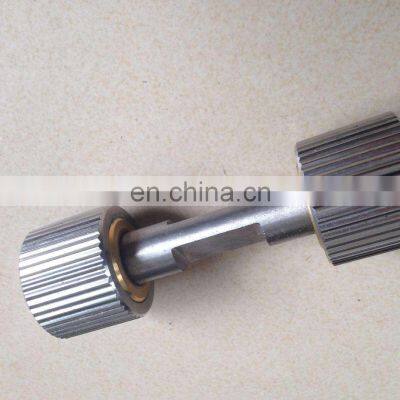

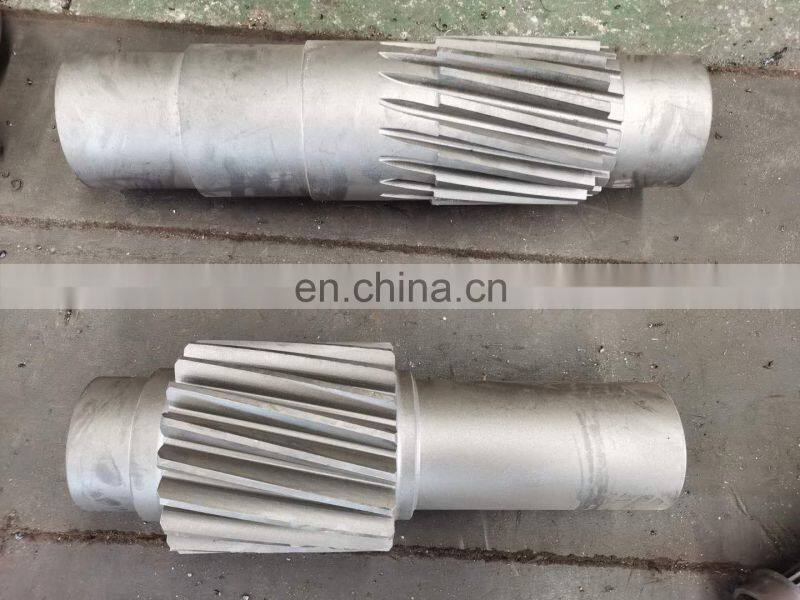

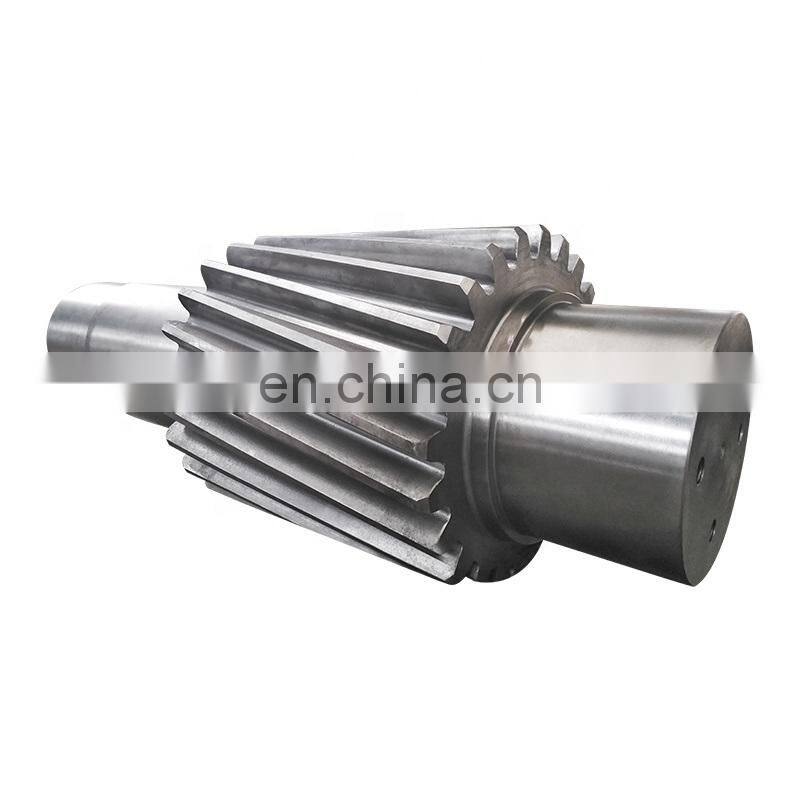

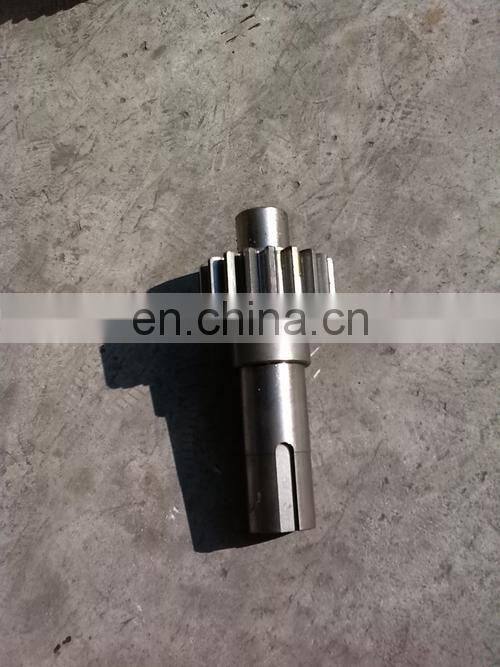

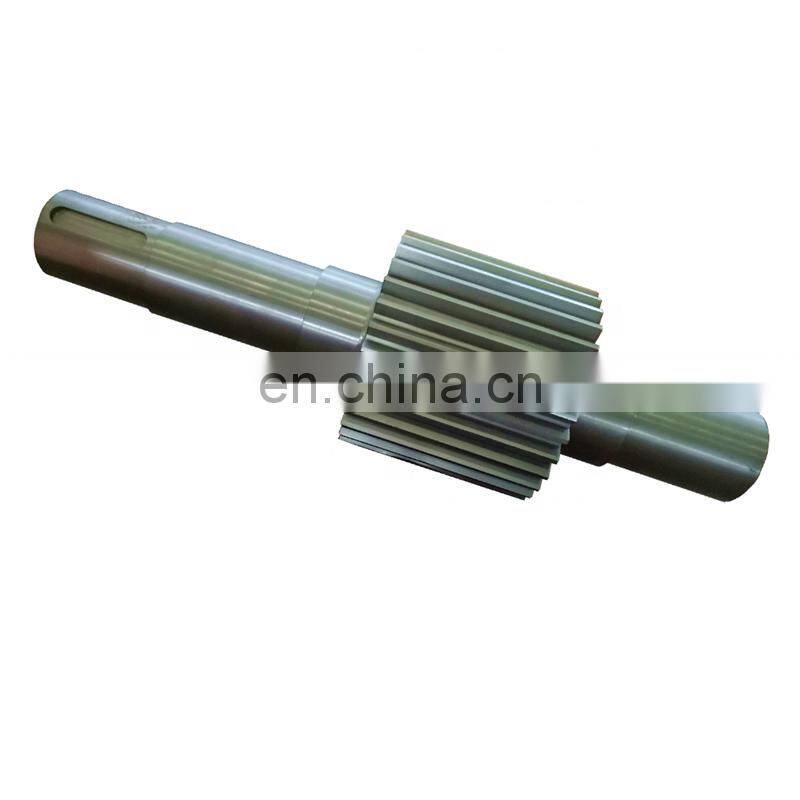

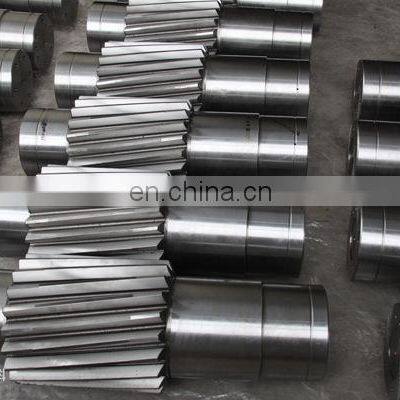

GEAR SHAFT
Condition: New
Warranty: 3 months
Applicable Industries: Manufacturing Plant, Construction works , Energy & Mining
After Warranty Service: Online support
Local Service Location: None
Showroom Location: None
Structure: Forging
Material: steel, 45#,alloy steel
Coatings: Plywood case
Torque Capacity: Custom-Making
Model Number: NON-STANDARD, According to drawing
Place of Origin: Henan, China
Brand Name: LIANDONG
Tolerance: ±0.01
Certificate: ISO,SGS
Product Description
According to the different shape of the axis, the shaft can be divided into crankshaft and straight shaft. According to the bearing capacity of the shaft, it can be divided into:
① rotating shaft, which bears both bending moment and torque when working, is the most common shaft in machinery, such as the shaft in various reducer.
② Spindles are used to support rotating parts and only bear bending moment without transmitting torque. Some spindles rotate, such as those of railway vehicles, while others do not, such as those supporting pulleys.
③ Transmission shaft is mainly used to transfer torque without bearing bending moment, such as long smooth shaft in crane moving mechanism, driving shaft of automobile, etc.
Right elevation
Left elevation
Front elevation
Advantages

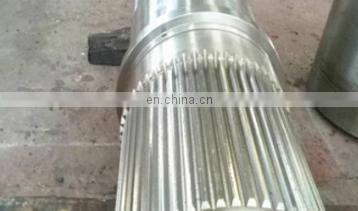

1.Large diameter long splines.
2.High precision, up to 0.005mm.
3.Splines are equally distributed, and the precision is up to 0.001mm.
3.Splines are equally distributed, and the precision is up to 0.001mm.
Product process

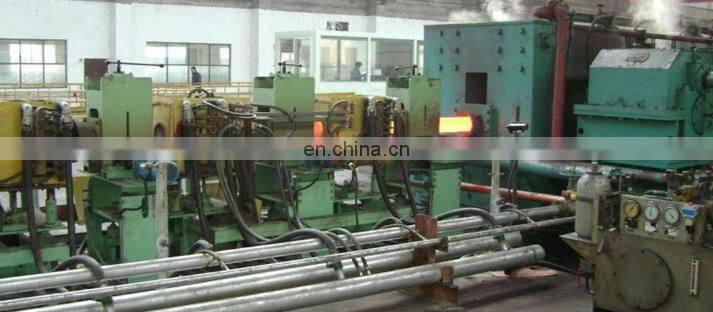

By large steam hammer , and thenternal structure is compact

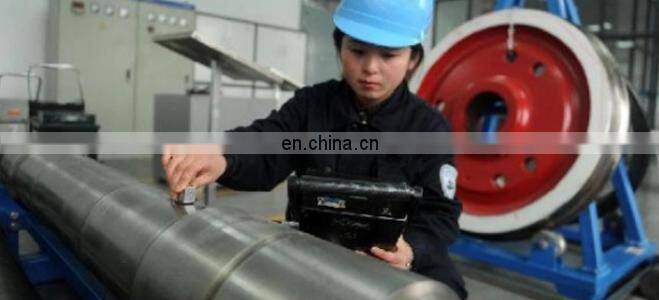

Detect the internal structure by UT device

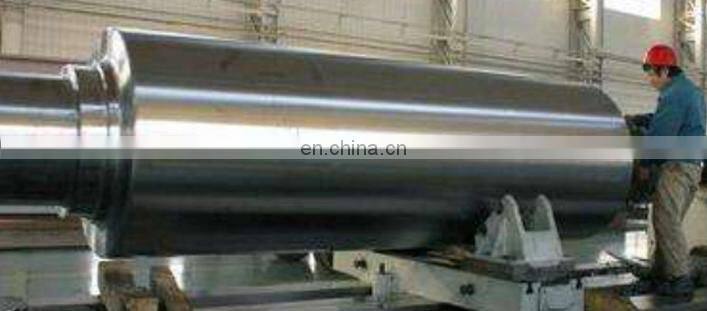

Rough turning by 10m CNChorizontal lathe single edgeleaves an allowance of 3-5mm
Strengthen the hardness and wear resistance
Guarantee the concentricity and parallelism of the shaft to prevent the deformation
Finish machining of outer diameter andstages to meet the tolerance size asper the requirements of drawings
Guarantee the concentricity of shaft and surface finish
Spline rough milling by CNC fourth shaft gantry boring & milling machine , with the allowance of 0 . 5-1mm
Finish the main spline by large fourth shaft,the precision can be up to 0 . 01mm
according to customer's requirement
Improve the surface rigidity of spline and wear resistance
Improve the surface rigidity of spline and wear resistance
Inspection in each process and provide the testing report forfinal inspection
avoid rusting and according to customers requirement
Our service
1、Both OEM and ODM services are available for every distingushied customer.2、We will provide you with the most favorable logistics
and distribution to ensure the safety of your product.
3、We support multiple payment methods such as I/c , T/T and Western Union.
4、Any problem about our products, we will glad to provide repair and engineering consult service, until it is solved.
5、Liandong focus on providing one-stop products and services based on the years of oversea and local experiences to ensure every
customer get satisfied product.
and distribution to ensure the safety of your product.
3、We support multiple payment methods such as I/c , T/T and Western Union.
4、Any problem about our products, we will glad to provide repair and engineering consult service, until it is solved.
5、Liandong focus on providing one-stop products and services based on the years of oversea and local experiences to ensure every
customer get satisfied product.
Our company
FAQ
1.Are you a manufacturer or a trading company? We are a factory,and we can manufacture shafts, gears, mining spare parts and so on
by ourself.2.What kinds of mechanical equipment are avaiable in your factory?
We can provide mixers, gear shafts, slewing bearings and other equipment. Customized for users is also our service scope
3.Will your mining spare parts be inspected when exported? All our mining spare parts are approved by third party.
4.Do you usually pay the insurance and freight? We always consider FOB, but the fee of insurance and freight can be negotiated.
by ourself.2.What kinds of mechanical equipment are avaiable in your factory?
We can provide mixers, gear shafts, slewing bearings and other equipment. Customized for users is also our service scope
3.Will your mining spare parts be inspected when exported? All our mining spare parts are approved by third party.
4.Do you usually pay the insurance and freight? We always consider FOB, but the fee of insurance and freight can be negotiated.
