Help CenterExcavator Parts PC100-3 HD450-5 HD400-5 Roller Gear
Related Products
-
Excavator Parts PC100-6 4D97 Sewing BearingsNegotiableMOQ: 1 -
Crane Rowing Machine, Slewing Bearings, Kawasaki Construction Equipment PartsNegotiableMOQ: 1
-
Large Diameter Ring Gear, Slewing Bearings, Swing Circle Kubota K040NegotiableMOQ: 1
-
the Three Row Roller Slewing Bearing, Slewing Bearings, Car Turntable for SaleNegotiableMOQ: 1
-
Corona Dentada Tornamesas, Slewing Bearings,engranaje Del Anillo InteriorNegotiableMOQ: 1
Advantages
1.ISO 9001:2008 certificate,12 years experience
2.High qualified material,low MOQ,excellent quality,competitive prices,professional advice
3.Standard and non standard are all acceptable
4.OEM available
5.Stronger loading capacity, Larger radial and axial force bearing ability
6.Independent R&D team
7.Strict quality control management
8.Exquisite technological standard
9.Sufficient stock
10.Excellent after sales service

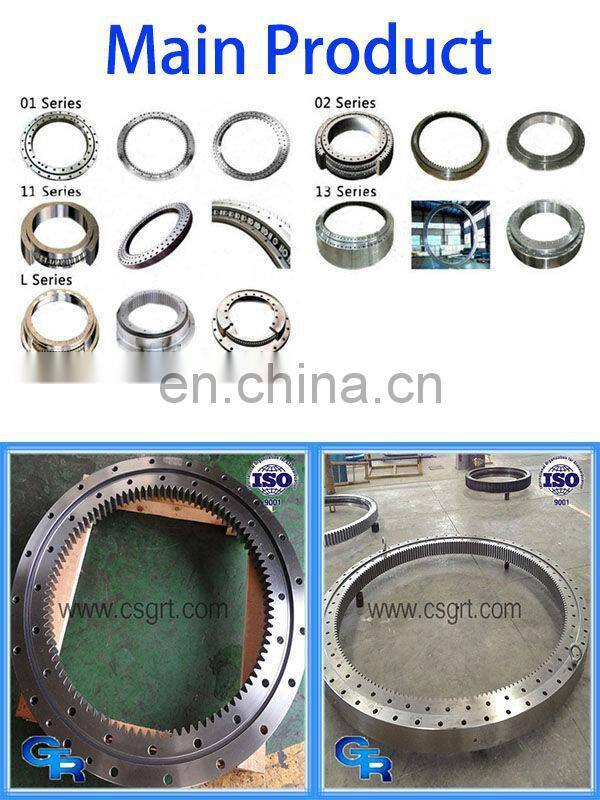

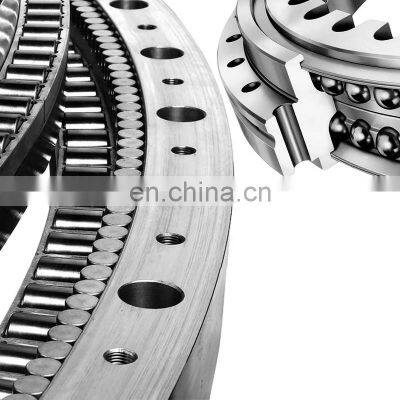

Main slewing ring bearing type
Single-row four-point contact ball series.
Single-row crossed roller series.
Double-row ball series.
Three-row roller series.
Part Material feature
Rolling element Gcr15/Gcr15SiMn whole quench hardening
Rings 50Mn/42Mocr/S48S Surface quench hardening
Retainer ZL102 cast aluminium alloy/ abrasion resistance
polyamide110 resin/Nylon
GRPA66.25/stainless steel NO20
sealing ring NBR rubber oil resistance
All above could produce according to customer's requirement
Manufacture equipment Test tool
Forging oil press 5m Test balancer
Forging ring rolling machine hardness tester
The reclaimer/Ingot light wave flaw detector
Quenching and tempering furnace tensile strength tester
Hob ginding machine/Travelling crane hardness test press
Natural Gas forge furnace physical chemistry snalyzer
Tempering furnace/Temper stove 150mm-5000mm vernier caliper
intermediate frequency quenching equipment sub micrometer diameter
Lather/NC Lathe/Vertical lathe/NC lineation Universal angle rule
Rocker driller/Gear Shaper/NC drilling machine Tooth thickness gauge
Hoobing machine/carbon sulfur analyzer quenching concentration meter
Air Compressor intelligent three element hight-speed analyzer
Plane grinding machine carbon sulfur analyzer
grinding machine Electric arc furnace
Packing |

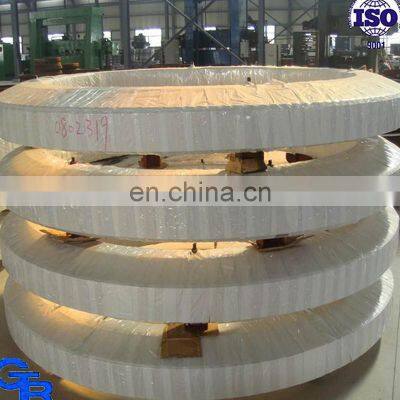

First lubricated, Second circled with plastic film/kraft paper/blue belt,then pakaged in wooden case,last gethered in Wooden pallet.
Others
MOQ 1 piece
Lead time 30 days
Payment terms T/T /L/C/ Escrow/Wester union/
Ports Shanghai,Qingdao
Application
Engineering machinery,
Construction machinery,
Metallurgical mining machinery,
Marine port machinery,
Sewage Treatment Plant;
Wind Power Field;
Agricultural Machinery;
Petrochemical machinery,
Filling machines,
Engineering vehicles,
Military equipment and other industries.
