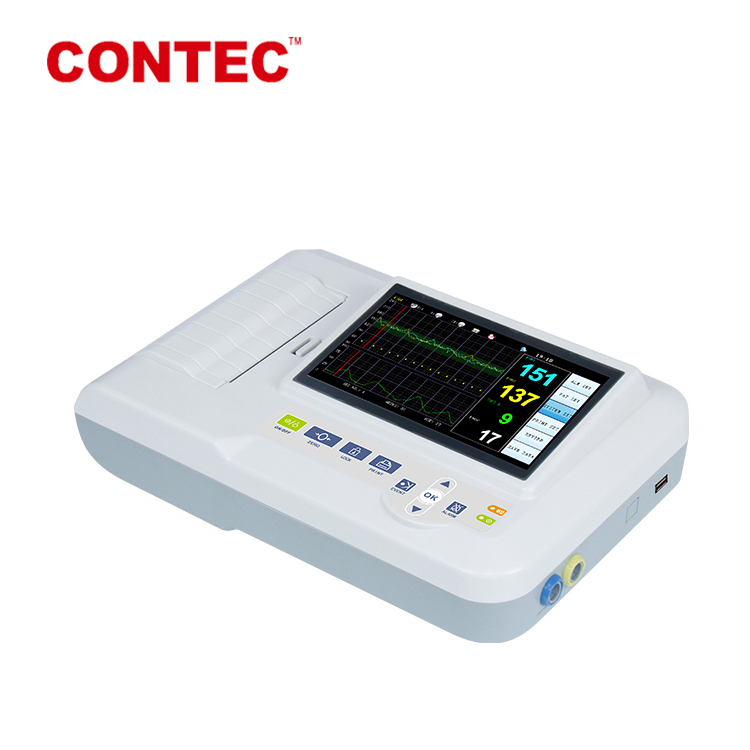

Factory Supply CONTEC CMS800G2 Profesional Fetal Monitor FHR TOCO Fetal Monitor







Introduction
Fetal Monitor can real-time acquire FHR, TOCO and FMOV, which provides reference data for clinical use. The device is only suitable for use in hospitals and clinics operating by professional medical staff.

Function
1.7.0" color touch screen.
2.Display monitoring curve and data clearly.
3.Area mark for normal FHR (120 BPM~160 BPM).
4.Manual record for fetal movement.
5.Alarm for abnormal FHR.
6.Real-time monitoring for continuous 24 hours.
7.Storage, playback and print the monitoring curve for continuous 12 hours.
8.With waveform lock function.
9.Optional interface languages: Chinese and English.
10.Optional twins monitoring.
11.9-crystal and broad beam transducer.
12.Extra long-life and high-resolution built-in thermal printer.
13.Connect with central station by the built-in wireless card (optional ) to form a network system.

Specification
Safety
Type of protection against electric shock: Class Ⅰ
Degree of protection against electric shock: Type B applied part
Working Voltage: AC 100 V~240 V
        DC 8.4V, lithium battery
Rated frequency: 50 Hz/60 Hz
Power consumption: P<60 VA
Fuse: T1.6AL250V
Print
Record paper: thermal paper roll
Print width: 112 mm
Valid print width: 104 mm
Paper speed: 1 cm/min, 2 cm/min, 3 cm/min (optional)
Record information: hospital name, patient name, case number, bed number, gestational age, print speed, time and FHR curve, TOCO curve, fetal mark, etc.
Battery type
Build-in rechargeable lithium battery, 3500 mAh/7.4 V
Ultrasound probe
Nominal Frequency: 1.0 MHz
Work Frequency: 1.0 MHz±10%
Negative peak sound pressure : p_<1 MPa
Output beam intensity : Iob<20 mW/cm2
Spatial-peak Temporal-average Derived Intensity: Ispta<100 mW/cm2
Spatial-average Temporal-average Derived Intensity: Isata<10 mW/cm2
FHR
Range: 50 BPM~240 BPM
Resolution: 1 BPM
Accuracy: ±2 BPM
TOCO
Range: 0~100%
Resolution: 1%
Nonlinear error: <±10%
RZ way: manual
Fetal Marking
Manual button

Accessories
A MPM1B30 Fetal Monitor three in one ultrasound probe (six core of raymer head)
A User Manual
Two abdomen belts
An earth line
Two rolls of Record paper
A power cord
Two Fuses

Physical Characteristics
Dimension: 315 mm (L) × 215 mm (W) × 92 mm(H)
Weight: about 2 Kg
