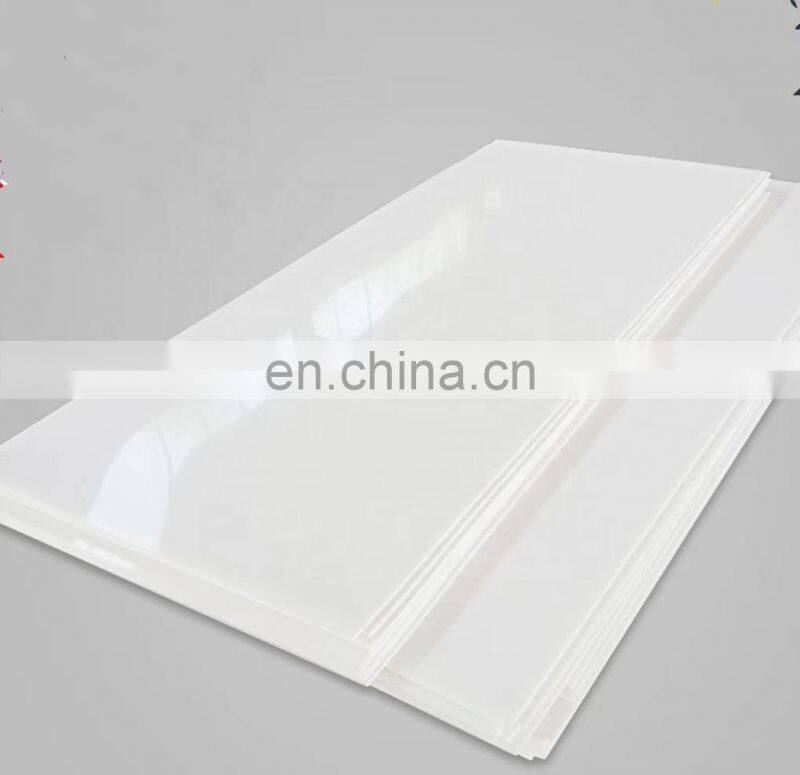

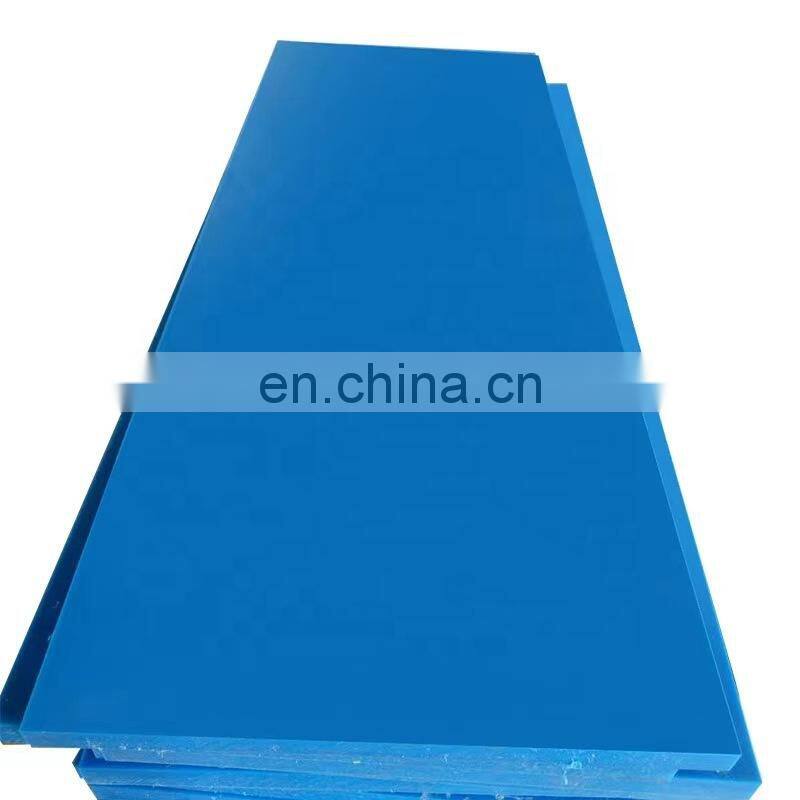

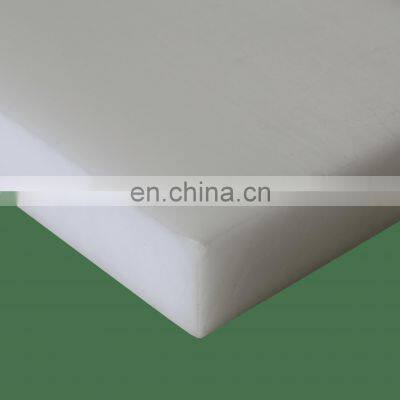

Help CenterHigh Abrasion Resistance pe 1000 Uhmwpe Sheet Double Color Hdpe Sheet
Related Products
-
Environment-Friendly Customized Uhmw-pe Wear Parts Uhmwpe Wear Strip Plastic HDPE BlockNegotiableMOQ: 1 -
High Density Polyethylene HDPE UHMW PE Plastic Engineer Use SheetsNegotiableMOQ: 1
-
Wear Resistant Self Lubricating Uhmwpe Sheets 20mm Uhmwpe Parts PartsNegotiableMOQ: 1
-
Uhmwpe Plastic Sheet Marine Fender Face Pad Ship Fenders Panel Impact-resistant Pads Marine BoardNegotiableMOQ: 1
-
Customized Hdpe Sheet Recycled Plastic Uhmwpe BoardNegotiableMOQ: 1
Ultra high molecular weight polyethylene (UHMWPE) is a kind of polyethylene with a molecular weight of more than 1.5 million. UHMWPE has excellent properties, it focused on almost merits of various engineering plastics, such as wear and impact resistance, self lubrication, corrosion resistance low temperature, sanitation non-toxic , easy adhesion, non-adsorbent, low density and etc.
Specification:
|
size: |
4100x1020mm |
|
3720x1240mm |
|
|
2050x1260mm |
|
|
color: |
black , white or customized |
|
thickness: |
10mm-120mm |
|
Colors and size can be customized. |
|
UHMWPE sheet Advantages & Key Features:
--Highest abrasion resistance of any polymer, 6 times more wear resistant than steel
--Anti-Weather & Anti-Aging
--Self-lubricating, Very low coefficient of friction
--Excellent chemical & corrosion resistant
--superior impact resistant, Noise- absorption, Vibration-absorption
--Temperature range: -2600C ~ +800C; Very high resistance to cold, doesn’t become
fragile even under -1800C
--High tensile Strength
--Non-Toxic and smell
--UV resistance
--Flame Retardant; relatively low in water absorption
Technical data
|
Property |
Unit |
Value |
|
Density |
g/cm3 |
0.93-0.96 |
|
Average molecular weight |
g/mol |
over 6 million |
|
Tensile strength (23°C in air) |
MPa |
22 |
|
Breaking strength |
MPa |
42 |
|
Tensile strain at break |
% |
600 |
|
Charpy impact strength (notched) |
mJ/mm2 |
No break |
|
Ball indentation hardness |
N/mm2 |
42 |
|
Shore D hardness |
-- |
D65 |
|
Abrasion |
% |
100 |
|
Elongation at break at 23 degress |
% |
600 |
|
Temperature resistance |
°C |
-269 to +90 |
|
Melt Temperature |
°C |
130-138 |
Application
Uhmwpe sheets can replace carbon steel, stainless steel, bronze and other materials used in many industries:
1.Lining: Silos, hoppers, wear-resistant plates, brackets, chute like reflux devices, sliding surface, roller, etc.
2. Food Machinery: Guard rail, star wheels, guide gear, roller wheels, bearing lining tile, etc.
3. Paper-making machine: Water lid plate, deflector plate, wiper plate, hydrofoils.
4. Chemical industry: Seal filling plate, fill in dense material, the vacuum mold boxes, pump parts, bearing lining tile, gears, sealing joint surface.
5. Other: Agricultural machinery, ship parts, electroplating industry, extreme low temperature mechanical components.
Company Introduction
Zhangjiakou Kenuo engineering Plastic CO.LTD is established on 2009, located in Zhangjiakou, Hebei province, 150KM away from Beijing. Our factory area over 660 thousand square meters, the fixed assets over 75 millions RMB. The main products including: Ultra-high molecular weight polyethylene(UHMW-PE); Engineering Plastics; Kily Rare-Earth Nylon Product; Polyformaldehyde; Polytetrafluoroethylene. The products are widely used in industry, construction industry, ice and snow sports industry, shipbuilding and Marine transportation industry and other industries. Our products have been widely used in China, and also have been exported to Europe, America, Asia, and Africa etc.We are looking forward you to join us to have a great success together!
Certificate
