Trough training plastic roller for conveyor belt

Name: Trough training plastic roller for conveyor belt
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Our Company

I LOVE CHINA

I love China, I love my hometown!

I LOVE COMPANY

I love Company,I love my team!

Product Description

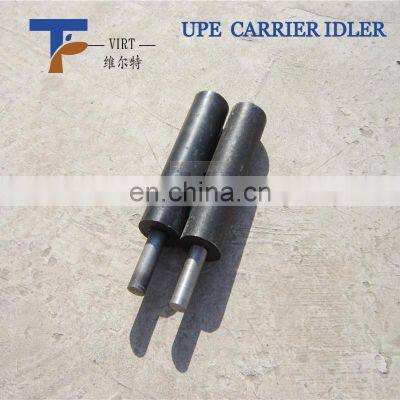

Trough training plastic roller for conveyor belt

Ultra-high molecular weight polyethylene (UHMWPE) belt conveyor roller is a high-tech product, which consists of uhmwpe pipe,metal bearing, metal shaft , plastic bearing housing , sealing ring and so on . Compared with metal roller , uhmwpe plastic roller has many obvious advantages in performance.

Performance of Trough training plastic roller for conveyor belt

1.Good performance of self-lubrication , wear resistance and no caking. The surface of roller is not easy to scale .
2.Low friction coefficient and it is good for belt.
3.Flexible and smooth movement , and low driving power consumption .
4.Light weight , easy installation and replacement . Reduce the labor intensity and maintenance.
5.The labyrinth seals makes waterproof and dustproof effect more significant.

Name	UHMWPE CONVEYOR ROLLER	STEEL CONVEYOR ROLLER	CERAMIC CONVEYOR ROLLER
Corrosion resistance	High	Low	high
Toughness (powerful force)	High	High	Low
Sealability	Very good	Normal	Bad
adhesive quality	Not	Easy	Easy
coefficient of sliding friction(to belt )	0.10-0.15	0.68-0.80	1.4-1.5
abrasion performance	High	Normal	Low
Abradability(belt )	No	yes	yes
Operating power consumption	0.85	1	1.05
Noise and vibration	Low	High	Higher
Weight	4	10	15
Maintenance	free	Need	Need
Life	5-8 years	1-2 years	1-2 years

Application of Trough training plastic roller for conveyor belt

This product is widely used in the original dock transporting places where dust is bigger and the environment has high corrosive , such as mining , power , steel , stone materials factory , cement and coking plant , coal washing factory , salt plant , alkali plant , fertilizer factory , dock and so on .

Product Parameters

SN	ITEM	UNIT	INDEX
1	Radial circular run-out	MM	≤0.50
2	Axial drifting	MM	≤0.70
3	Rotation resistance	N	≤2.50
4	After-falling off axial displacement	MM	≤1.50
5	After-falling off rotation resistance	N	≤3.75

China Standard Specifications

Shell Diameter (mm)	Shaft Diameter at the Bearing	Bearing Series	Material
89(3.5'')	17mm/20mm	6204	HDPE/UHMWPE
102(4'')	20mm/25mm	6204/6205	HDPE/UHMWPE
108(4.25'')	20mm/25mm	6204/6205	HDPE/UHMWPE
114(4.5'')	20mm/25mm	6204/6205	HDPE/UHMWPE
127(5'')	20mm/25mm/30mm	6204/6205/6305/6206	HDPE/UHMWPE
133(5.2'')	20mm/25mm/30mm	6204/6205/6305/6206	HDPE/UHMWPE
140(5.5'')	25mm/30mm	6205/6305/6206	HDPE/UHMWPE
152(6'')	25mm/30mm/35mm	6305/6206/6306/6207	HDPE/UHMWPE
159(6.25'')	30mm/35mm/40mm	6306/6207/6308	HDPE/UHMWPE
165(6.5'')	35mm/40mm/45mm	6206or6306/6207/6309	HDPE/UHMWPE
Applications:Suitable for use in a wide variety of applications and products such as cement,coal,gravel,fertilisers,ports,chemicals,quarrying,zinc mining,grain.
Shaft:(mild steel/stainless steel) Seal:Triple Labyrinth Seal Bearing Type: SKF,FAG,NTN.(other brands available on request.)

TIPS DURING OPERATION:

1.Prevent the sharp objects from scoring roller surface

2.Should not be used in the temperature greater than 80 degrees

3.Shall not use to destroy the structure and cause the loose firm ware.

Product Details Show
