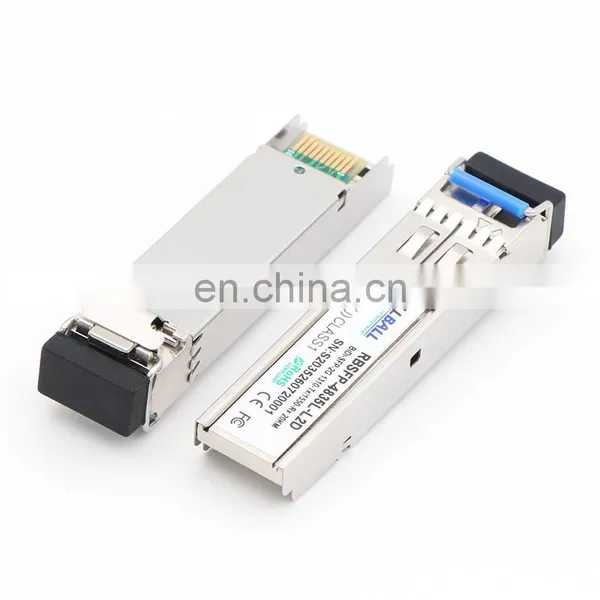

TRx1310/1550nm 20km bidi sfp sc connector sfp transceiver
Description
1.Rollball DWDM SFP Transceiver exhibits excellent wavelength stability, supporting operation at 100 GHz channel, cost effective module. It is designed for DWDM SONET/ SDH, Gigabit Ethernet and Fiber- Channel applications.
2.The transceiver consists of two sections: The transmitter section incorporates a colded DFB laser. And the receiver section consists of a APD photodiode integrated with a TIA.
3.All modules satisfy class I laser safety requirements. Rollball DWDM SFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters.
Features
Wavelength selectable to C-band and L-band ITU-T grid wavelengths
Suitable for use in 100GHz channel spacing DWDM systems
DWDM SFP MSA Compliant
Diagnostic Performance Monitoring of module temperature
Laser temperature and TEC current
Extended link budget with APD receiver technology
OC48/STM-16 Long Reach 80km(1600 ps/nm), 120km(2400 ps/nm) Versions
RoHS compliant and lead free
Applications
SFP Transceivers for DWDM SONET/ SDH
Ethernet IEEE 802.3ae
Fiber Channel
Transmitter Specifications – Optical
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Data Rate Multirate |
Mra |
155 |
2488 |
2667 |
Mbps |
Center Wavelength (SOL) |
lc |
lc -25 |
lc |
lc +25 |
pm |
Center Wavelength (EOL) |
lc |
lc -100 |
lc |
lc+100 |
pm |
Optical Transmit Power |
Po |
0 |
2 |
4 |
dBm |
Optical Transmit Power (disabled) |
PTX_DISABLE |
- |
- |
-40 |
dBm |
Extinction Ratio |
ER |
8.2 |
|
- |
dB |
Channel Spacing |
f |
- |
100 |
- |
GHz |
Jitter Generation |
TJP-P |
- |
- |
70 |
mUI |
Spectral Width (-20dB) |
Dl20 |
- |
0.1 |
0.3 |
nm |
Side Mode Suppression Ratio |
SMSR |
30 |
- |
- |
dB |
Eye Mask |
Compliant with Bell core GR-253-CORE & ITU G.957 for SONET/SDH and with IEEE 802.3ae for Ethernet and Fibre Channel |
||||
APD Receiver Specifications – Optical
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Receiver Sensitivity(oc48) |
Rsens-1 |
- |
-30 |
-28 |
dBm |
|
Receiver Sensitivity (OSNR = 20dB) |
Rsens-2 |
- |
- |
-24 |
dBm |
Maximum Input Power |
RX-overload |
- |
- |
-7 |
dBm |
Input Operating Wavelength |
λ |
1528 |
- |
1564 |
nm |
Reflectance |
Rrx |
- |
- |
-27 |
dB |
Loss of Signal Asserted |
|
-40 |
- |
- |
dBm |
LOS De-Asserted |
|
- |
- |
-28 |
dBm |
LOS Hysteresis |
|
0.5 |
- |
- |
dB |
Product List
| DWDM SFP (1.25G/2.5G) with DDMI, XX is C-Band and L-Band ITU, XX=17, 18, 19…, which 17=1563.86nm, 18=1563.05nm… | |||||||
| RDSFP-24XX-L8 | 1.25G | C/L-Band ITU | 80KM | SFP | 0~70 | DFB+APD | |
| RDSFP-24XX-12 | 1.25G | C/L-Band ITU | 120km | SFP | 0~70 | DFB+APD | |
| RDSFP-48XX-L8 | 2.5G | C/L-Band ITU | 80KM | SFP | 0~70 | DFB+APD | |
| RDSFP-48XX-12 | 2.5G | C/L-Band ITU | 120km | SFP | 0~70 | DFB+APD | |
