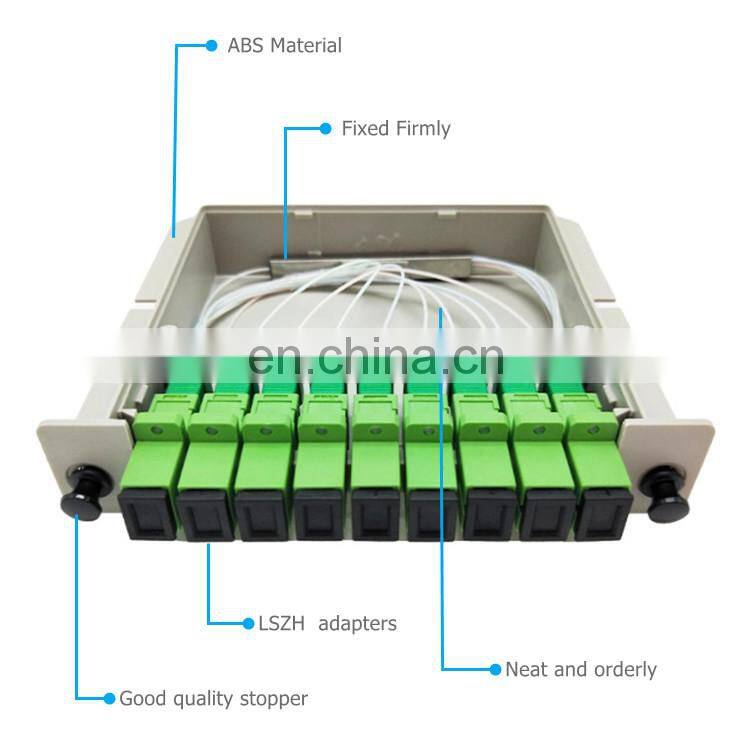

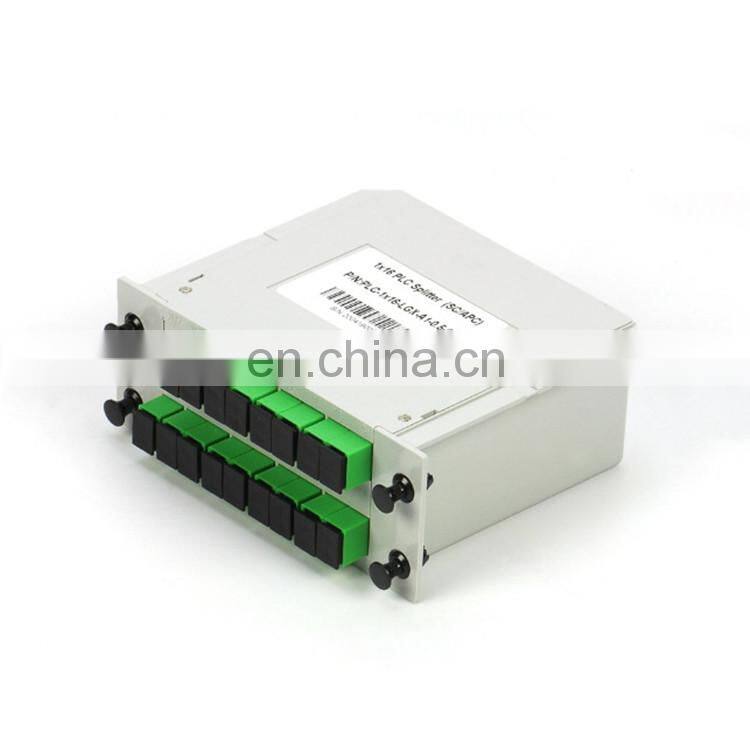

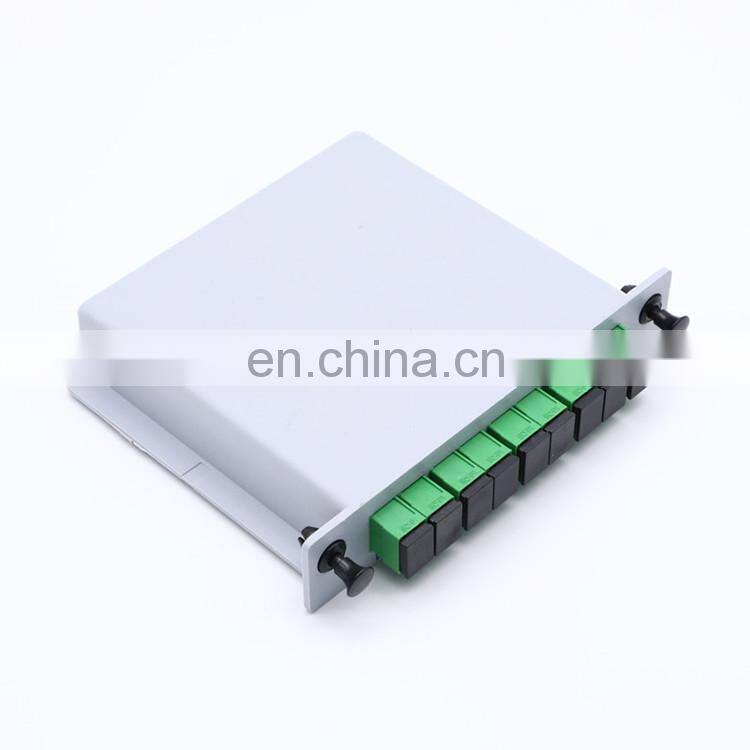

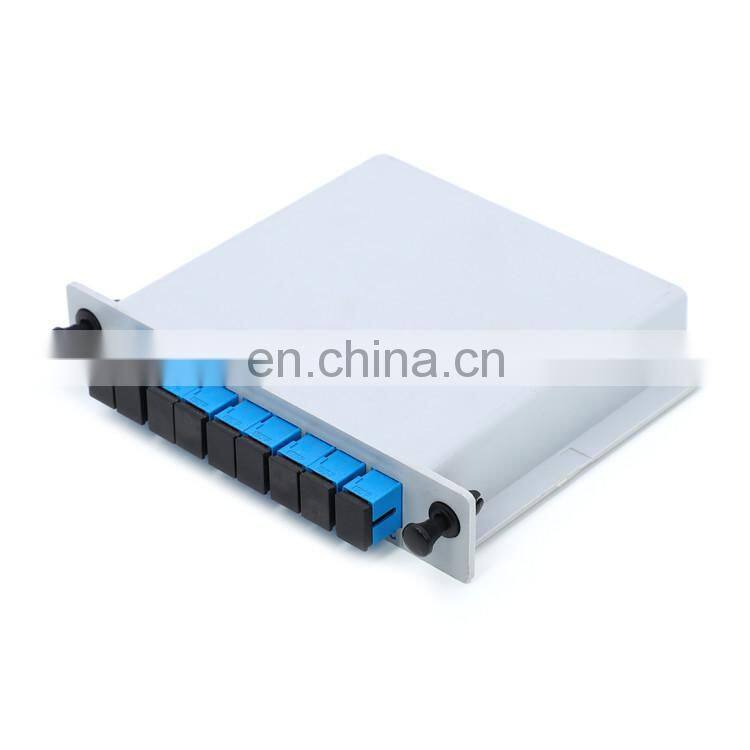

PLC Splitter 1*8 Sc/APC Sc/Upc Insertion Type PLC Splitter
- T/T Credit Card
You May Like
-
Cassette Insertion Card Type 1*16 1*8 Passive Splitter Fiber Optic PLC Splitter with Sc Connector
-
FTTH fiber optic 1X2 1X4 1X8 1X16 1X32 Sc/APC Sc/Upc Insertion card LGX Type PLC Splitter for ftth network
-
Lgx Cassette Type Optical Fiber PLC Splitter 1*8 with SC/UPC connector
-
FTTH CABLE GPON EPON SC FC LC UPC APC connector G657A 1m 1.5m 2m Fiber optic 1*8 1*16 PLC splitter
-
FTTH PLC1x16 sc upc apc fiber optic splitter optical fiber plc splitter mini module
-
Sc/APC Sc/Upc Insertion Type CE 1x8 Way plug-in Type singlemode multimode pasive optical fiber PLC splitter
Product Description
1).Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical
waveguide technology.
2).It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
3).We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
4).All products meet GR-1209-CORE and GR-1221-CORE requirements.
|
Parameter |
Specification |
||||||||
|
Operating Wavelength (nm) |
1260 ~ 1650 |
||||||||
|
Type |
1x4 |
1x8 |
1x16 |
2x4 |
2x8 |
2x16 |
1x32 |
2x32 |
1x64 |
|
Insertion Loss (dB) Max. * |
<7.3 |
<10.5 |
<13.5 |
<7.6 |
<11.2 |
<14.5 |
<16.2 |
<18.2 |
<20.5 |
|
Uniformity (dB) Max.* |
<0.8 |
<1.0 |
<1.5 |
<1.0 |
<1.5 |
<2.0 |
<2.0 |
<2.5 |
<2.5 |
|
PDL(dB)Max.* |
<0.2 |
<0.2 |
<0.3 |
<0.3 |
<0.3 |
<0.4 |
<0.3 |
<0.4 |
<0.3 |
|
Directivity (dB) |
≥55 |
||||||||
|
Return Loss (dB) |
UPC ≥55 APC ≥60 |
||||||||
|
Operating Temperature (°C) |
-5~ +75 |
||||||||
|
Storage Temperature (°C) |
-40 ~ +85 |
||||||||
|
Fiber length |
1m or custom length |
||||||||
|
Fiber Type |
Corning SMF-28e fiber |
||||||||
|
Connector Type |
Custom specified |
||||||||
|
Power Handling (mW) |
300 |
||||||||
Notes:1.Specified without connectors. 2.Add an additional 0.2dB loss per connector
