Engine Bearing Roller Bearing Needle Bearing HK1412
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Rich Stock Cam Rollers CBK-320 Special Bearings Cam Follower Bearing
-
IKO Bearing KR30 Cam Follower Bearing CF12
-
Used For Machine NK 90/25 Needle Roller Bearing NK 90/25 XL
-
NKIS 35 Roller Bearing Size 35x58x22mm Needle Roller Bearing Sweden Brand
-
HK0808 Roller Bearing Needle Roller Bearing Famous Brands
-
Automotive Industry Bearing Thrust Roller Bearing 29288
Product Description
Kenworth Machinery Equipment (Shandong) Co., Ltd

Engine Bearing Roller Bearing Needle bearing HK1412
Technical Data
Needle Roller Bearing HK1412 Data


DIMENSIONS | ||
Fw | 14 mm | |
D | 20 mm | |
C | 12 mm | |
r | min. 0.8 mm | |
CALCULATION DATA | ||
Basic dynamic load rating | C | 6.82 kN |
Basic static load rating | C0 | 8.65 kN |
Fatigue load limit | Pu | 0.98 kN |
Reference speed | 15 000 r/min | |
Limiting speed | 17 000 r/min | |
MASS | ||
Mass bearing | 0.011 kg |

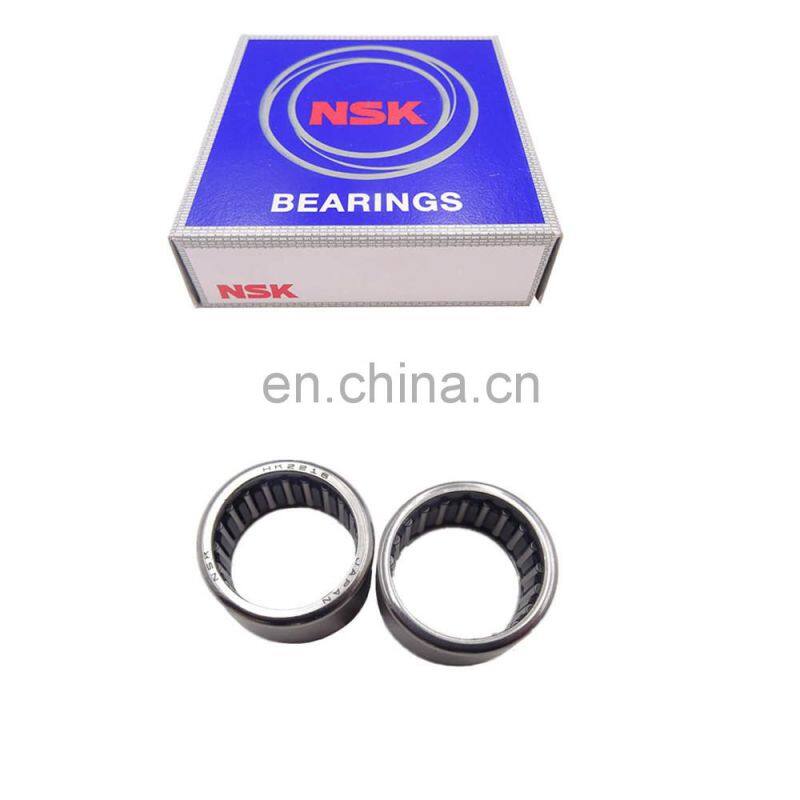

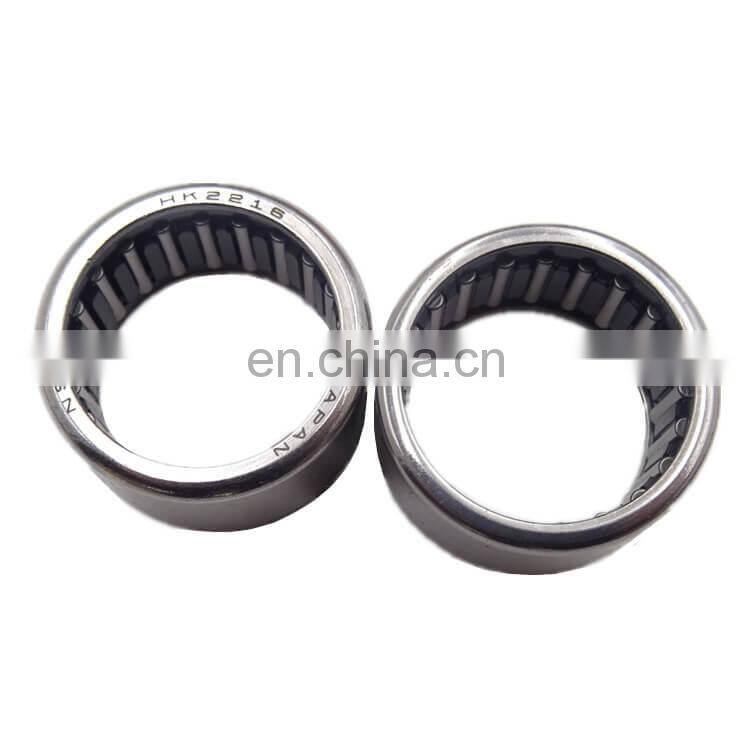

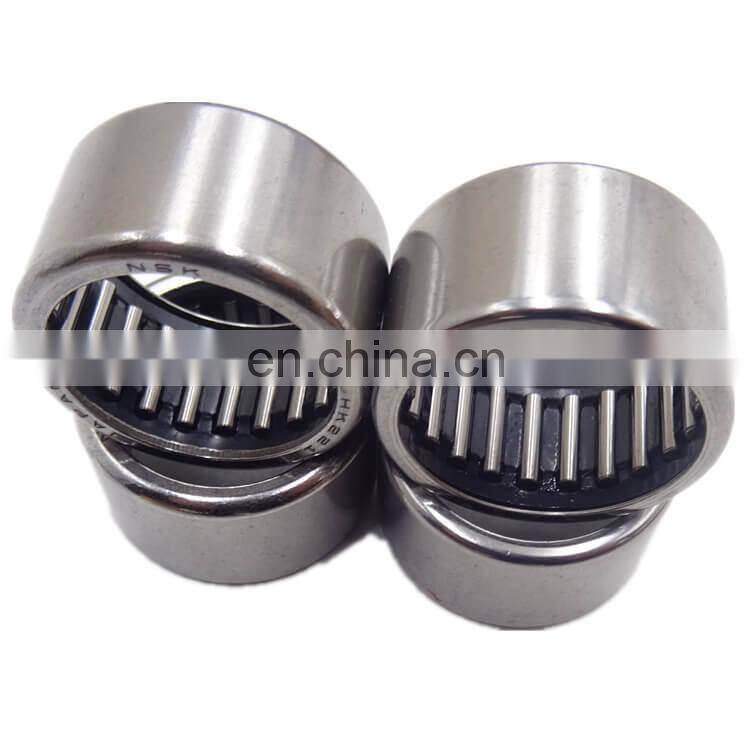

product show
NSK HK1412 Machined have an outer ring made by machining, heat treatment, and grinding.

The outer ring has stable high rigidity and can be easily used even for light alloy housings.

It is therefore possible to select a suitable bearing for use under various conditions such as heavy loads and high-speed or low-speed rotations.

Why Choose Us



Bearing Numbers
HK series | ||||
Model | d (mm) | D (mm) | H (mm) | W (kg) |
HK1210 | 12 | 16 | 10 | 0.005 |
HK1212 | 12 | 16 | 12 | 0.006 |
HK1214 | 12 | 18 | 14 | 0.011 |
HK1215 | 12 | 17 | 15 | 0.010 |
HK1218 | 12 | 17 | 18 | 0.011 |
HK13.512 | 13.5 | 20 | 12 | 0.011 |
HK1412 | 14 | 20 | 12 | 0.011 |
HK1416 | 14 | 20 | 16 | 0.014 |
HK1512 | 15 | 20 | 12 | 0.011 |
HK1512 | 15 | 21 | 12 | 0.011 |
HK1514 | 15 | 21 | 14 | 0.013 |
HK1516 | 15 | 21 | 16 | 0.015 |
HK1520 | 15 | 20 | 20 | 0.017 |
HK1522 | 15 | 21 | 22 | 0.020 |
HK1612 | 16 | 22 | 12 | 0.012 |
HK1614 | 16 | 22 | 14 | 0.014 |
HK1616 | 16 | 22 | 16 | 0.016 |
HK1712 | 17 | 23 | 12 | 0.012 |
HK1714 | 17 | 23 | 14 | 0.014 |
HK1716 | 17 | 23 | 16 | 0.016 |
HK1718 | 17 | 23 | 18 | 0.019 |
HK1722 | 17 | 23 | 22 | 0.016 |
HK1812 | 18 | 24 | 12 | 0.013 |
HK1816 | 18 | 24 | 16 | 0.018 |
HK2010 | 20 | 26 | 10 | 0.012 |

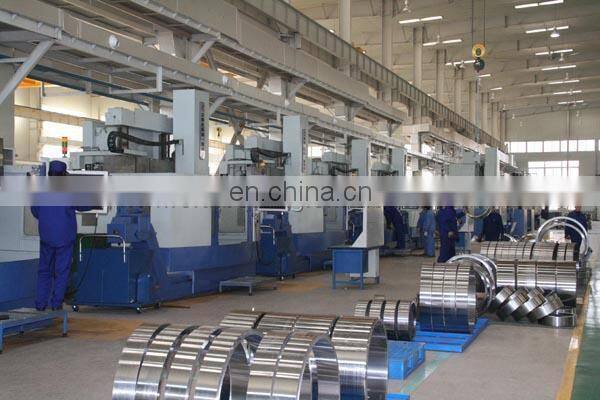

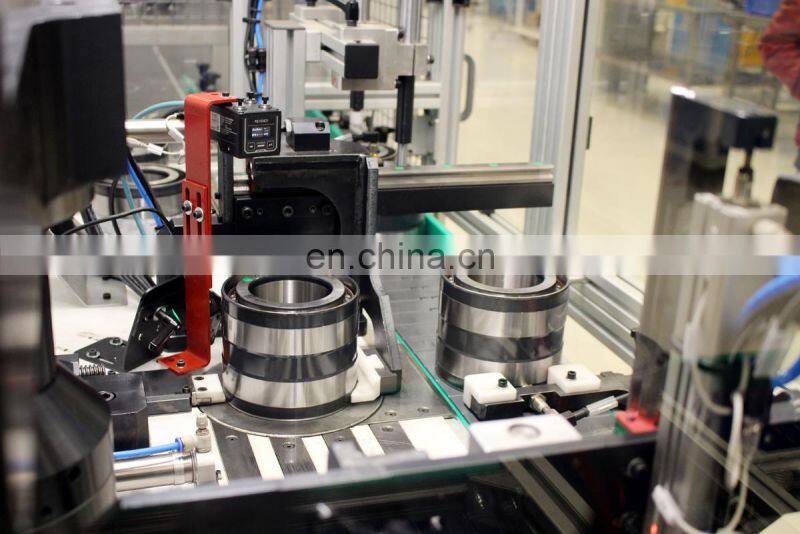

Company Profile



Kenworth Machinery Equipment(Shandong) Co.,Ltd is now a leading bearing distributor in China for a series of original worldwide famous brands of bearings, including: SKF , FAG ,INA ,TIMKEN ,NSK , NTN ,KOYO,IKO ,NACHI , FYH ,ASAHI .
We are the manufacturer of bearings .KWB is our own brand.
We have our own factory.OEM IS AVAILABLE.
We are the manufacturer of bearings .KWB is our own brand.
We have our own factory.OEM IS AVAILABLE.






FAQ
1.Q:Are you distributor or factory ?
A: We are factory AND distributor.
2.Q:Can I get samples?
A:YES.We can send samples to check quality first.
3.Q:Could you accept OEM and customize?
A:Of course, OEM is accepted and we can customize for you according to sample or drawing.
4.What kind of transport do you have ?
A:According to the weight, we will choose the most appropriate mode of transport for you. Our freight forwarding is efficient and cheap.
5.How long is your delivery time?
A: Generally it is 3-5days if the goods are in stock,or it is 5-15days if the goods are not in stock.It is according to quantity.
6.Q:WHY DO WE CHOOSE YOUR COMPANY?
A:Our company has been a professional bearing manufacture and distributor for many years,therefore we have advantage in quality control and price.We have decades of professional experience, there are a lot of old customers for several years. We are looking for long term cooperation so as to achieve win-win situation.
A: We are factory AND distributor.
2.Q:Can I get samples?
A:YES.We can send samples to check quality first.
3.Q:Could you accept OEM and customize?
A:Of course, OEM is accepted and we can customize for you according to sample or drawing.
4.What kind of transport do you have ?
A:According to the weight, we will choose the most appropriate mode of transport for you. Our freight forwarding is efficient and cheap.
5.How long is your delivery time?
A: Generally it is 3-5days if the goods are in stock,or it is 5-15days if the goods are not in stock.It is according to quantity.
6.Q:WHY DO WE CHOOSE YOUR COMPANY?
A:Our company has been a professional bearing manufacture and distributor for many years,therefore we have advantage in quality control and price.We have decades of professional experience, there are a lot of old customers for several years. We are looking for long term cooperation so as to achieve win-win situation.
