CSK Series One Way Bearing Clutch Keyway Bearings CSK6002PP

Kenworth Machinery Equipment (Shandong) Co., Ltd.
CSK Series One Way Bearing Clutch Keyway Bearings CSK6002PP thumbnail-1
CSK Series One Way Bearing Clutch Keyway Bearings CSK6002PP thumbnail-2
CSK Series One Way Bearing Clutch Keyway Bearings CSK6002PP thumbnail-3
CSK Series One Way Bearing Clutch Keyway Bearings CSK6002PP thumbnail-4
CSK Series One Way Bearing Clutch Keyway Bearings CSK6002PP thumbnail-5
CSK Series One Way Bearing Clutch Keyway Bearings CSK6002PP photo-1
CSK Series One Way Bearing Clutch Keyway Bearings CSK6002PP photo-2
CSK Series One Way Bearing Clutch Keyway Bearings CSK6002PP photo-3
CSK Series One Way Bearing Clutch Keyway Bearings CSK6002PP photo-4
CSK Series One Way Bearing Clutch Keyway Bearings CSK6002PP photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2006
Annual Export Value:
US$1 Million - US$1.5 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
Product name
One way Bearing Clutch Keyway Bearings CSK6002PP
Size
15x32x9mm
Feature
high performance
Application
Printing machinery, food machinery, electric rollers, reducers, etc.
Service
OEM Customized Services
Keywords
one way clutch bearing
Delivery Time
Normal Within 3 Days
Sample
Avaible

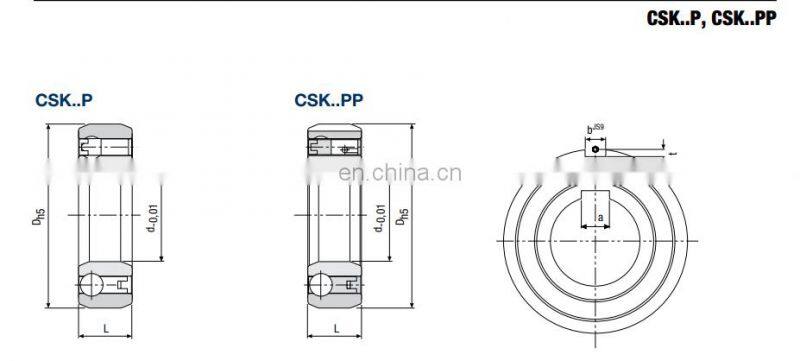

CSK..P.
CSK..P has the same construction and outside dimensions as type CSK, but has a keyway on the inner race. These clutches can be mounted on a shaft with recommended k6 tolerance and the outer race must be pressed into a rigid housing with a recommended N6
tolerance. The resulting housing and shaft diameters must be checked to ensure that the bearing has adequate radial clearances.

CSK..PP.

CSK..PP features a keyway on both the inner and outer race. The recommended mounting tolerances are k6 on the shaft and K6 in the rigid housing. A h6 tolerance on the shaft or H6 in the housing are also acceptable for a light press fit assembly. Always
check to ensure that the bearing has adequate radial clearances. Operating temperature: 21 to 140°F (-6 to 60°C). Special greases are available for operating temperatures: -40 to 212°F (-40 to 100°C)
Specification
Model number
Dimension (mm)
W.G(Kg)
Dimension (mm)
ID
OD
T
H
h
d1
D1
CSK8
8
22
9
0.015
3
3
8.5
21.5
CSK12
12
32
10
0.04
2
4
13.2
31.4
CSK15
15
35
11
0.05
2
5
16.2
34.4
CSK17
17
40
12
0.07
2
5
18.2
39
CSK20
20
47
14
0.11
3
6
21.6
45.5
CSK25
25
52
15
0.14
6
8
27
50
CSK30
30
62
16
0.21
6
8
32
60
CSK35
35
72
17
0.3
8
10
37.4
69.5
CSK40
40
80
22
0.5
10
12
43.2
77
CSK305
25
62
17
0.25
6
8
27
60
CSK306
30
72
19
0.38
6
8
32
69.5
CSK12-2RS
12
32
14
0.05
2
4
13.2
31.4
CSK15-2RS
15
35
16
0.07
2
5
16.2
34.4
CSK17-2RS
17
40
17
0.09
2
5
18.2
39
CSK20-2RS
20
47
19
0.145
3
6
21.6
45.5
CSK25-2RS
25
52
20
0.175
6
8
27
50
CSK30-2RS
30
62
21
0.27
6
8
32
60
CSK35-2RS
35
72
22
0.4
8
10
37.4
69.5
CSK40-2RS
40
80
27
0.6
10
12
43.2
77
