Home > Industrial Equipment & Components > Bearing > Taper Roller Bearing > NTN HM88542/HM88510LLU Taper Roller Bearing For Electric Welding Machine

NTN HM88542/HM88510LLU Taper Roller Bearing For Electric Welding Machine

Kenworth Machinery Equipment (Shandong) Co., Ltd.
NTN HM88542/HM88510LLU Taper Roller Bearing For Electric Welding Machine thumbnail-1
NTN HM88542/HM88510LLU Taper Roller Bearing For Electric Welding Machine thumbnail-2
NTN HM88542/HM88510LLU Taper Roller Bearing For Electric Welding Machine thumbnail-3
NTN HM88542/HM88510LLU Taper Roller Bearing For Electric Welding Machine thumbnail-4
NTN HM88542/HM88510LLU Taper Roller Bearing For Electric Welding Machine thumbnail-5
NTN HM88542/HM88510LLU Taper Roller Bearing For Electric Welding Machine photo-1

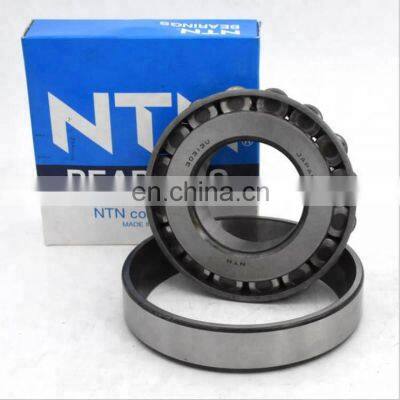

NTN HM88542/HM88510LLU Taper Roller Bearing For Electric Welding Machine photo-2
NTN HM88542/HM88510LLU Taper Roller Bearing For Electric Welding Machine photo-3

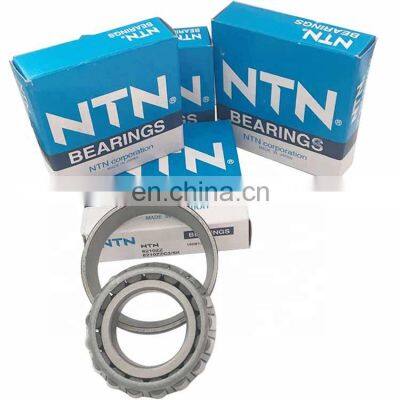

NTN HM88542/HM88510LLU Taper Roller Bearing For Electric Welding Machine photo-4
NTN HM88542/HM88510LLU Taper Roller Bearing For Electric Welding Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2006
Annual Export Value:
US$1 Million - US$1.5 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
Product name
NTN HM88542/HM88510LLU Taper Roller Bearing For Electric Machine
Bearing Type
NTN Taper Roller Bearing
Size
31x73x29mm
Mass
0.6kg
Application
Machinery
Feature
Long Life
Certificate
ISO/CO,etc.
Taper roller bearing are generally used to support combined load mainly consisting of radial load. Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preloaded mounting can be made. Taper roller bearings have tapered inner and outer ring raceways, The tapered roller is in the middle of the two raceways. This kind of bearings is usually separatable, namely the retainer, inner ring and outer ring can be installed apart. They can withstand immense radial direction load and certain axial load. They are designed in different sizes and styles to meet all kinds of functions.
Bearing Numbers
Bearing Number
Dimensions(mm)
KA11020/11020Z
23.813×590.53×20.32
HM88542/HM88510
31.75×73.025×29.37
KA11410/11410Z
39.688×79.375×31.242
HM89440/HM89410
31.75×76.2×29.37
LM11749/LM11710
17.462×28.5×14.605
HM89443/HM89410
33.338×76.2×29.37
LM11949/LM11910
19.05×45.237×15.49
HM89444/HM89410
33.338×76.2×29.37
M12649/M12610
21.43×50.005×17.526
HM89446/HM89446
34.925×76.2×29.37
M12648/M12610
22.225×50.005×17.526
HM89446/HM89410
34.925×76.2×29.37
LM12748/LM12710
21.43×45.237×15.494
HM88649/HM88610
34.93×72.23×25.4
LM12749/LM12711
21.979×45.975×15.494
HM89449/HM89411
36.512×76.2×29.37
LM29748/LM29748
38.1×65.088×18.034
HM89449/HM803110
36.513×76.2×29.37
LM29749/LM29710
38.1×65.088×18.034
EE107057/EE107105
146.05×268.288×74.612
LM29748/LM29710
38.1×65.088×18.034
EE107060/EE107105
152.4×168.288×74.612
LM29749/LM29711
38.1×65.088×19.812
LM102949/LM102911
45.242×82.55×21.59
KLM29749/KLM29710
38.1×65.088×18.288
LM102949/LM102910
50×82×21.98
LM48548A/LM48510
34.925×58.088×18.034
LM104949/JLM104910
50.8×82×21.975
LM48548/LM48510A
34.925×65.088×18.034
LM104949/LM104910
50.8×82.55×21.59
LM48548/LM48510
34.925×65.088×18.084
LM104949/LM104911
50.8×82.55×21.59
LM48549X/LM48510
34.925×65.088×18.288
LM104949E/LM104911
50.8×82.55×21.59
LM48548/LM48511A
34.925×65.088×21.082
LM104949/LM104911A
50.8×82.55×25
LM67048/LM67010
31.75×59.131×15.878
LM104949/LM104912
50.8×82.931×21.59
LM67049A/LM67010
31.75×59.13×16.75
JLM104948/JM104910
50×82×21.5
L68149/L68110
34.981×59.131×15.875
JLM104948-N/JLM104910
50×82×21.5
L68149/L68111
34.988×59.975×15.875
JLM104948/JLM104910
50×82×21.98
JL68145/JL68111
35×60×15.875
KJLM104948/KJLM104910
50×82×21.976
JL68149/JL68111-Z1
35×60×16.764
EE128111/EE128160
280.192×406.4×69.85
JL69349/JL69310
38×63×17
EE132084/EE132125
206.375×317.5×53.975
LM68149/LM68110
35.001×59.131×16.764
EE130851/EE131400
215.9×355.6×69.85
LM68149/LM68111
35.001×59.131×16.764
EE130889/EE131400
225.425×355.6×69.85
LM78349/LM48510A
34.988×61.973×17
EE130902/EE131400
228.6×355.6×69.85
LM78349/LM78310
35×62×16.65
EE134102/EE134143
260.35×365.125×58.738
M84249/M84210
25.4×59.53×23.368
EE170950/EE171436
241.3×365.049×50.8
M86643/M86610
25.4×64.292×21.433
HM212044/HM212011
60.325×122.238×38.1
M86647/M86610
28.575×64.292×21.433
HM212044/HM212010
60.325×122.238×38.1
M86649/M86610
30.162×64.292×21.433
HM212046/HM212011
63.5×122.238×38.1
M86649A/M86610A
30.163×64.292×21.5
HM212047/HM212010
63.5×122.238×38.1
M86648A/M86610
30.955×64.292×21.433
HM212047/HM212011
63.5×122.238×38.1
M88048/M88010
33.338×68.262×22.225
HM212017/HM212011
63.5×122.238×38.1
