Home > Industrial Equipment & Components > Bearing > Pillow Block Bearing > SNLN 3024 + 23024 CCK/W33 + H 3024 Split Plummer Pillow Block Housing SNLN3024 SNL3024 H3024 TSN3024S + ASNH 524-620
SNLN 3024 + 23024 CCK/W33 + H 3024 Split Plummer Pillow Block Housing SNLN3024 SNL3024 H3024 TSN3024S + ASNH 524-620
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2003
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SNLN 3034 Split Plummer Pillow Block Housing SNLN3034 SNL3034 23034 CCK/W33 H3034 TSN3034S + ETS3034NegotiableMOQ: 1 -
SN3024 Plummer Pillow Block Bearing Housing SN3024 SN3034 SN3036 SN3038NegotiableMOQ: 1
-
SN SNL Series Split Plummer Block Housing SN524 Heavy Duty Plummer Housing SNL524 SNL524-620NegotiableMOQ: 1
-
SNL524 Split Plummer Block Bearing Housing Units SNL524-620 + 22224 K +H3124NegotiableMOQ: 1
-
304 Stainless Steel PA Pillow Block Ball Bearing Housing PA205 SUC205-14 SUCPA205-15 SUCPA205-16 SUCPA205NegotiableMOQ: 1
Product Description
SNLN 3024 Split plummer Pillow Block Housing SNLN3024 SNL3024 23024 CCK/W33 H3024 TSN3024S+ASNH 524-620
Split plummer block housings
SNLN 30 series
SNLN 30 series
SNLN 30 plummer (pillow) block housings
are robust and versatile housings. They are designed for bearings in the 30 dimension series, and can also accommodate some bearings in the 40 dimension series for mounting on a cylindrical shaft seat. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling costeffective bearing arrangements to be made.
For SNLN 30 plummer (pillow) block housings,
each of the following items must be ordered
separately:
* housing
* seals
* end cover
* locating rings
* bearing
* adapter sleeve
Order example
Two plummer block housings with four-lip
seals are required for two 23024 CCK/W33
spherical roller bearings on H 3024 adapter
sleeves. One housing will accommodate the
non-locating bearing at the end of the shaft.
The other housing will accommodate the
locating bearing and a through shaft.
The following items should be ordered (in
addition to the bearings and adapter sleeves):
* 2 housings SNLN 3024
* 2 four-lip seal packs TSN 3024
(each pack contains two seals)
* 1 end cover ASNH 524-620
* 2 locating rings FRB 12/180
bearing name |
SNLN3024 Split plummer Pillow Block Housing SNLN3024 +23024 CCK/W33+H 3024 +TSN3024S+ASNH 524-620 |
Material : |
bearing : chrome steel housing : cast iron
|
bearing |
23024 CCK/W33 |
adapter sleeve |
H 3024 |
locating ring |
2 x FRB 12/180 |
email |
lbc001 @landlionbearing.com |
shaft |
110mm |

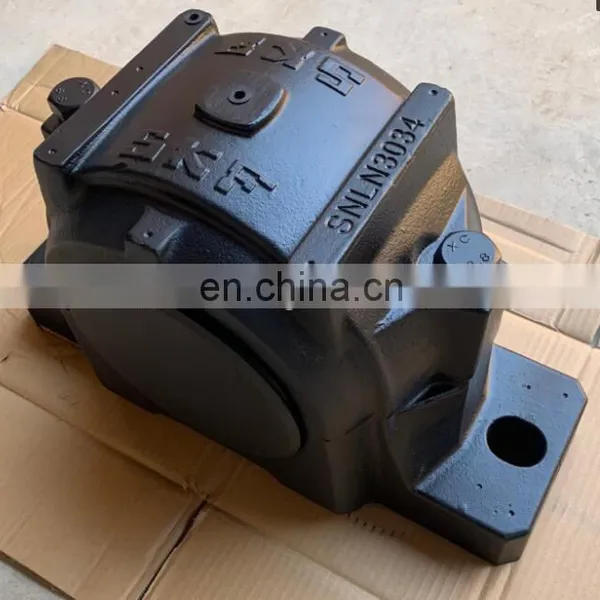

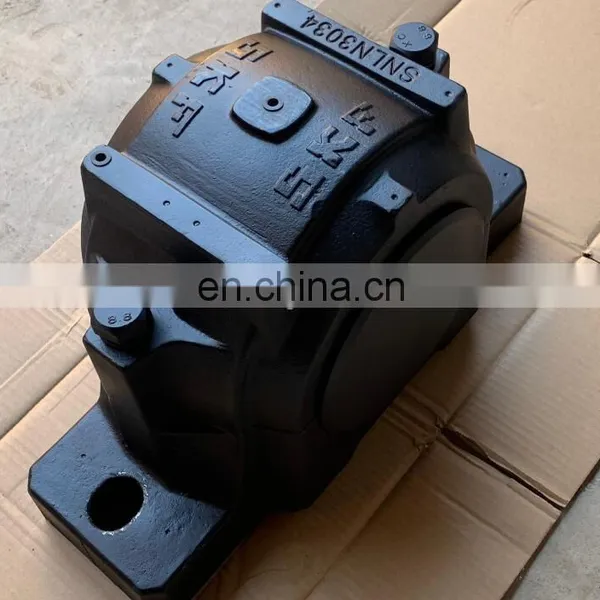

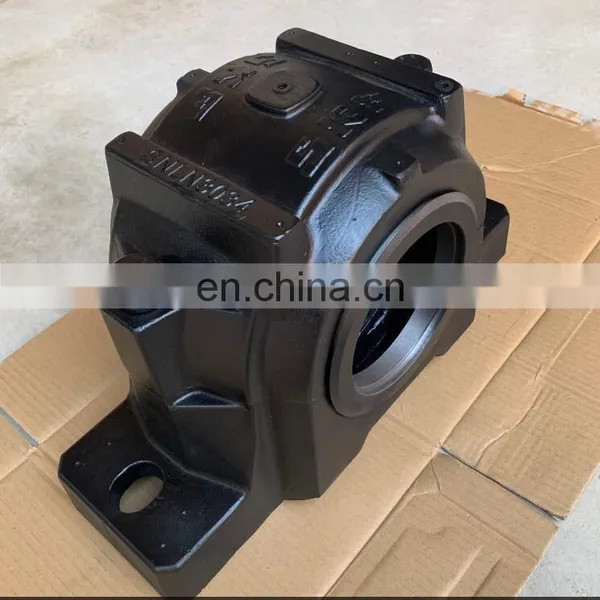

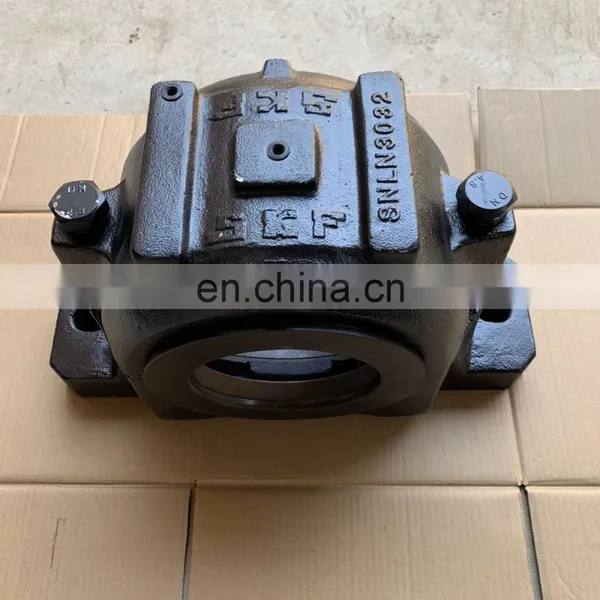

Detailed Images
SNLN3024 Split plummer Pillow Block Housing SNLN3024 +23024 CCK/W33+H 3024 TSN3024S+2 x ASNH 524-620
pillow block ball bearing type :
2 bolt Flange bearings units
3 bolt Flange bearings units
4-Bolt Flange Bearing Units
Take -up bearings
insert bearings
Related Products
Size Information
Large SNL plummer block housings design
Main Products
Certifications

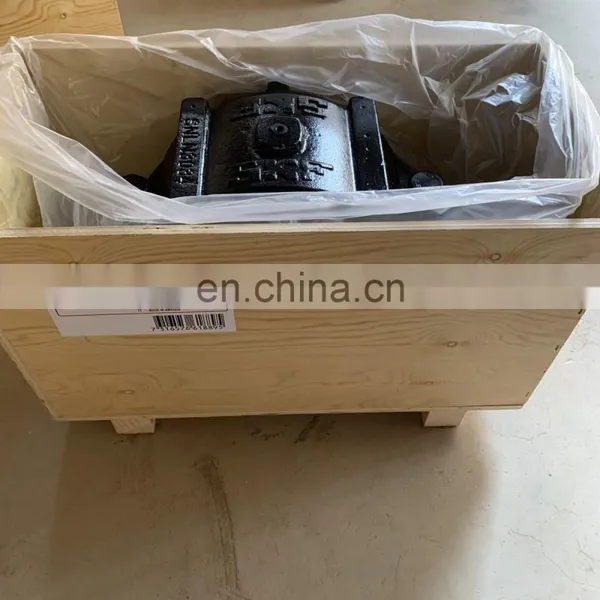

Product packaging
Packing ：
1. Industrial packing
2. Single box +carton +pallets /case
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
Application
Factory
Company introduction
LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and trader .
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
