PWTR4090-2RS Factory Price Track Roller Bearing PWTR4090

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

PWTR4090-2RS-XL yoke type track roller bearing PWTR4090-2RS PWTR4090

Technical Data

Inside Diameter (mm):40

Outside Diameter (mm):90

Width (mm):32

Axial Guidance:with axial guidance

Ring Material:Chrome Steel

Seal:2RS
Rolling Element Material:Chrome Steel

Cage Material:Sheet Steel

Inner Ring:yes

Product weight:1,129 Kg
Yoke type track roller
Yoke type track rollers PWTR..-2RS, full complement cylindrical roller set, with axial guidance, lip seals on both sides NATR - with axial guidance, gap seals on both sides NATV - full complement needle roller set, with axial guidance, gap seals on both sides NATR...PP - with axial guidance, axial plain washers on both sides NATV...PP - full complement needle roller set, with axial guidance, axial plain washers on both sides Cylindrical outer ring NATR...X - with axial guidance, gap seals on both sides NATV...X - full complement needle roller set, with axial guidance, gap seals on both sides NATR...PPX - with axial guidance, axial plain washers on both sides NATV...PPX - full complement needle roller set, with axial guidance, axial plain washers on both sides Code of Yoke Cam Roller and Cam Followers

Cam Followers are manufactured with needle bearings that can accept radial loads yet can't accommodate thrst loading.Can substitute the brands like,IKO,THK

name	Yoke type Track Roller Bearings PWTR4090-2RS
Model	PWTR4090-2RS-XL bearing
ID	40mm
OD	90mm
B	32mm
weight	1.129kg
Application	Automotive, rolling mill, mining, metallurgical, skateboard etc.

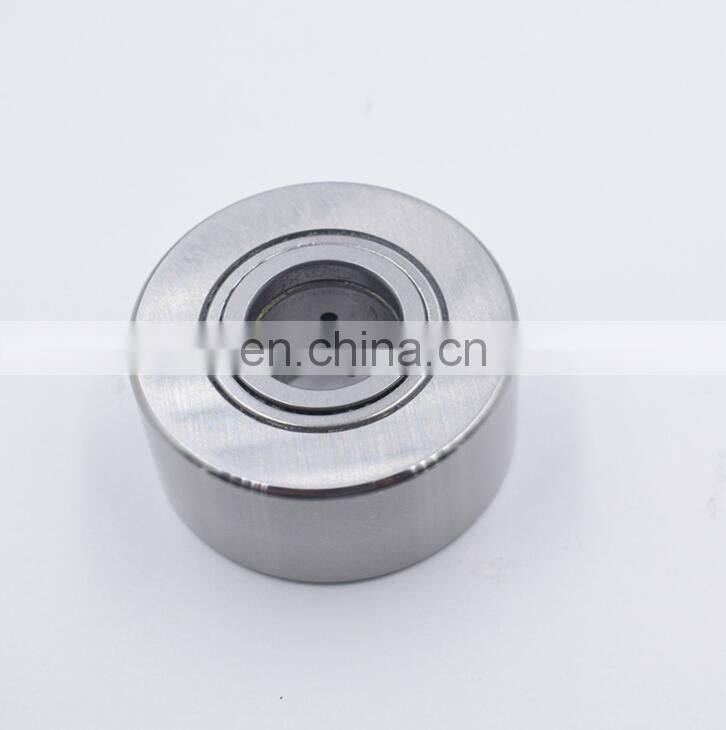

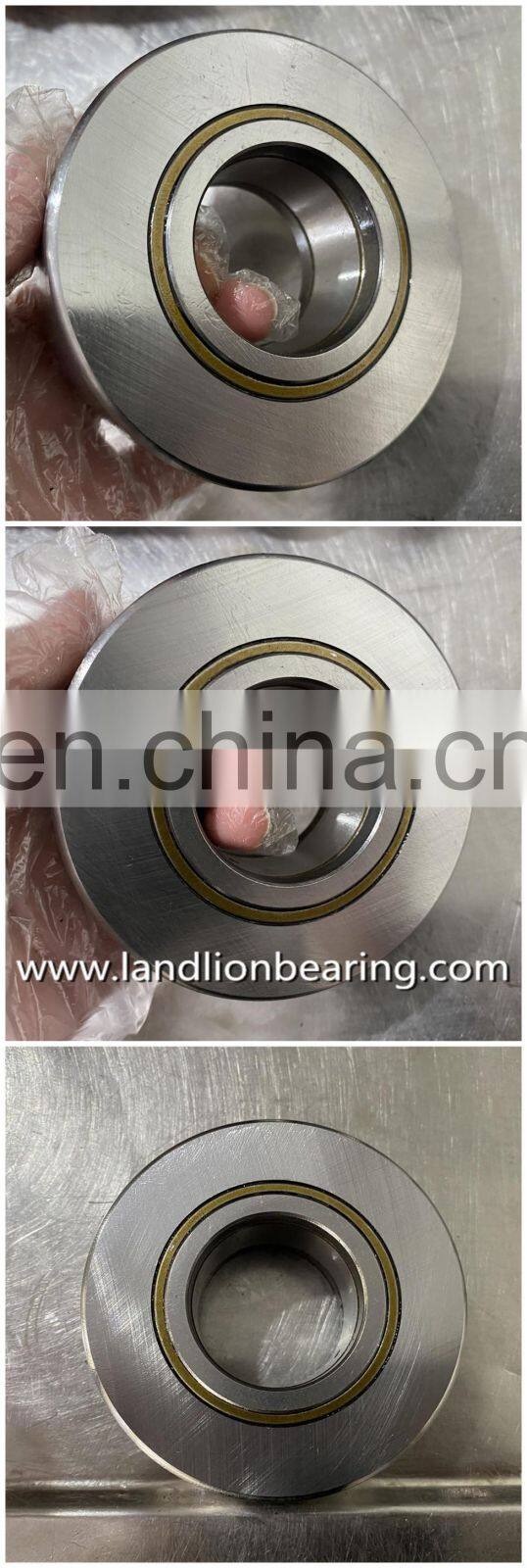

Details Images

PWTR4090-2RS-XL yoke type track roller bearing PWTR4090-2RS PWTR4090.2RS

Outside	Designation	Mass	Dimensions (mm)							Basic load ratings		Limiting
Diameter	Designation	Mass			d	D	B	C	Dinamic	Static	Speed
15	NUTR15	99	15	35	19	18	15000	16800	6500
15		NUTR1542	158	15	42	19	18	18100	21900	6500
17	NUTR17	147	17	40	21	20	18400	22600	5500
17		NUTR1747	200	17	47	21	20	21300	28000	5500
20	NUTR20	245	20	47	25	24	28000	35000	4200
20		NUTR2052	321	20	52	25	24	31500	41000	4200
25	NUTR25	281	25	52	25	24	29000	37500	3400
25		NUTR2562	450	25	62	25	24	35500	50000	3400
30	NUTR30	465	30	62	29	28	40000	50000	2600
30		NUTR3072	697	30	72	29	28	47500	64000	2600
35	NUTR35	630	35	72	29	28	44500	60000	2100
35		NUTR3580	838	35	80	29	28	51000	72000	2100
40	NUTR40	816	40	80	32	30	55000	75000	1600
40		NUTR4090	1129	40	90	32	30	66000	95000	1600
45	NUTR45	883	45	85	32	30	56000	78000	1400
45		NUTR45100	1396	45	100	32	30	71000	106000	1400
50	NUTR50	950	50	90	32	30	57000	81000	1300
50		NUTR50110	1690	50	110	32	30	76000	120000	1300

Related Products

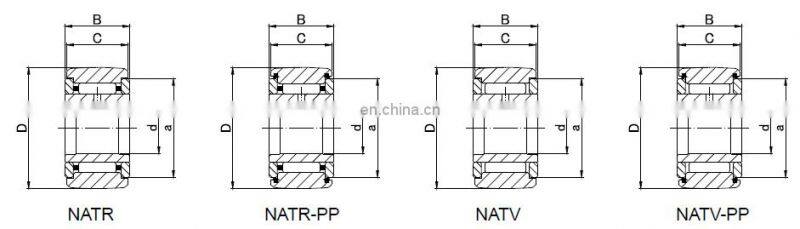

Crowned outer ring			Cylindrical outer ring			Dimensions(mm)					Mass
without seal	with seal	without seal	with seal
NATR	NATR-PP	NATR-X	NATR-PPX	d	D	B	C	a	g
NATR5	NATR5	NATR5X	NATR5PPX	5	16	12	11	12	14.5
NATV5	NATV5	NATV5X	NATV5PPX	5	16	12	11	12		15.1
NATR6	NATR6PP	NATR6X	NATR6PPX	6	19	12	11	14	20.5
NATV6	NATV6PP	NATV6X	NATV6PPX	6	19	12	11	14		21.5
NATR8	NATR8PP	NATR8X	NATR8PPX	8	24	15	14	17.5	41.5
NATV8	NATV8PP	NATV8X	NATV8PPX	8	24	15	14	17.5		42.5
NATR10	NATR10PP	NATR10X	NATR10PPX	10	30	15	14	23.5	64.5
NATV10	NATV10PP	NATV10X	NATV10PPX	10	30	15	14	23.5		66.5
NATR12	NATR12PP	NATR12X	NATR12PPX	12	32	15	14	25.5	71
NATV12	NATV12PP	NATV12X	NATV12PPX	12	32	15	14	25.5		73
NATR15	NATR15PP	NATR15X	NATR15PPX	15	35	19	18	29	102
NATV15	NATV15PP	NATV15X	NATV15PPX	15	35	19	18	29		106
NATR17	NATR17PP	NATR17X	NATR17PPX	17	40	21	20	32.5	149
NATV17	NATV17PP	NATV17X	NATV17PPX	17	40	21	20	32.5		155
NATR20	NATR20PP	NATR20X	NATR20PPX	20	47	25	24	38	250
NATV20	NATV20PP	NATV20X	NATV20PPX	20	47	25	24	38		255
NATR25	NATR25PP	NATR25X	NATR25PPX	25	52	25	24	43	285
NATV25	NATV25PP	NATV25X	NATV25PPX	25	52	25	24	43		295
NATR30	NATR30PP	NATR30X	NATR30PPX	30	62	29	28	50.5	470
NATV30	NATV30PP	NATV30X	NATV30PPX	30	62	29	28	50.5		485
NATR35	NATR35PP	NATR35X	NATR35PPX	35	72	29	28	53.5	640
NATV35	NATV35PP	NATV35X	NATV35PPX	35	72	29	28	53.5		655
NATR40	NATR40PP	NATR40X	NATR40PPX	40	80	32	30	61.5	845
NATV40	NATV40PP	NATV40X	NATV40PPX	40	80	32	30	61.5		865
NATR45	NATR45PP	NATR45X	NATR45PPX	45	85	32	30	66.5	915
NATV45	NATV45PP	NATV45X	NATV45PPX	45	85	32	30	66.5		935
NATR50	NATR50PP	NATR50X	NATR50PPX	50	90	32	30	76	980
NATV50	NATV50PP	NATV50X	NATV50PPX	50	90	32	30	76		1010

Certifications

Main Products

Product packaging

Packing ： 1. Industrial packing 2. Single box +carton +pallets /case 3. According to customers demand Delivery time : 1. Generally after payment: within 3 days . 2. If need produce , about 30 days Payment A less USD1000 , 100% T/T in advance . 1. More USD1000 , 30% T/T in advance , 70%T/T before shipment

Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
