Home > Products > Needle Roller Bearing > U groove Track Roller Bearing LFR 5308-50 R 5308-50 ZZ LFR5308-50KDD LFR 5308-50 KDD bearing
U groove Track Roller Bearing LFR 5308-50 R 5308-50 ZZ LFR5308-50KDD LFR 5308-50 KDD bearing
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
IKO NAST25ZZ cam followers Nast25ZZ track roller bearing NAST 25ZZ
-
Track Roller Bearing RC-3565.5 18x40x54.5
-
cyr6s cam followers and track roller bearing CYR 6 S inch needle roller bearing CRY28VUU
-
IKO NART20UUR yoke track roller bearing Roller followers NART20VUUR NART20R
-
KRV72 Cam followers bearing KRV 72 PP Stud Type Track Roller Bearing KRV72PP
-
KRV80 Stud Type Track Roller bearing KRV80PP
Product Description
Product Description

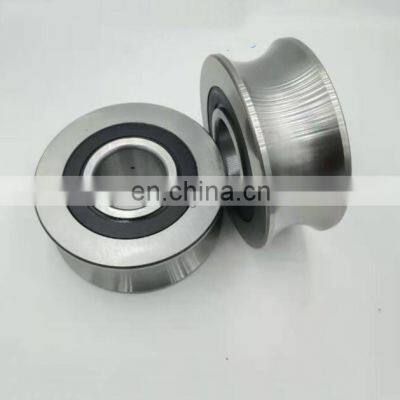

U grooved track roller bearing LFR5308-50KDD LFR5308-50NPP R5308-50-ZZ R5308-50-2RS
■Track rollers with profiled outer ring LFR5308-50
■d: 40.0mm
■Dmax:110.0mm
■B:46.0mm
■C:44.0mm
■AT:72.5.0mm
■Da: 101.70mm Rolling contact diameter
■ds: 50mm
■rmin: 1.1mm
■mass: 1400 g
■load capacity:
Crw:54000 N
CorW: 40500N
Fr: 69000N
For:81000N
■Replaces:LFR5308-50KDD, LFR5308-50NPP,LFR5308-50-2Z
■d: 40.0mm
■Dmax:110.0mm
■B:46.0mm
■C:44.0mm
■AT:72.5.0mm
■Da: 101.70mm Rolling contact diameter
■ds: 50mm
■rmin: 1.1mm
■mass: 1400 g
■load capacity:
Crw:54000 N
CorW: 40500N
Fr: 69000N
For:81000N
■Replaces:LFR5308-50KDD, LFR5308-50NPP,LFR5308-50-2Z
name | Track Guide Ball Bearing LFR5308-50KDD |
Model | LFR5308-50KDD LFR5308-50NPP R5308-50-ZZ R5308-50-2RS |
ID | 40mm |
OD | 110mm |
B | 46 mm |
weight | 1.4kg |
Application | Automotive, rolling mill, mining, metallurgical, skateboard etc. |
contact | 86-18710180456 |
Details Images
U grooved track roller bearing LFR5308-50KDD LFR5308-50NPP R5308-50-ZZ R5308-50-2RS
model | weight | size | ||||||
LSBC | ≈(g) | dw | d | D | C | B | A | rs |
LFR 50/4 NPP | 3.5 | 5 | 4 | 13 | 6 | 7 | 8.04 | 0.2 |
LFR 50/5-4 KDD | 7.5 | 4 | 5 | 16 | 7 | 8 | 9 | 0.2 |
LFR 50/5-4 NPP | 7.5 | 4 | 5 | 16 | 7 | 8 | 9 | 0.2 |
LFR 50/5 KDD | 8 | 6 | 5 | 17 | 7 | 8 | 10.5 | 0.2 |
LFR 50/5 NPP | 8 | 6 | 5 | 17 | 7 | 8 | 10.5 | 0.2 |
LFR 50/8 KDD | 24 | 6 | 8 | 24 | 11 | 11 | 14 | 0.3 |
LFR 50/8 NPP | 24 | 6 | 8 | 24 | 11 | 11 | 14 | 0.3 |
LFR 50/8-8 KDD | 24 | 8 | 8 | 24 | 11 | 11 | 14.8 | 0.3 |
LFR 50/8-8 NPP | 24 | 8 | 8 | 24 | 11 | 11 | 14.8 | 0.3 |
LFR 30/8 KDD | 31 | 10 | 8 | 26.8 | 11 | 13 | 16.7 | 0.3 |
LFR 30/8 NPP | 31 | 10 | 8 | 26.8 | 11 | 13 | 16.7 | 0.3 |
LFR 5201 NPP | 68 | 10 | 12 | 35 | 15.9 | 15.9 | 20.7 | 0.3 |
LFR 5301 KDD | 130 | 10 | 12 | 42 | 19 | 19 | 24 | 0.6 |
LFR 5301 NPP | 130 | 10 | 12 | 42 | 19 | 19 | 24 | 0.6 |
LFR 5301-20 KDD | 125 | 20 | 12 | 42 | 19 | 19 | 28 | 0.6 |
LFR 5301-20 NPP | 125 | 20 | 12 | 42 | 19 | 19 | 28 | 0.6 |
LFR 5302 KDD | 163 | 10 | 15 | 47 | 19 | 19 | 26.7 | 1 |
LFR 5302 NPP | 163 | 10 | 15 | 47 | 19 | 19 | 26.7 | 1 |
LFR 5201-12 KDD | 68 | 12 | 12 | 35 | 15.9 | 15.9 | 21.8 | 0.3 |
LFR 5201-12 NPP | 68 | 12 | 12 | 35 | 15.9 | 15.9 | 21.8 | 0.3 |
LFR 5201-14 KDD | 107 | 14 | 12 | 39.9 | 18 | 20 | 24 | 0.3 |
LFR 5201-14 NPP | 107 | 14 | 12 | 39.9 | 18 | 20 | 24 | 0.3 |
LFR 5201-10.40 KDD | 115 | 10 | 12 | 39.9 | 18 | 20 | 22 | 0.3 |
LFR 5201-10.40 NPP | 115 | 10 | 12 | 39.9 | 18 | 20 | 22 | 0.3 |
LFR 5204-16 NPP* | 195 | 16 | 20 | 52 | 20.6 | 22.6 | 31.5 | 0.6 |
LFR 5206-20 KDD* | 435 | 20 | 25 | 72 | 23.8 | 25.8 | 41 | 0.6 |
LFR 5206-20 NPP* | 435 | 20 | 25 | 72 | 23.8 | 25.8 | 41 | 0.6 |
LFR 5206-25 KDD* | 425 | 25 | 25 | 72 | 23.8 | 25.8 | 43.5 | 0.6 |
LFR 5206-25 NPP* | 425 | 25 | 25 | 72 | 23.8 | 25.8 | 43.5 | 0.6 |
LFR 5207-30 KDD* | 660 | 30 | 30 | 80 | 27 | 29 | 51 | 1 |
LFR 5207-30 NPP* | 660 | 30 | 30 | 80 | 27 | 29 | 51 | 1 |
LFR 5208-40 KDD* | 1360 | 40 | 40 | 98 | 36 | 38 | 62.5 | 1 |
LFR 5208-40 NPP* | 1360 | 40 | 40 | 98 | 36 | 38 | 62.5 | 1 |
LFR 5308-50 KDD* | 1400 | 50 | 40 | 110 | 44 | 46 | 72.5 | 1.1 |
LFR 5308-50 NPP* | 1400 | 50 | 40 | 110 | 44 | 46 | 72.5 | 1.1 |
Related Products
Product packaging
Packing ：
1. Industrial packing
2. Single box +carton +pallets /case
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
Application
Factory
Company introduction
LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and trader .
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
